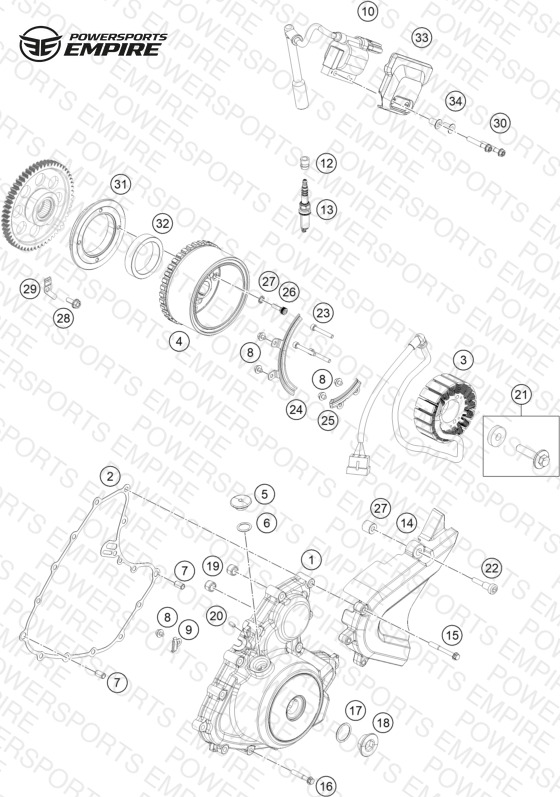

IGNITION SYSTEM
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 2 | 93730040000 GASKET IGNITION COVER | GASKET IGNITION COVER | 1 | $6.80 | Available to order | 1 |
| 3 | 93739004000 Stator cpl. | Stator cpl. | 1 | $104.06 | Available to order | 1 |
| 4 | 90839005000 ROTOR CPL. | ROTOR CPL. | 1 | $157.95 | Available to order | 1 |
| 5 | 90130002010 PLUG INCL. O-RING | PLUG INCL. O-RING | 1 | $4.99 | Available to order | 1 |
| 6 | J770015824 O-RING 15,8X2,4 | O-RING 15,8X2,4 | 1 | $1.99 | Available to order | 1 |
| 7 | 90130024000 PIN DOWEL 8X6,4X14MM | PIN DOWEL 8X6,4X14MM | 2 | $1.99 | Available to order | 2 |
| 8 | J025060083S HH COLLAR SCREW M5X6 | HH COLLAR SCREW M5X6 | 5 | $1.99 | Available to order | 5 |
| 9 | 90230062000 BRACKET HARNESS MAGNETO | BRACKET HARNESS MAGNETO | 1 | $2.99 | Available to order | 1 |
| 12 | 90139093001 RUBBER GASKET SPARK PLUG | RUBBER GASKET SPARK PLUG | 1 | $2.99 | Available to order | 1 |
| 13 | 90239093000 SPARK PLUG M12X1,25 | SPARK PLUG M12X1,25 | 1 | $10.15 | Available to order | 1 |
| 14 | 90230060002 front sprocket cover | front sprocket cover | 1 | $15.70 | Available to order | 1 |
| 15 | 0025060506 HH collar screw M6x50 TX30 | HH collar screw M6x50 TX30 | 3 | $3.99 | Available to order | 3 |
| 16 | J025060353 Hex collar screw M6X35 | Hex collar screw M6X35 | 11 | $1.99 | Available to order | 11 |
| 17 | J770024015 O-RING 24X2,5 | O-RING 24X2,5 | 3 | $3.99 | Available to order | 3 |
| 18 | 90230094000 PLUG SCREW M24X1,5 | PLUG SCREW M24X1,5 | 1 | $2.99 | Available to order | 1 |
| 19 | 90240018000 BUSH STARTER SHAFT | BUSH STARTER SHAFT | 2 | $4.99 | Available to order | 2 |
| 21 | 90239005050 ROTOR SCREW CPL. | ROTOR SCREW CPL. | 1 | $6.69 | Available to order | 1 |
| 22 | 0024060251 Hex collar screw M6x25 ISA30 b | Hex collar screw M6x25 ISA30 b | 1 | $1.99 | Available to order | 1 |
| 23 | 90530002010 SOCKET HEAD BOLT M5X0,8X40 | SOCKET HEAD BOLT M5X0,8X40 | 3 | $1.99 | Available to order | 3 |
| 24 | 90230058000 PLATE HARNESS MAGNETO | PLATE HARNESS MAGNETO | 1 | $3.99 | Available to order | 1 |
| 25 | 93730059000 PLATE HARNESS 2 | PLATE HARNESS 2 | 1 | $1.99 | Available to order | 1 |
| 26 | 90130001001 SOCKET HEAD SCREW M6X20 | SOCKET HEAD SCREW M6X20 | 1 | $0.99 | Available to order | 1 |
| 27 | 28503096010 Bushing sprocket cover | Bushing sprocket cover | 1 | $7.47 | Available to order | 1 |
| 28 | 90130059000 HH COLLAR SCREW M6X16 | HH COLLAR SCREW M6X16 | 2 | $1.20 | Available to order | 2 |
| 29 | 90240020002 RETAINER GEAR STARTER | RETAINER GEAR STARTER | 1 | $1.99 | Available to order | 1 |
| 30 | 0025060356 HH collar screw M6x35 TX30 | HH collar screw M6x35 TX30 | 2 | $3.99 | Available to order | 2 |
| 31 | 90130001000 SUPPORT FREEWHEEL CLUTCH | SUPPORT FREEWHEEL CLUTCH | 1 | $44.65 | Available to order | 1 |
| 32 | 90140026000 FREEWHEEL CLUTCH | FREEWHEEL CLUTCH | 1 | $120.34 | Available to order | 1 |
| 33 | 28539006050 ignition coil cover | ignition coil cover | 1 | $8.35 | Available to order | 1 |
| 34 | 28539006040 bushing, ignition coil cover | bushing, ignition coil cover | 2 | $4.99 | Available to order | 2 |
| 10 | 90239006044 ignition coil cpl. with plug | ignition coil cpl. with plug | 1 | $46.41 | Available to order | 1 |
| 1 | 90230602044 Magneto Cover with Plug | Magneto Cover with Plug | 1 | $92.61 | Available to order | 1 |
| 20 | 90230066300 OIL NOZZLE | OIL NOZZLE | 1 | $1.99 | Available to order | 1 |
