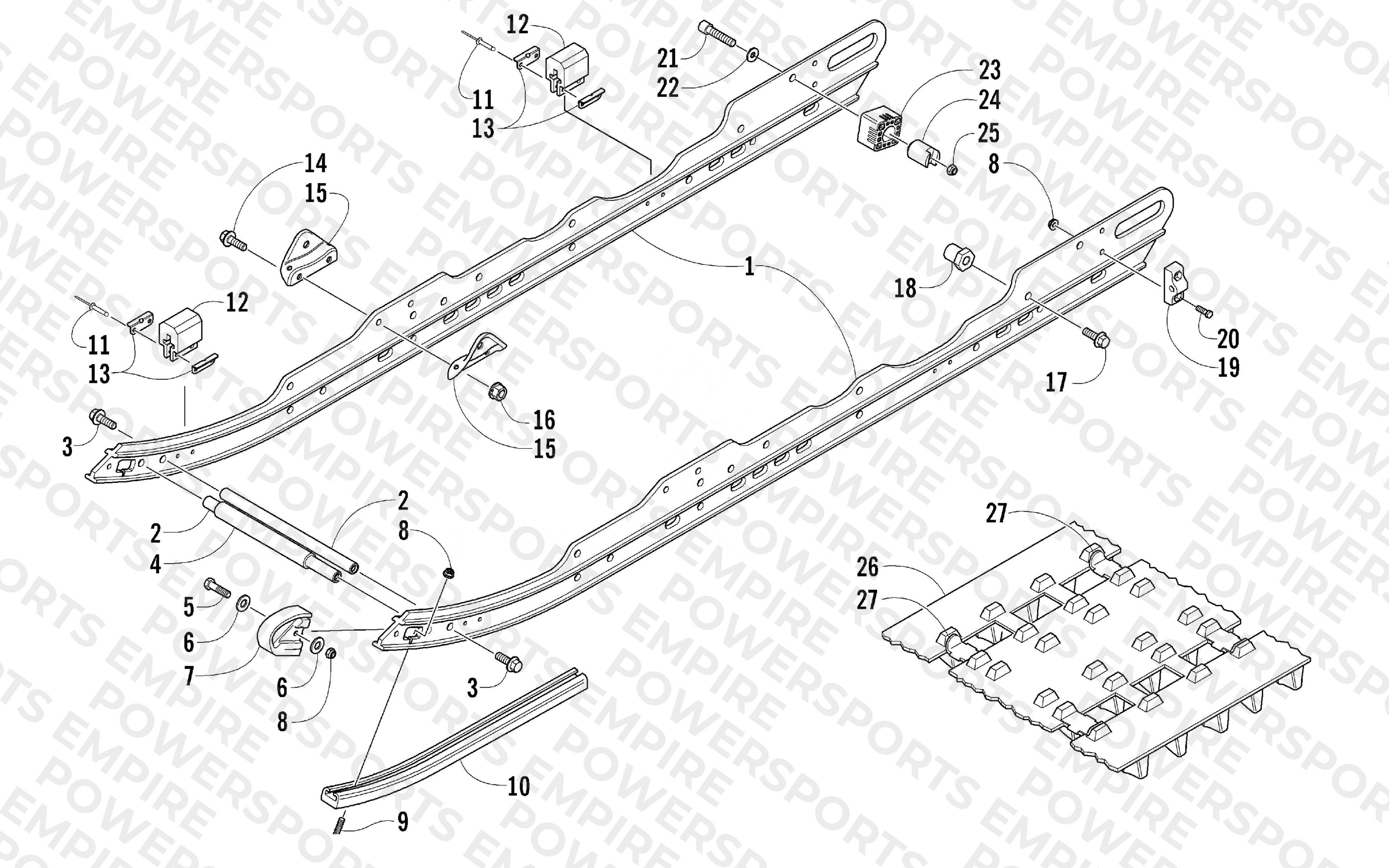

SLIDE RAILS AND TRACK ASSEMBLY
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 7999-235 Complete Skid Frame Assembly | Complete Skid Frame Assembly | 1 | — | Obsolete | View Details | |
| 1 | 3604-009 Rail, Formed | Rail, Formed | 2 | $289.95 | Available to order | 2 |
| 2 | 0604-930 Axle, Inner | Axle, Inner | 2 | $41.95 | Available to order | 2 |
| 3 | 1623-248 Screw, Cap | Screw, Cap | 4 | $13.69 | Available to order | 4 |
| 4 | 2604-281 Spacer | Spacer | 1 | $1.99 | Available to order | 1 |
| 5 | 8002-043 Screw, Cap | Screw, Cap | 2 | $0.71 | Available to order | 2 |
| 6 | 8050-217 Washer, Flat | Washer, Flat | 4 | $0.20 | Available to order | 4 |
| 7 | 2604-842 NOSEPIECE,RAIL-TAPERED | NOSEPIECE,RAIL-TAPERED | 2 | $33.95 | Obsolete | View Details |
| 8 | 8047-366 Nut, Lock | Nut, Lock | 8 | $0.50 | Available to order | 8 |
| 9 | 0123-859 Screw, Machine | Screw, Machine | 2 | $1.23 | Available to order | 2 |
| 10 | 2604-257 Wearstrip, Slide Rail-BLK | Wearstrip, Slide Rail-BLK | 2 | $43.95 | Available to order | 2 |
| 11 | 8060-633 Rivet, Blind - DH | Rivet, Blind - DH | 8 | $1.23 | Available to order | 8 |
| 12 | 0604-918 Pad, Shock | Pad, Shock | 4 | $14.89 | Available to order | 4 |
| 13 | 0604-967 Bracket, Retaining | Bracket, Retaining | 8 | $3.89 | Available to order | 8 |
| 14 | 8020-132 Screw, Cap | Screw, Cap | 4 | $1.43 | Out of Stock | Notify Me |
| 15 | 2604-593 Bracket, Mounting - Front Arm | Bracket, Mounting - Front Arm | 4 | $29.95 | Available to order | 4 |
| 16 | 8047-426 Nut, Hex | Nut, Hex | 4 | $0.71 | Available to order | 4 |
| 17 | 1623-427 Screw, Cap | Screw, Cap | 2 | $2.19 | Available to order | 2 |
| 18 | 2604-562 Bushing, Stop - Rear Arm | Bushing, Stop - Rear Arm | 2 | $7.39 | Out of Stock | Notify Me |
| 19 | 0704-352 Block | Block | 2 | $54.95 | Available to order | 2 |
| 20 | 8002-042 Screw, Cap | Screw, Cap | 4 | $0.50 | Available to order | 4 |
| 21 | 8005-676 Screw, Cap | Screw, Cap | 2 | $0.99 | Obsolete | View Details |
| 22 | 0623-044 Washer | Washer | 2 | $2.69 | Available to order | 2 |
| 23 | 2604-860 Block, Rear Arm Coupler-Large | Block, Rear Arm Coupler-Large | 2 | $18.59 | Available to order | 2 |
| 24 | 2604-046 Bushing, Coupler Block | Bushing, Coupler Block | 2 | $34.95 | Available to order | 2 |
| 25 | 8041-486 Nut, Hex - Thin Lock | Nut, Hex - Thin Lock | 2 | $0.50 | Available to order | 2 |
| 26 | 1602-997 TRACK,15X136X1.25 | TRACK,15X136X1.25 (inc. 27) | 1 | $813.95 | Obsolete | View Details |
| 27 | 2602-384 Clip, Wear | Clip, Wear | 36 | $3.89 | Available to order | 36 |
