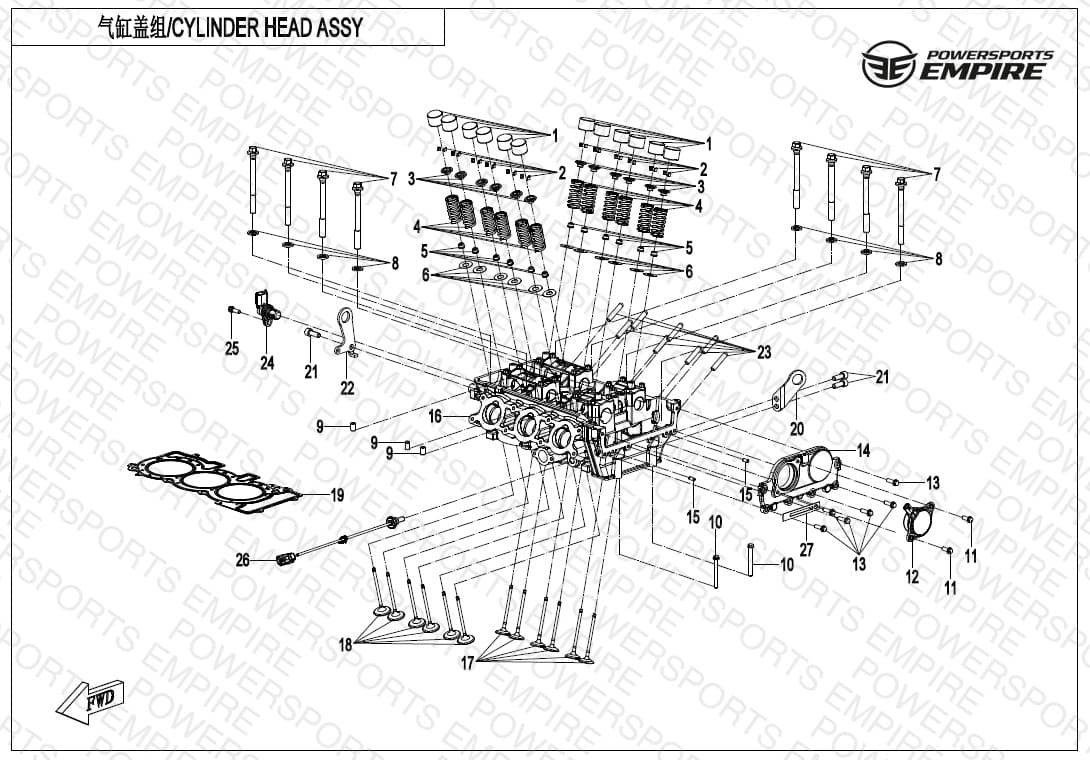

E02-2 — CYLINDER HEAD ASSY
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01-01 | 0700-022005-10100 TAPPET, t= 3.20 | TAPPET, t= 3.20 T=3.20 | 1 | $21.84 | Available to order | 1 |
| 01-02 | 0700-022005-10200 TAPPET t=3.22 | TAPPET t=3.22 T=3.22 | 1 | $21.84 | Available to order | 1 |
| 01-03 | 0700-022005-10300 TAPPET t=3.24 | TAPPET t=3.24 T=3.24 | 1 | $21.84 | Available to order | 1 |
| 01-04 | 0700-022005-10400 TAPPET t=3.26 | TAPPET t=3.26 T=3.26 | 1 | $21.84 | Available to order | 1 |
| 01-05 | 0700-022005-10500 TAPPET t=3.28 | TAPPET t=3.28 T=3.28 | 1 | $21.84 | Available to order | 1 |
| 01-06 | 0700-022005-10600 TAPPET t=3.30 | TAPPET t=3.30 T=3.30 | 1 | $21.84 | Available to order | 1 |
| 01-07 | 0700-022005-10700 TAPPET t=3.32 | TAPPET t=3.32 T=3.32 | 1 | $21.84 | Available to order | 1 |
| 01-08 | 0700-022005-10800 TAPPET t=3.34 | TAPPET t=3.34 T=3.34 | 1 | $21.84 | Available to order | 1 |
| 01-09 | 0700-022005-10900 TAPPET t=3.36 | TAPPET t=3.36 T=3.36 | 1 | $21.84 | Available to order | 1 |
| 02 | 0700-022004 COLLET,VALVE | COLLET,VALVE | 1 | $2.29 | Available to order | 1 |
| 03 | 0700-022003 RETAINER, VALVE SPRING | RETAINER, VALVE SPRING | 1 | $3.44 | Available to order | 1 |
| 04 | 0NYV-022018-1000 SPRING VALVE | SPRING VALVE | 1 | $3.44 | Available to order | 1 |
| 05 | 0700-022400-1000 SEAL RING SET, VALVE STEM | SEAL RING SET, VALVE STEM | 2 | $4.59 | Available to order | 2 |
| 06 | 0NYV-022017-1000 VALVE SPRING LOWER SEAT | VALVE SPRING LOWER SEAT | 1 | $1.25 | Available to order | 1 |
| 07 | 0TYV-022008-1003 CYLINDER HEAD BOLT | CYLINDER HEAD BOLT | 1 | $3.44 | Available to order | 1 |
| 08 | 0NYV-022016-3000 CYLINDER HEAD BOLT GASKET | CYLINDER HEAD BOLT GASKET | 2 | $2.29 | Available to order | 2 |
| 09 | 0DM0-022201-10000 DOWEL PIN | DOWEL PIN | 1 | $1.25 | Available to order | 1 |
| 10 | 0010-021018-0010 BOLT M6X55 | BOLT M6X55 | 6 | $1.25 | Available to order | 6 |
| 11 | 0010-090005-0010 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 12 | 0NYV-025300-3000 ELECTROMAGNET ASSY | ELECTROMAGNET ASSY | 1 | $91.99 | Available to order | 1 |
| 13 | 0010-023010-0010 BOLT M6X20 | BOLT M6X20 | 6 | $1.25 | Obsolete | View Details |
| 14 | 0NYV-022011-1000 TIMING CHAMBER COVER | TIMING CHAMBER COVER | 1 | $34.49 | Available to order | 1 |
| 15 | 30406-00500 ROLLER PIN P 5x11.8 | ROLLER PIN P 5x11.8 | 6 | $1.25 | Available to order | 6 |
| 16 | 0NYV-022200-1001 CYLINDER HEAD | CYLINDER HEAD | 1 | $879.99 | Obsolete | View Details |
| 17 | 0NYV-022013-1000 EXHAUST VALVE | EXHAUST VALVE | 1 | $25.29 | Out of Stock | Notify Me |
| 18 | 0NYV-022012-1000 INTAKE VALVE | INTAKE VALVE | 1 | $12.64 | Available to order | 1 |
| 19 | 0NYV-022100-1001 CYLINDER HEAD GASKET | CYLINDER HEAD GASKET | 1 | $34.49 | Available to order | 1 |
| 20 | 0NYV-022038-1000 FRONT HOOK | FRONT HOOK | 1 | $2.29 | Out of Stock | Notify Me |
| 21 | 30102-080020810 SCREW M8x20 | SCREW M8x20 | 6 | $1.25 | Available to order | 6 |
| 22 | 0NYV-022039-1000 REAR HOOK | REAR HOOK | 1 | $3.44 | Out of Stock | Notify Me |
| 23 | 0180-022003-00002 STUD | STUD M8x42 | 2 | $1.25 | Available to order | 2 |
| 24 | 0NYV-170600-1000 CAMSHAFT POSITION SENSOR | CAMSHAFT POSITION SENSOR | 1 | $68.99 | Out of Stock | Notify Me |
| 25 | 0010-023008-00001 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 26 | 0NYV-170100-3000 COOLANT TEMP SENSOR | COOLANT TEMP SENSOR | 1 | $34.49 | Available to order | 1 |
| 27 | 0180-014010 WIRE CLAMP | WIRE CLAMP | 6 | — | Obsolete | View Details |
