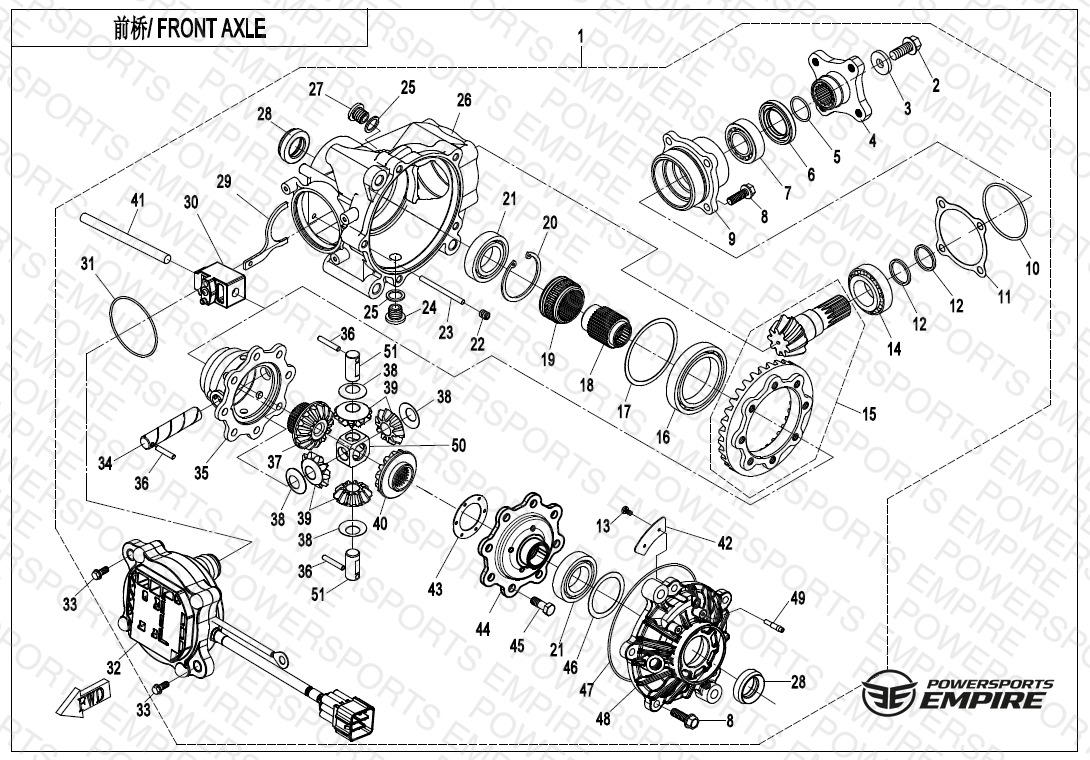

F31 — FRONT AXLE
Parts (76)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | Q830-310000-60000 FRONT GEAR CASE ASSY | FRONT GEAR CASE ASSY | 1 | $1099.99 | Out of Stock | Notify Me |
| 02 | 0GR0-062203 BOLTM10x1.25x20 | BOLTM10x1.25x20 M10x1.25x20 | 6 | $6.89 | Available to order | 6 |
| 03 | 0GR0-062204 WASHER10x27.5x4 | WASHER10x27.5x4 10x27.5x4 | 6 | $3.44 | Available to order | 6 |
| 04 | Q850-331002 COUPLER | COUPLER | 1 | $68.99 | Available to order | 1 |
| 05 | 0800-062205 O-RING 25x2 | O-RING 25x2 25x2 | 2 | $5.74 | Available to order | 2 |
| 06 | 0800-062204 OIL SEAL 35x50x7 | OIL SEAL 35x50x7 35x50x7 | 1 | $17.24 | Available to order | 1 |
| 07 | 30409-02500 BEARING | BEARING 33005(25x47x17) | 1 | $45.99 | Available to order | 1 |
| 08 | 0110-060011-0010 BOLT M8X28 | BOLT M8X28 M8x28 | 6 | $1.25 | Available to order | 6 |
| 09 | Q830-311002-00001 BEARING SEAT | BEARING SEAT | 1 | $45.99 | Available to order | 1 |
| 10 | Q830-310006-10000 O-RING | O-RING 55x2.5 | 1 | $6.89 | Available to order | 1 |
| 11-02 | Q830-310023-00100 ADJUSTING WASHER T=0.20 | ADJUSTING WASHER T=0.20 T=0.20 | 6 | $5.74 | Available to order | 6 |
| 11-01 | Q830-310023-00200 ADJUSTING WASHER T=0.30 | ADJUSTING WASHER T=0.30 T=0.30 | 6 | $5.74 | Available to order | 6 |
| 12-02 | Q830-311003-00100 ADJUSTING WASHER 32x25.4 T=2.10 | ADJUSTING WASHER 32x25.4 T=2.10 T=2.10 | 6 | $2.29 | Obsolete | View Details |
| 12-03 | Q830-311003-00200 ADJUSTING WASHER 32x25.4 T=2.20 | ADJUSTING WASHER 32x25.4 T=2.20 T=2.20 | 6 | $3.44 | Available to order | 6 |
| 12-04 | Q830-311003-00300 ADJUSTING WASHER 32x25.4 T=2.30 | ADJUSTING WASHER 32x25.4 T=2.30 T=2.30 | 6 | $3.44 | Available to order | 6 |
| 12-05 | Q830-311003-00400 ADJUSTING WASHER 32x25.4 T=2.40 | ADJUSTING WASHER 32x25.4 T=2.40 T=2.40 | 6 | $3.44 | Available to order | 6 |
| 12-06 | Q830-311003-00500 ADJUSTING WASHER 32x25.4 T=2.42 | ADJUSTING WASHER 32x25.4 T=2.42 T=2.42 | 6 | — | Obsolete | View Details |
| 12-07 | Q830-311003-00600 ADJUSTING WASHER 32x25.4 T=2.44 | ADJUSTING WASHER 32x25.4 T=2.44 T=2.44 | 6 | $3.44 | Available to order | 6 |
| 12-08 | Q830-311003-00700 ADJUSTING WASHER 32x25.4 T=2.46 | ADJUSTING WASHER 32x25.4 T=2.46 T=2.46 | 6 | — | Obsolete | View Details |
| 12-09 | Q830-311003-00800 ADJUSTING WASHER 32x25.4 T=2.48 | ADJUSTING WASHER 32x25.4 T=2.48 T=2.48 | 6 | $3.44 | Available to order | 6 |
| 12-10 | Q830-311003-00900 ADJUSTING WASHER 32x25.4 T=2.50 | ADJUSTING WASHER 32x25.4 T=2.50 T=2.50 | 6 | $3.44 | Available to order | 6 |
| 12-11 | Q830-311003-01000 ADJUSTING WASHER 32x25.4 T=2.60 | ADJUSTING WASHER 32x25.4 T=2.60 T=2.60 | 6 | $3.44 | Available to order | 6 |
| 12-12 | Q830-311003-01100 ADJUSTING WASHER 32x25.4 T=2.70 | ADJUSTING WASHER 32x25.4 T=2.70 T=2.70 | 6 | $3.44 | Available to order | 6 |
| 12-13 | Q830-311003-01200 ADJUSTING WASHER 32x25.4 T=2.80 | ADJUSTING WASHER 32x25.4 T=2.80 T=2.80 | 6 | $2.29 | Available to order | 6 |
| 12-14 | Q830-311003-01300 ADJUSTING WASHER 32x25.4 T=2.90 | ADJUSTING WASHER 32x25.4 T=2.90 T=2.90 | 6 | $3.44 | Available to order | 6 |
| 12-01 | Q830-311003-01400 ADJUSTING WASHER 32x25.4 T=3.00 | ADJUSTING WASHER 32x25.4 T=3.00 T=3.00 | 6 | $2.29 | Available to order | 6 |
| 13 | 30105-040008410 CROSS SCREW, M4X8 | CROSS SCREW, M4X8 M4x8 | 6 | $2.29 | Available to order | 6 |
| 14 | 30409-03000 BEARING | BEARING 32006(30x55x17) | 1 | $45.99 | Available to order | 1 |
| 15 | Q830-3100B0 RING AND PINION, GEAR SET | RING AND PINION, GEAR SET | 1 | $252.99 | Available to order | 1 |
| 16 | 30400-05500 BEARING | BEARING 61911(55x80x13) | 1 | $57.49 | Available to order | 1 |
| 17-02 | Q830-310015-00100 ADJUST SHIM 79.5X68 | ADJUST SHIM 79.5X68 T=0.10 | 1 | $3.44 | Available to order | 1 |
| 17-03 | Q830-310015-00200 ADJUST SHIM 79.5X68 | ADJUST SHIM 79.5X68 T=0.20 | 1 | $3.44 | Available to order | 1 |
| 17-04 | Q830-310015-00300 ADJUST SHIM 79.5X68 | ADJUST SHIM 79.5X68 T=0.30 | 1 | $3.44 | Available to order | 1 |
| 17-05 | Q830-310015-00400 ADJUST SHIM 79.5X68 | ADJUST SHIM 79.5X68 T=0.40 | 1 | $3.44 | Available to order | 1 |
| 17-06 | Q830-310015-00500 ADJUST SHIM 79.5X68 | ADJUST SHIM 79.5X68 T=0.50 | 1 | $3.44 | Available to order | 1 |
| 17-01 | Q830-310015-00600 ADJUST SHIM 79.5X68 | ADJUST SHIM 79.5X68 T=1.00 | 1 | $3.44 | Available to order | 1 |
| 18 | Q830-310014 DRIVE CLUTCH COLLAR | DRIVE CLUTCH COLLAR | 1 | $26.44 | Available to order | 1 |
| 19 | Q830-310013 SPLINE BUSH | SPLINE BUSH | 1 | $45.99 | Out of Stock | Notify Me |
| 20 | 30800-05505 RETAINER 55 | RETAINER 55 55 | 6 | $2.29 | Available to order | 6 |
| 21 | 30400-03001 BEARING | BEARING 6006 | 1 | $20.69 | Available to order | 1 |
| 22 | 30130-080010810 SCREW | SCREW M8x10 | 6 | $1.25 | Available to order | 6 |
| 23 | Q830-310003 PIN SHAFT | PIN SHAFT | 1 | $3.44 | Available to order | 1 |
| 24 | 0180-332100 OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) M14x1.25x12 | 6 | $8.04 | Available to order | 6 |
| 25 | 0180-011006 WASHER 14 | WASHER 14 14 | 6 | $2.29 | Available to order | 6 |
| 26 | Q830-310007-20000 FRONT GEAR CASE | FRONT GEAR CASE | 1 | $186.99 | Available to order | 1 |
| 27 | 0180-021008-00001 BOLT M14x1.25x12 | BOLT M14x1.25x12 | 6 | $3.44 | Available to order | 6 |
| 28 | 0180-311001 OIL SEAL 24X38X8 | OIL SEAL 24X38X8 24x38x8 | 1 | $5.74 | Available to order | 1 |
| 29 | Q830-310005-10001 FORK | FORK | 1 | — | Obsolete | View Details |
| 30 | Q890-310010 BLOCK ASSY. | BLOCK ASSY. | 1 | $57.49 | Out of Stock | Notify Me |
| 31 | Q830-310012-10000 O-RING 67.5x2 | O-RING 67.5x2 | 1 | $5.74 | Available to order | 1 |
| 32 | Q890-314000-10000 FRONT GEAR CASE MOTOR ASSY | FRONT GEAR CASE MOTOR ASSY Kaidi PLUG | 1 | $285.99 | Available to order | 1 |
| 33 | 0010-023008-0010 BOLT M6x18 | BOLT M6x18 M6x18 | 6 | — | Obsolete | View Details |
| 34 | 0180-313002-10000 GEAR SHAFT(CENTER),DIFF | GEAR SHAFT(CENTER),DIFF | 1 | $17.24 | Available to order | 1 |
| 35 | Q830-313003-10000 FRONT CARRIER HOUSING | FRONT CARRIER HOUSING | 1 | $91.99 | Available to order | 1 |
| 36 | 30906-0503000 PIN | PIN 5x30 | 1 | $1.25 | Available to order | 1 |
| 37 | Q830-313004 GEAR,CV SHAFT | GEAR,CV SHAFT | 1 | $68.99 | Available to order | 1 |
| 38 | 0181-313011 WEARING RING | WEARING RING | 2 | $3.44 | Available to order | 2 |
| 39 | 0180-313003-00004 BEVEL GEAR, DIFFERENTIAL | BEVEL GEAR, DIFFERENTIAL | 1 | $26.44 | Available to order | 1 |
| 40 | 0180-313006-00001 DRIVEN GEAR,DIFFERENTIAL | DRIVEN GEAR,DIFFERENTIAL | 1 | $45.99 | Available to order | 1 |
| 41 | 30913-0300550 PIN SHAFT | PIN SHAFT | 1 | $6.89 | Available to order | 1 |
| 42 | Q830-310022 OIL GUARD | OIL GUARD | 1 | $3.44 | Available to order | 1 |
| 43-01 | Q800-313005-00100 SHIM WASHER, T=1.00 | SHIM WASHER, T=1.00 t=1.00 | 1 | $3.44 | Available to order | 1 |
| 43-02 | Q800-313005-00200 SHIM WASHER, T=1.20 | SHIM WASHER, T=1.20 t=1.20 | 1 | $3.44 | Available to order | 1 |
| 44 | Q830-313001-10000 COUPLER | COUPLER | 1 | $59.79 | Available to order | 1 |
| 45 | 9010-290001 BOLT M8x1x22 | BOLT M8x1x22 M8x1x22 | 6 | $1.25 | Available to order | 6 |
| 46-02 | Q830-310009-00100 ADJUST SHIM 54.5X43 | ADJUST SHIM 54.5X43 T=0.10 | 6 | $3.44 | Available to order | 6 |
| 46-03 | Q830-310009-00200 ADJUST SHIM 54.5X43 | ADJUST SHIM 54.5X43 T=0.20 | 6 | $3.44 | Available to order | 6 |
| 46-04 | Q830-310009-00300 ADJUST SHIM 54.5X43 | ADJUST SHIM 54.5X43 T=0.30 | 6 | $3.44 | Available to order | 6 |
| 46-05 | Q830-310009-00400 ADJUST SHIM 54.5X43 | ADJUST SHIM 54.5X43 T=0.40 | 6 | $3.44 | Available to order | 6 |
| 46-06 | Q830-310009-00500 ADJUST SHIM 54.5X43 | ADJUST SHIM 54.5X43 T=0.50 | 6 | $3.44 | Available to order | 6 |
| 46-01 | Q830-310009-00600 ADJUST SHIM 54.5X43 | ADJUST SHIM 54.5X43 T=1.00 | 6 | $3.44 | Available to order | 6 |
| 47 | Q830-310011 O-RING | O-RING | 6 | $4.59 | Available to order | 6 |
| 48 | Q830-310008-10000 FRONT GEAR CASE COVER | FRONT GEAR CASE COVER | 1 | $68.99 | Available to order | 1 |
| 49 | 0180-311004-0020 JOINT , BREATHER HOSE | JOINT , BREATHER HOSE | 1 | $3.44 | Available to order | 1 |
| 50 | Q820-333008 CROSS BUSHING | CROSS BUSHING | 1 | $14.94 | Available to order | 1 |
| 51 | Q800-313001 PINION GEAR SHAFT | PINION GEAR SHAFT | 1 | $4.59 | Available to order | 1 |
