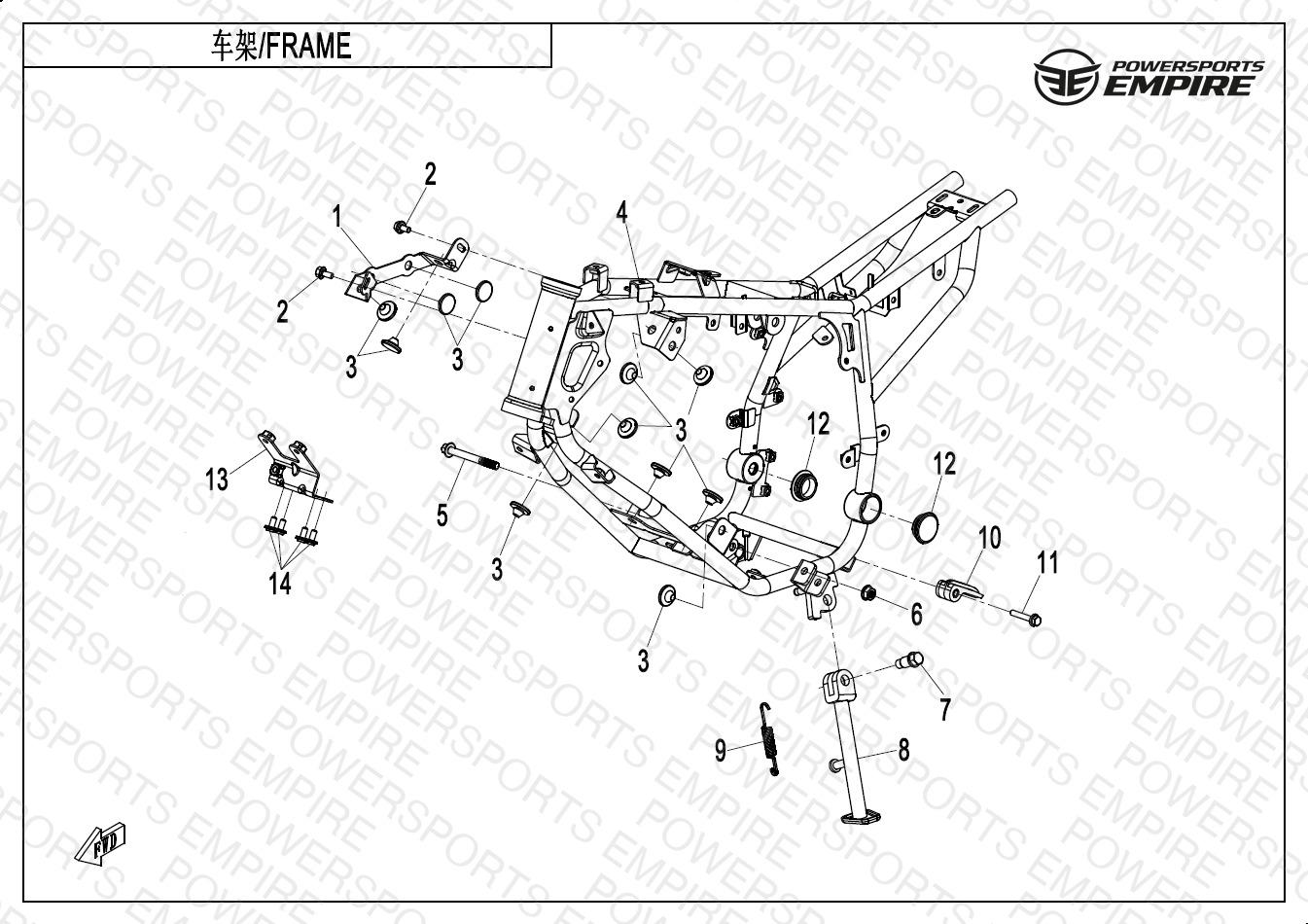

F03 — FRAME ASSY
Parts (14)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | ED2V-033000-1000 BATTERY PRESSURE PLATE | BATTERY PRESSURE PLATE | 1 | $8.04 | Available to order | 1 |
| 02 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 03 | ED2V-131005-1000 RUBBER DAMPER | RUBBER DAMPER | 1 | $2.29 | Available to order | 1 |
| 04 | ED2V-031000-1001-0FM00 FRAME | FRAME BLUE | 1 | — | Obsolete | View Details |
| 05 | 30006-080075810 BOLT M8X75 | BOLT M8X75 | 6 | $2.29 | Available to order | 6 |
| 06 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 07 | ED2V-030001-1000 SIDE BRACKET BOLT | SIDE BRACKET BOLT | 1 | $4.59 | Available to order | 1 |
| 08 | ED2V-030310-1001-0BP00 SIDE BRACKET | SIDE BRACKET MAUD SPIRIT BLACK | 1 | $19.54 | Available to order | 1 |
| 09 | ED2V-030320-1001 SIDE STAND SPRING | SIDE STAND SPRING | 1 | $4.59 | Obsolete | View Details |
| 10 | 6KJ0-030510 CHAIN GUARD | CHAIN GUARD | 1 | $5.74 | Available to order | 1 |
| 11 | 30006-060035810 BOLT M6x35 | BOLT M6x35 | 6 | $1.25 | Available to order | 6 |
| 12 | EG4V-043002-1000 BOLT PLUG | BOLT PLUG | 1 | $2.29 | Available to order | 1 |
| 13 | ED2V-032100-1000 FRONT FENDER BRACKET | FRONT FENDER BRACKET | 1 | $9.19 | Available to order | 1 |
| 14 | 6WWV-046701-5000 INNER HEX SCREW M6x13 | INNER HEX SCREW M6x13 | 2 | — | Obsolete | View Details |
