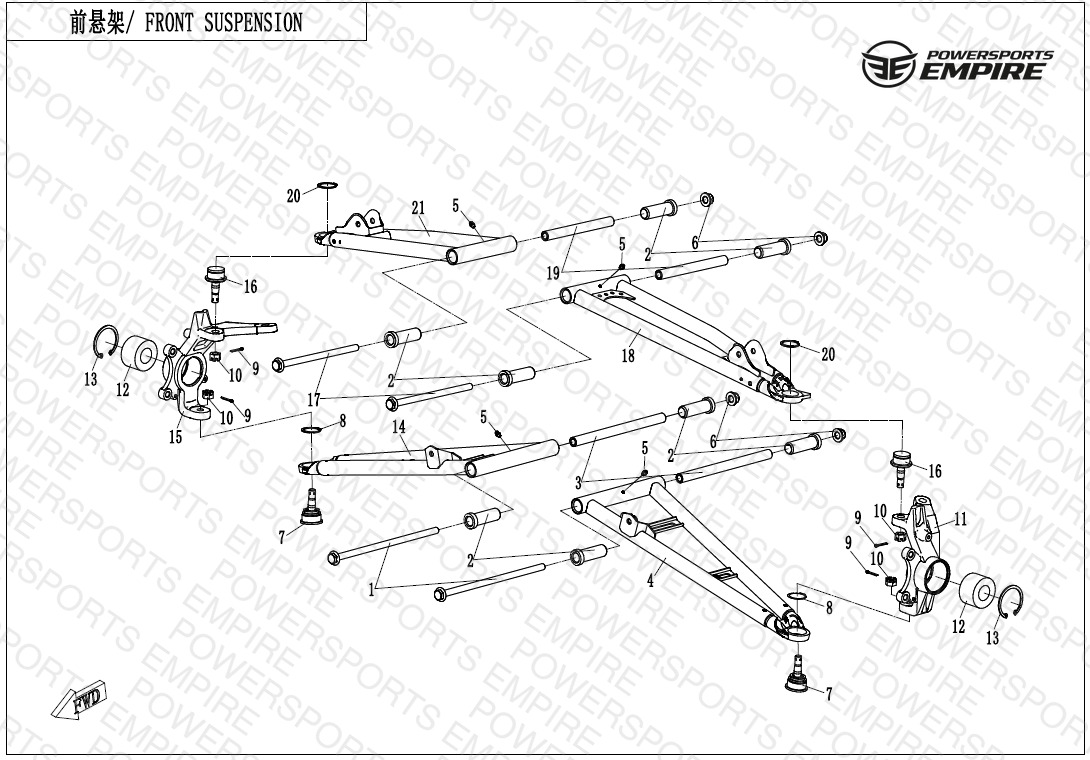

F05-1 — FRONT SUSPENSION
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5BY0-050203 MOUNTING SHAFT, FRONT LOWER SWING ARM | MOUNTING SHAFT, FRONT LOWER SWING ARM | 1 | $16.09 | Available to order | 1 |
| 02 | 5BY0-050102 FRONT UPPER A ARM BUSHING | FRONT UPPER A ARM BUSHING | 2 | $6.89 | Available to order | 2 |
| 03 | 5BY0-050201 MIDDLE SPACER, FRONT LOWER SWING ARM | MIDDLE SPACER, FRONT LOWER SWING ARM | 1 | $19.54 | Available to order | 1 |
| 04 | 5BYV-050210-A100 FRONT LH LOWER SWING ARM | FRONT LH LOWER SWING ARM | 1 | — | Obsolete | View Details |
| 05 | 3120100 GREASE ZERK | GREASE ZERK | 2 | $3.44 | Available to order | 2 |
| 06 | 30204-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $1.25 | Available to order | 6 |
| 07 | 9060-050900-10000 BALL PIN COMP. | BALL PIN COMP. CCVI | 1 | $45.99 | Available to order | 1 |
| 08 | 30801-03405 RETAINER 34 | RETAINER 34 34 | 6 | $1.25 | Available to order | 6 |
| 09 | 30903-0322210 COTTER PIN | COTTER PIN 3.2x22 | 6 | $1.25 | Available to order | 6 |
| 10 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 11 | 5BYV-050701-A100 LH STEERING KNUCKLE | LH STEERING KNUCKLE | 1 | $186.99 | Available to order | 1 |
| 12 | 30411-03080 HUB BEARING | HUB BEARING | 1 | — | Obsolete | View Details |
| 13 | 30800-06005 CIRCLIP | CIRCLIP 60 | 6 | $5.74 | Available to order | 6 |
| 14 | 5BYV-050410-A100 FRONT RH LOWER SWING ARM | FRONT RH LOWER SWING ARM | 1 | — | Obsolete | View Details |
| 15 | 5BYV-050801-A100 RH STEERING KNUCKLE | RH STEERING KNUCKLE | 1 | $164.99 | Available to order | 1 |
| 16 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. CCVI | 1 | $57.49 | Available to order | 1 |
| 17 | 5BY0-050103 MOUNTING SHAFT, FRONT UPPER SWING ARM | MOUNTING SHAFT, FRONT UPPER SWING ARM | 1 | $12.64 | Available to order | 1 |
| 18 | 5BYV-050110-A100 FRONT LH UPPER SWING ARM | FRONT LH UPPER SWING ARM | 1 | $164.99 | Obsolete | View Details |
| 19 | 5BY0-050101 MIDDLE SPACER, FRONT UPPER SWING ARM | MIDDLE SPACER, FRONT UPPER SWING ARM | 1 | $17.24 | Available to order | 1 |
| 20 | 30801-03205 RETAINER 32 | RETAINER 32 32 A-TYPE | 6 | $1.25 | Available to order | 6 |
| 21 | 5BYV-050310-A100 FRONT RH UPPER SWING ARM | FRONT RH UPPER SWING ARM | 1 | $164.99 | Obsolete | View Details |
