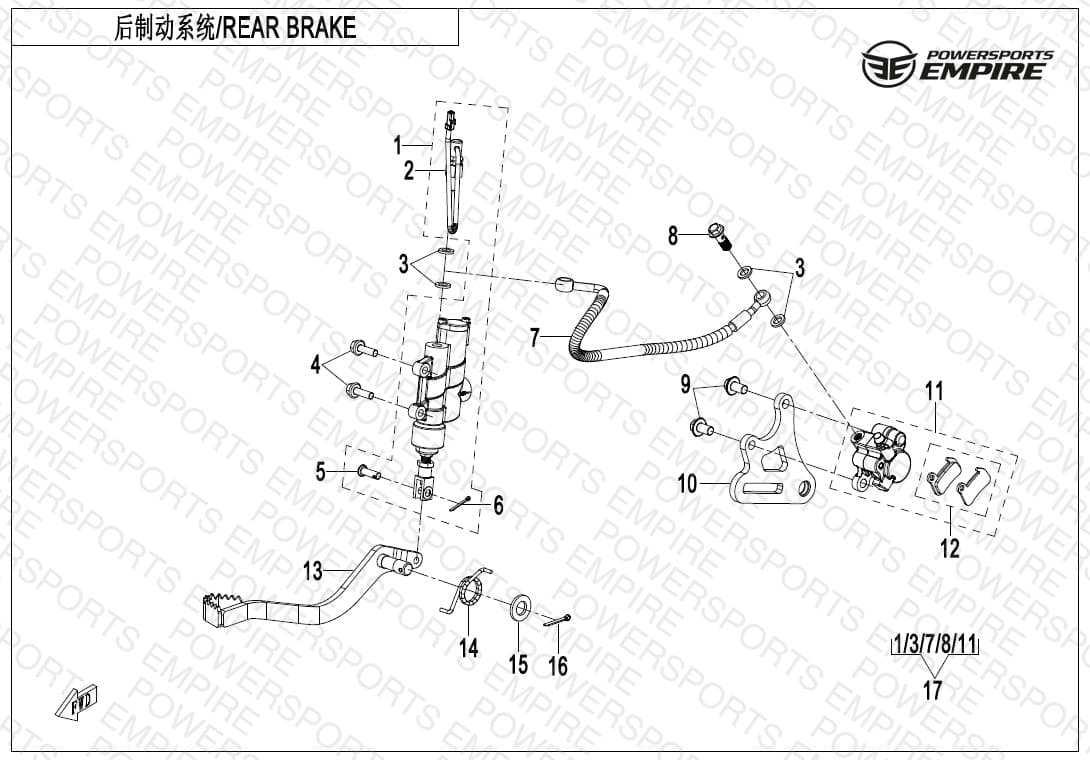

F09 — REAR BRAKE
Parts (17)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | EF5V-091100-1000-M1 REAR BRAKE UPPER PUMP | REAR BRAKE UPPER PUMP | 1 | $45.99 | Available to order | 1 |
| 02 | EF5V-091100-1000-20 PRESSURE SWITCH | PRESSURE SWITCH | 1 | $22.99 | Available to order | 1 |
| 03 | EF5V-091000-1000-21 WASHER | WASHER | 1 | $1.25 | Available to order | 1 |
| 04 | 30006-060020810 BOLT M6x20 | BOLT M6x20 | 6 | — | Obsolete | View Details |
| 05 | EF5V-091100-1000-29 LOCK PIN | LOCK PIN | 1 | $2.29 | Available to order | 1 |
| 06 | EF5V-091100-1000-30 COTTER PIN | COTTER PIN | 1 | $1.25 | Available to order | 1 |
| 07 | EF5V-091000-1000-22 BRAKE HOSE | BRAKE HOSE | 1 | $13.79 | Available to order | 1 |
| 08 | EF5V-091000-1000-20 JOINT BOLT | JOINT BOLT | 1 | $3.44 | Available to order | 1 |
| 09 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 10 | EF5V-094000-1000 DISC BRAKE MASTER PUMP BRACKET | DISC BRAKE MASTER PUMP BRACKET | 1 | $12.64 | Available to order | 1 |
| 11 | ED2V-091020-3000-M1 REAR FOOT BRAKE LOWER PUMP | REAR FOOT BRAKE LOWER PUMP | 1 | $68.99 | Available to order | 1 |
| 12 | ED2V-0810A0 BRAKE PAD | BRAKE PAD | 1 | $21.84 | Available to order | 1 |
| 13 | EF5V-093000-1000-0BP00 BRAKE PEDAL | BRAKE PEDAL | 1 | $12.64 | Available to order | 1 |
| 14 | EF5V-092020-1001 REAR BRAKE SPRING | REAR BRAKE SPRING | 1 | $2.29 | Available to order | 1 |
| 15 | 30306-120112 PLAIN WASHER | PLAIN WASHER | 6 | $1.25 | Out of Stock | Notify Me |
| 16 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 17 | EF5V-091000-1000-M1 REAR HYDRAULIC BRAKE ASSY | REAR HYDRAULIC BRAKE ASSY | 1 | $114.99 | Available to order | 1 |
