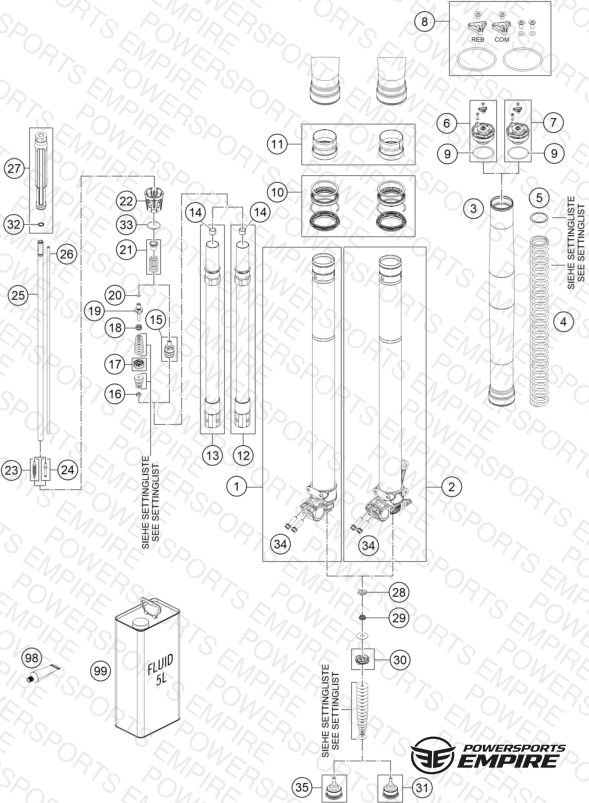

FRONT FORK DISASSEMBLED
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 48601933S1 Axleclamp OC right cpl. with t | Axleclamp OC right cpl. with t | 1 | $465.07 | Available to order | 1 |
| 2 | 48601932S1 Axleclamp OC left cpl. with tu | Axleclamp OC left cpl. with tu | 1 | $465.07 | Available to order | 1 |
| 3 | 48601671 Fork outer tube 49,13x577 dt54 | Fork outer tube 49,13x577 dt54 | 2 | $302.82 | Available to order | 2 |
| 4 | 91410099S SPRING 3,8N/MM SET D=4,9MM | SPRING 3,8N/MM SET D=4,9MM | — | $164.99 | Available to order | 1 |
| 4 | 91410100S SPRING 4,0N/MM SET D=4,9MM | SPRING 4,0N/MM SET D=4,9MM | — | $164.99 | Available to order | 1 |
| 4 | 91410101S SPRING 4,2N/MM SET D=4,9MM | SPRING 4,2N/MM SET D=4,9MM | — | $164.99 | Available to order | 1 |
| 4 | 91410102S SPRING 4,4N/MM SET D=4,9MM | SPRING 4,4N/MM SET D=4,9MM | — | $164.99 | Available to order | 1 |
| 4 | 91410103S FORK SPRING L= 470 4,6 N/MM SE | FORK SPRING L= 470 4,6 N/MM SE | — | $164.99 | Available to order | 1 |
| 4 | 91410104S SPRING 4,8N/MM SET D=4,9MM | SPRING 4,8N/MM SET D=4,9MM | — | $164.99 | Available to order | 1 |
| 5 | 48600456 Washer 35x43x2,5 plastic | Washer 35x43x2,5 plastic | — | $2.41 | Available to order | 1 |
| 6 | 48601680S2 Screw cap M51x1,5 PA right cpl | Screw cap M51x1,5 PA right cpl | 1 | $247.16 | Available to order | 1 |
| 7 | 48601680S3 Screw cap M51x1,5 PA left cpl. | Screw cap M51x1,5 PA left cpl. | 1 | $247.16 | Available to order | 1 |
| 8 | R14033 SCREW CAP SMALL PART KIT | SCREW CAP SMALL PART KIT | 1 | $8.02 | Available to order | 1 |
| 9 | 48600048 O-ring 46x2 NBR70 siliconized | O-ring 46x2 NBR70 siliconized | 2 | $3.62 | Available to order | 2 |
| 10 | R14046 Repair kit fork 48mm | Repair kit fork 48mm | 1 | $78.53 | Available to order | 1 |
| 11 | R14047 Guide bushing set fork 48mm | Guide bushing set fork 48mm | 1 | $32.99 | Available to order | 1 |
| 12 | 48600763S5 Tube, including screw sleeve w | Tube, including screw sleeve w | 1 | $191.50 | Available to order | 1 |
| 13 | 48600763S6 tube incl. screw sleeve | tube incl. screw sleeve | 1 | $185.34 | Available to order | 1 |
| 14 | 48600430 Guide bushing 12x14x10 | Guide bushing 12x14x10 | 2 | $7.58 | Available to order | 2 |
| 15 | 48601843S3 Tap compression cpl. | Tap compression cpl. | 1 | $64.78 | Available to order | 1 |
| 16 | 40540486 Nut M6x0,5 h6,5 WAF10 rebound | Nut M6x0,5 h6,5 WAF10 rebound | 1 | $4.83 | Available to order | 1 |
| 17 | 48601817S Piston 6x23x13 cpl. | Piston 6x23x13 cpl. | 1 | $25.84 | Available to order | 1 |
| 18 | 48600382 Spring (11,4) 0,4-8 valve | Spring (11,4) 0,4-8 valve | 1 | $2.41 | Available to order | 1 |
| 19 | 48600576 Tap 6x46 rebound | Tap 6x46 rebound | 1 | $14.99 | Available to order | 1 |
| 20 | 48600299 O-ring 6x1,2 NBR70 | O-ring 6x1,2 NBR70 | 1 | $1.20 | Available to order | 1 |
| 21 | 48600578S Spring (13,9) 37-32 rebound cp | Spring (13,9) 37-32 rebound cp | 2 | $4.83 | Available to order | 2 |
| 22 | 48601298 Spring retainer 27,08x43x45 | Spring retainer 27,08x43x45 | 2 | $6.92 | Available to order | 2 |
| 23 | 48600277S Needle 4,5x43,6 cpl. | Needle 4,5x43,6 cpl. | 1 | $10.55 | Available to order | 1 |
| 24 | 48601558S Needle 4,5x38,2 cpl. | Needle 4,5x38,2 cpl. | 1 | $13.63 | Available to order | 1 |
| 25 | 48600568 Piston rod 12x554 | Piston rod 12x554 | 2 | $116.70 | Available to order | 2 |
| 26 | 48601786 Adjustment tube 6x521,7 | Adjustment tube 6x521,7 | 2 | $35.52 | Available to order | 2 |
| 27 | 48601556S Stop 12.4x31.9x200.3 cmpl. | Stop 12.4x31.9x200.3 cmpl. | 2 | $14.95 | Available to order | 2 |
| 28 | 48600163 Nut valve M6x0,5 h6,5 WAF17 | Nut valve M6x0,5 h6,5 WAF17 | 2 | $3.62 | Available to order | 2 |
| 29 | 48600202 Spring (8,5) l6,5 valve | Spring (8,5) l6,5 valve | 2 | $2.41 | Available to order | 2 |
| 30 | 48601934S Piston 6x27,3x9 compression cp | Piston 6x27,3x9 compression cp | 2 | $15.83 | Available to order | 2 |
| 31 | 48601553S Screw cap M29,3x1 OC split cpl | Screw cap M29,3x1 OC split cpl | 1 | $30.24 | Available to order | 1 |
| 32 | 04500003 O-ring 11x2,5 NBR70 PTFE yello | O-ring 11x2,5 NBR70 PTFE yello | 2 | $1.20 | Available to order | 2 |
| 33 | 48601702 Shim 27,5x33x0,3 | Shim 27,5x33x0,3 | 2 | $12.64 | Available to order | 2 |
| 34 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | $2.41 | Available to order | 4 |
| 98 | T14034 Fuchs grease IPR (250g) | Fuchs grease IPR (250g) | 1 | $40.69 | Available to order | 1 |
| 99 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | $175.99 | Available to order | 1 |
| 35 | 48601980S Screw cap M29,3x1 | Screw cap M29,3x1 | 1 | $25.84 | Available to order | 1 |
| 5 | 48600457 Preload bush 35x43x3,5 | Preload bush 35x43x3,5 | — | $2.41 | Available to order | 1 |
| 5 | 48600458 Washer 35x43x1,5 plastic | Washer 35x43x1,5 plastic | — | $2.41 | Available to order | 1 |
