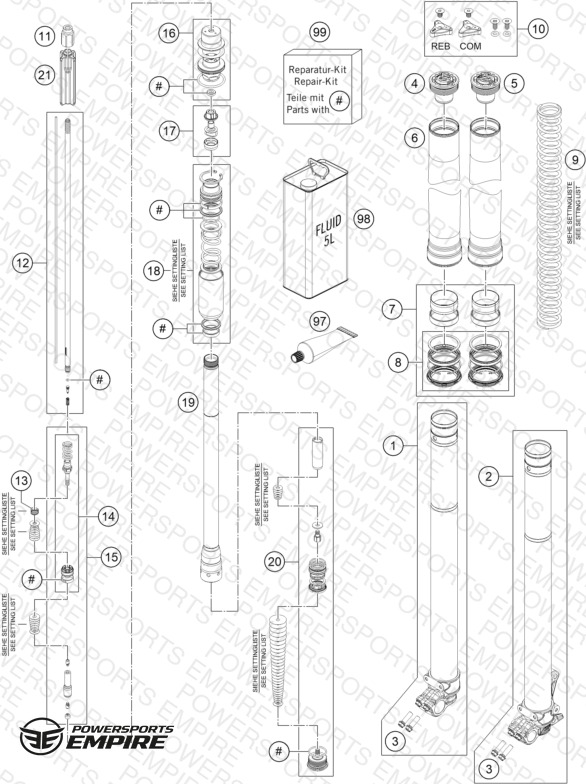

FRONT FORK DISASSEMBLED
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 21 | 48601552 Spring guide 8,2x32,5x129 | Spring guide 8,2x32,5x129 | 2 | $16.82 | Out of Stock | Notify Me |
| 8 | R14040 GASKET KIT CPL. | GASKET KIT CPL. | 1 | $78.53 | Available to order | 1 |
| 1 | 48601531S1 AXLE CLAMP R/S WITH INNER TUBE | AXLE CLAMP R/S WITH INNER TUBE | 1 | — | Obsolete | View Details |
| 2 | 48601530S1 AXLE CLAMP L/S WITH INNER TUBE | AXLE CLAMP L/S WITH INNER TUBE | 1 | $613.79 | Available to order | 1 |
| 3 | 0025080256 HH collar screw M8x25 | HH collar screw M8x25 | 4 | $2.41 | Available to order | 4 |
| 4 | 48601050E Screw cap M51x1,5 Zugsture cpl | Screw cap M51x1,5 Zugsture cpl | 1 | — | Obsolete | View Details |
| 5 | 48601116E Screw cap M51x1,5 compression | Screw cap M51x1,5 compression | 1 | — | Obsolete | View Details |
| 6 | 48600736 Fork outer tube 49,13x577 dt54 | Fork outer tube 49,13x577 dt54 | 2 | $543.94 | Available to order | 2 |
| 7 | R14063 Fork repair kit 48mm offroad | Fork repair kit 48mm offroad | 1 | $111.52 | Available to order | 1 |
| 9 | 91410106S SPRING 5,2N/MM SET | SPRING 5,2N/MM SET | 1 | $164.99 | Available to order | 1 |
| 10 | R14033 SCREW CAP SMALL PART KIT | SCREW CAP SMALL PART KIT | 1 | $8.02 | Available to order | 1 |
| 11 | 48601034 Lock nut M8 h33 WAF19 | Lock nut M8 h33 WAF19 | 2 | $11.21 | Available to order | 2 |
| 12 | 48601343S PISTON ROD CPL. | PISTON ROD CPL. | 2 | $123.63 | Available to order | 2 |
| 13 | 48600382 Spring (11,4) 0,4-8 valve | Spring (11,4) 0,4-8 valve | 2 | $2.41 | Available to order | 2 |
| 14 | R14056 TAP KIT | TAP KIT | 2 | $41.13 | Available to order | 2 |
| 15 | 48601390S3 Tap compression cpl. | Tap compression cpl. | 2 | $111.75 | Available to order | 2 |
| 16 | R14035 SCREW SLEEVE KIT | SCREW SLEEVE KIT | 2 | $71.71 | Available to order | 2 |
| 17 | 48601025S1 Check valve d21mm cpl. | Check valve d21mm cpl. | 2 | $33.98 | Available to order | 2 |
| 18 | 48601315S4 Reservoir 36x85 cpl. | Reservoir 36x85 cpl. | 2 | $94.48 | Available to order | 2 |
| 19 | 48601542S TUBE L382 + ADAPTER | TUBE L382 + ADAPTER | 2 | $194.03 | Available to order | 2 |
| 20 | 48601247S2 Base tap cpl. | Base tap cpl. | 2 | $87.88 | Available to order | 2 |
| 97 | T511 SILICONE GREASE F. DUST STRI | SILICONE GREASE F. DUST STRI | 1 | $40.69 | Available to order | 1 |
| 98 | 48601166S1 Fork Fluid Viscosity 4.0 5L | Fork Fluid Viscosity 4.0 5L | 1 | $175.99 | Available to order | 1 |
| 99 | R24002 O-RING SET 4CS | O-RING SET 4CS | 1 | $49.99 | Available to order | 1 |
