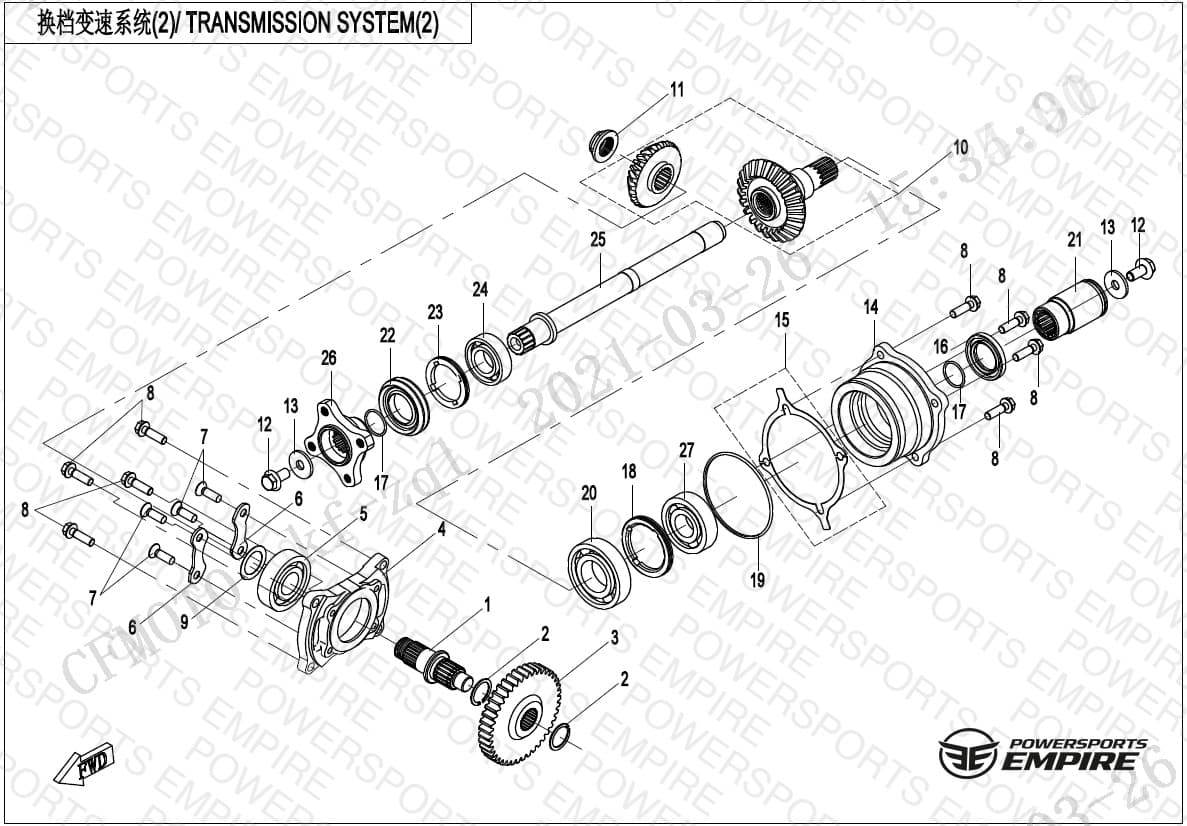

E06-2 — TRANSMISSION SYSTEM(2)
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0180-062101 DRIVE BEVEL GEAR SHAFT | DRIVE BEVEL GEAR SHAFT | 1 | $68.99 | Available to order | 1 |
| 02 | 0180-061007-0050 RETAINER 25 | RETAINER 25 25 | 2 | $1.25 | Available to order | 2 |
| 03 | 0180-062102-00001 OUTPUT DRIVEN GEAR | OUTPUT DRIVEN GEAR | 1 | $91.99 | Available to order | 1 |
| 04 | 0180-062103-10000 BEARING SEAT,DRIVE BEVEL GEAR | BEARING SEAT,DRIVE BEVEL GEAR | 1 | $45.99 | Available to order | 1 |
| 05 | 30499-02501 BALL BEARING 6305 | BALL BEARING 6305 | 1 | $57.49 | Available to order | 1 |
| 06 | 0180-062104-0010 LIMITATOR, BEARING | LIMITATOR, BEARING | 1 | $5.74 | Available to order | 1 |
| 07 | 30124-080025810 SCREW M8x25 | SCREW M8x25 | 6 | $1.25 | Available to order | 6 |
| 08 | 0JYA-062104 BOLT M8x28 | BOLT M8x28 M8x28 | 6 | $2.29 | Available to order | 6 |
| 09-02 | 0180-062105 ADJUST SHIM, DRIVE BEVEL GEAR | ADJUST SHIM, DRIVE BEVEL GEAR T=0.15 | 6 | $2.29 | Available to order | 6 |
| 09-03 | 0180-062105-0001 ADJUST SHIM | ADJUST SHIM T=0.2 | 2 | $2.29 | Available to order | 2 |
| 09-04 | 0180-062105-0002 ADJUST SHIM | ADJUST SHIM T=0.25 | 2 | $2.29 | Available to order | 2 |
| 09-05 | 0180-062105-0003 SHIM WASHER | SHIM WASHER t=0.3 | 1 | $2.29 | Available to order | 1 |
| 09-01 | 0180-062105-0004 SHIM WASHER, DRIVE SHAFT GEAR | SHIM WASHER, DRIVE SHAFT GEAR t=0.35 | 1 | $2.29 | Available to order | 1 |
| 10 | 0GR0-0622A0-10001 BEVEL GEAR ASSY. | BEVEL GEAR ASSY. | 1 | $241.99 | Available to order | 1 |
| 11 | 0180-062107-00001 LOCK NUT, BEVEL GEAR | LOCK NUT, BEVEL GEAR | 1 | $3.44 | Available to order | 1 |
| 12 | 0JWA-060002-00001 BOLT M10x1.25x30 | BOLT M10x1.25x30 | 1 | $4.59 | Available to order | 1 |
| 13 | 0GR0-062204 WASHER10x27.5x4 | WASHER10x27.5x4 10x27.5x4 | 6 | $3.44 | Available to order | 6 |
| 14 | 0800-062202-10001 DRIVEN BEVEL GEAR BEARING SEAT | DRIVEN BEVEL GEAR BEARING SEAT | 1 | $89.69 | Obsolete | View Details |
| 15-02 | 0800-062203 ADJUST SHIM, DRIVEN BEVEL GEAR | ADJUST SHIM, DRIVEN BEVEL GEAR T=0.1 | 1 | $3.44 | Available to order | 1 |
| 15-03 | 0800-062203-0001 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.2 | 1 | $3.44 | Available to order | 1 |
| 15-04 | 0800-062203-0002 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.3 | 1 | $2.29 | Available to order | 1 |
| 15-05 | 0800-062203-0003 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.4 | 1 | $2.29 | Available to order | 1 |
| 15-01 | 0800-062203-0004 SHIM, DRIVEN BEVEL GEAR | SHIM, DRIVEN BEVEL GEAR T=0.5 | 1 | $2.29 | Available to order | 1 |
| 16 | 0800-062204 OIL SEAL 35x50x7 | OIL SEAL 35x50x7 35x50x7 | 1 | $17.24 | Available to order | 1 |
| 17 | 0800-062205 O-RING 25x2 | O-RING 25x2 25x2 | 2 | $5.74 | Available to order | 2 |
| 18 | 0800-062206 STOPPER NUT, BEARING | STOPPER NUT, BEARING | 1 | $10.34 | Available to order | 1 |
| 19 | 0180-062205 O-RING 88x2.5 | O-RING 88x2.5 88x2.5 | 1 | $10.34 | Available to order | 1 |
| 20 | 30400-03500 BALL BEARING 6207c3 | BALL BEARING 6207c3 35 | 1 | $26.44 | Available to order | 1 |
| 21 | 9CR6-300201-10000 DRIVE SLEEVE, ENGINE | DRIVE SLEEVE, ENGINE | 1 | $68.99 | Available to order | 1 |
| 22 | 0JWA-062302-00001 OIL SEAL | OIL SEAL | 1 | $20.69 | Available to order | 1 |
| 23 | 0180-060008 RETAINER, BEARING | RETAINER, BEARING | 1 | $17.24 | Available to order | 1 |
| 24 | 30400-02501 BALL BEARING 6025 | BALL BEARING 6025 25 | 1 | $19.54 | Available to order | 1 |
| 25 | 0GR0-062301-10001 FRONT OUTPUT SHAFT ASSY | FRONT OUTPUT SHAFT ASSY | 1 | $103.49 | Available to order | 1 |
| 26 | 0GR0-060003 COUPLER | COUPLER | 1 | $68.99 | Out of Stock | Notify Me |
| 27 | 30400-02502 BEARING,BALL | BEARING,BALL | 1 | $20.69 | Available to order | 1 |
