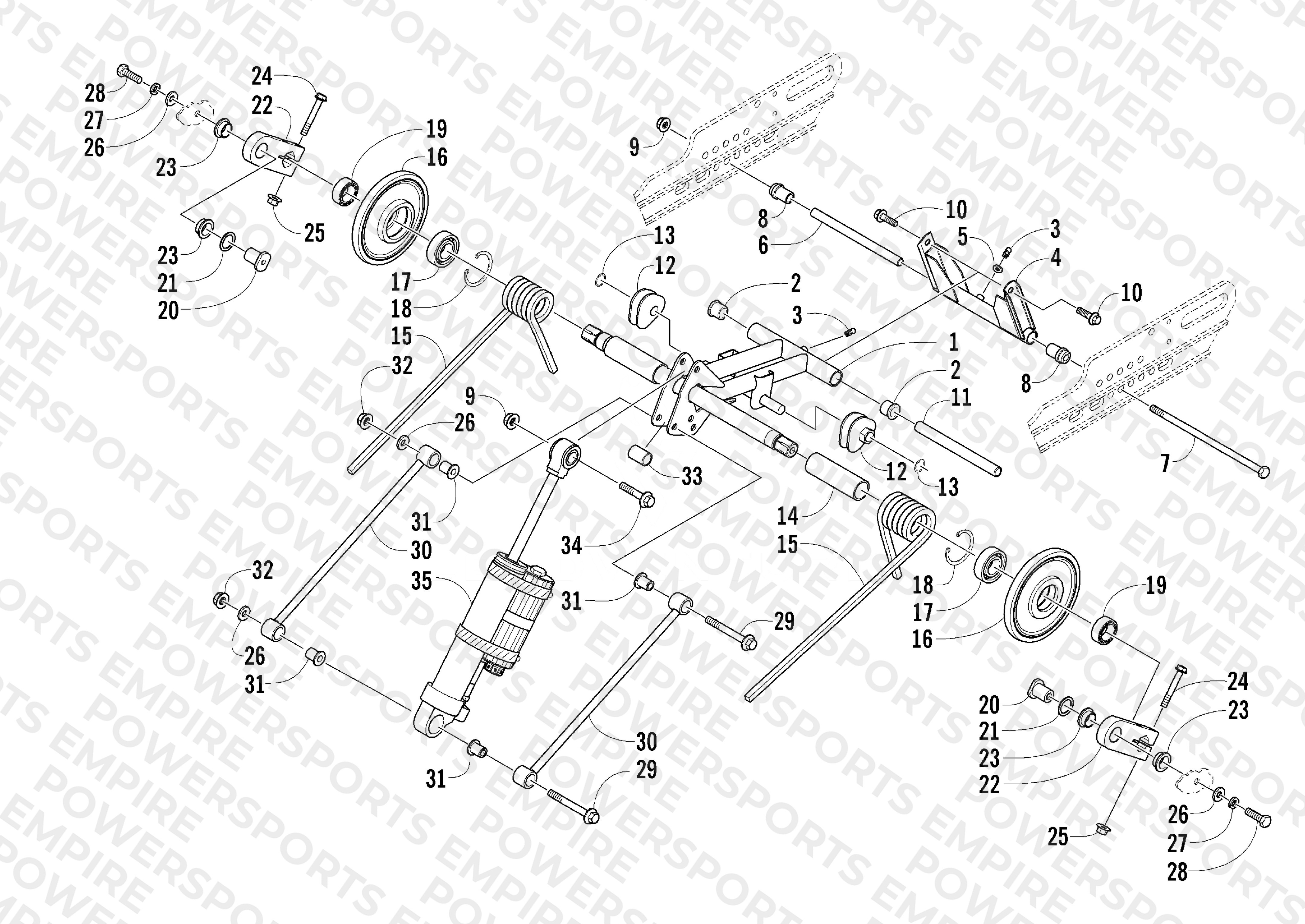

REAR SUSPENSION REAR ARM ASSEMBLY
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 1704-026 Arm, Idler | Arm, Idler (inc. 2 and one No. 3) | 1 | $213.95 | Out of Stock | Notify Me |
| 2 | 1604-100 Bushing, Flared | Bushing, Flared | 2 | $7.39 | Out of Stock | Notify Me |
| 3 | 1623-010 Fitting, Grease | Fitting, Grease | 2 | $2.19 | Available to order | 2 |
| 4 | 1704-019 Arm, Rear Black | Arm, Rear Black (inc. one No. 3 and 5) | 1 | $58.95 | Obsolete | View Details |
| 5 | 1623-011 WASHER- GREASE FITTING | WASHER- GREASE FITTING | 1 | $0.71 | Available to order | 1 |
| 6 | 0604-194 Tube, Axle | Tube, Axle | 1 | $11.95 | Obsolete | View Details |
| 7 | 0623-907 Screw, Cap | Screw, Cap | 1 | $4.69 | Out of Stock | Notify Me |
| 8 | 1604-307 Axle, Serrated | Axle, Serrated | 2 | $17.49 | Available to order | 2 |
| 9 | 8048-486 Nut, Lock | Nut, Lock | 2 | $1.12 | Available to order | 2 |
| 10 | 8020-220 Screw, Cap | Screw, Cap | 2 | $1.33 | Available to order | 2 |
| 11 | 1604-208 Axle, Aluminum | Axle, Aluminum | 1 | $6.19 | Available to order | 1 |
| 12 | 1604-204 Block, Spring Adjuster - Right - Black | Block, Spring Adjuster - Right - Black | 1 | $20.79 | Available to order | 1 |
| 12 | 1604-205 Block, Spring Adjuster - Left - Black | Block, Spring Adjuster - Left - Black | 1 | $20.79 | Available to order | 1 |
| 13 | 0623-138 Ring, Retaining | Ring, Retaining | 2 | $0.71 | Available to order | 2 |
| 14 | 0114-254 Sleeve, Spring | Sleeve, Spring | 2 | $6.89 | Available to order | 2 |
| 15 | 0704-938 SPRING,SUSPENSION-RH-.452-PTD BLK | SPRING,SUSPENSION-RH-.452-PTD BLK | 1 | $103.95 | Out of Stock | Notify Me |
| 15 | 0704-939 SPRING,SUSPENSION-LH-.452-PTD BLK | SPRING,SUSPENSION-LH-.452-PTD BLK | 1 | $103.95 | Available to order | 1 |
| 16 | 1604-690 Wheel, Idler | Wheel, Idler (inc. 17-18) | 2 | $59.95 | Available to order | 2 |
| 17 | 0107-598 Bearing | Bearing | 2 | $13.69 | Available to order | 2 |
| 18 | 0123-798 Ring, Retaining | Ring, Retaining | 2 | $1.79 | Available to order | 2 |
| 19 | 1604-507 Spacer, Pivot Idler Arm | Spacer, Pivot Idler Arm | 2 | $13.69 | Available to order | 2 |
| 20 | 1604-181 Axle, Powder Metal | Axle, Powder Metal | 2 | $14.99 | Available to order | 2 |
| 21 | 1604-187 Washer | Washer | 2 | $2.39 | Available to order | 2 |
| 22 | 0704-981 Offset, Arm (Hex) - Assembly | Offset, Arm (Hex) - Assembly (inc. 23-25) | 2 | $59.95 | Available to order | 2 |
| 23 | 1604-202 Bushing, Flared | Bushing, Flared | 4 | $16.19 | Available to order | 4 |
| 24 | 8020-138 Screw, Cap | Screw, Cap | 4 | $18.59 | Available to order | 4 |
| 25 | 8048-426 Nut, Lock | Nut, Lock | 4 | $1.33 | Available to order | 4 |
| 26 | 0623-044 Washer | Washer | 4 | $2.69 | Available to order | 4 |
| 27 | 8051-277 Washer, Lock | Washer, Lock | 2 | $1.69 | Available to order | 2 |
| 28 | 8002-224 Screw, Cap | Screw, Cap | 2 | $1.11 | Obsolete | View Details |
| 29 | 8020-233 Screw, Cap | Screw, Cap | 2 | $7.39 | Available to order | 2 |
| 30 | 0704-361 Link, Rear Shock | Link, Rear Shock | 2 | $28.03 | Obsolete | View Details |
| 31 | 1604-498 Axle, Link - Flanged | Axle, Link - Flanged | 4 | $45.95 | Available to order | 4 |
| 32 | 8041-486 Nut, Hex - Thin Lock | Nut, Hex - Thin Lock | 2 | $0.50 | Available to order | 2 |
| 33 | 0604-298 SPACER,SHOCK LINK-Z&Y | SPACER,SHOCK LINK-Z&Y | 1 | $39.95 | Available to order | 1 |
| 34 | 8020-226 Screw, Cap | Screw, Cap | 1 | $1.79 | Obsolete | View Details |
| 35 | 1704-266 SHOCK,REAR ARM-ALUM 47MM | SHOCK,REAR ARM-ALUM 47MM | 1 | $674.95 | Obsolete | View Details |
