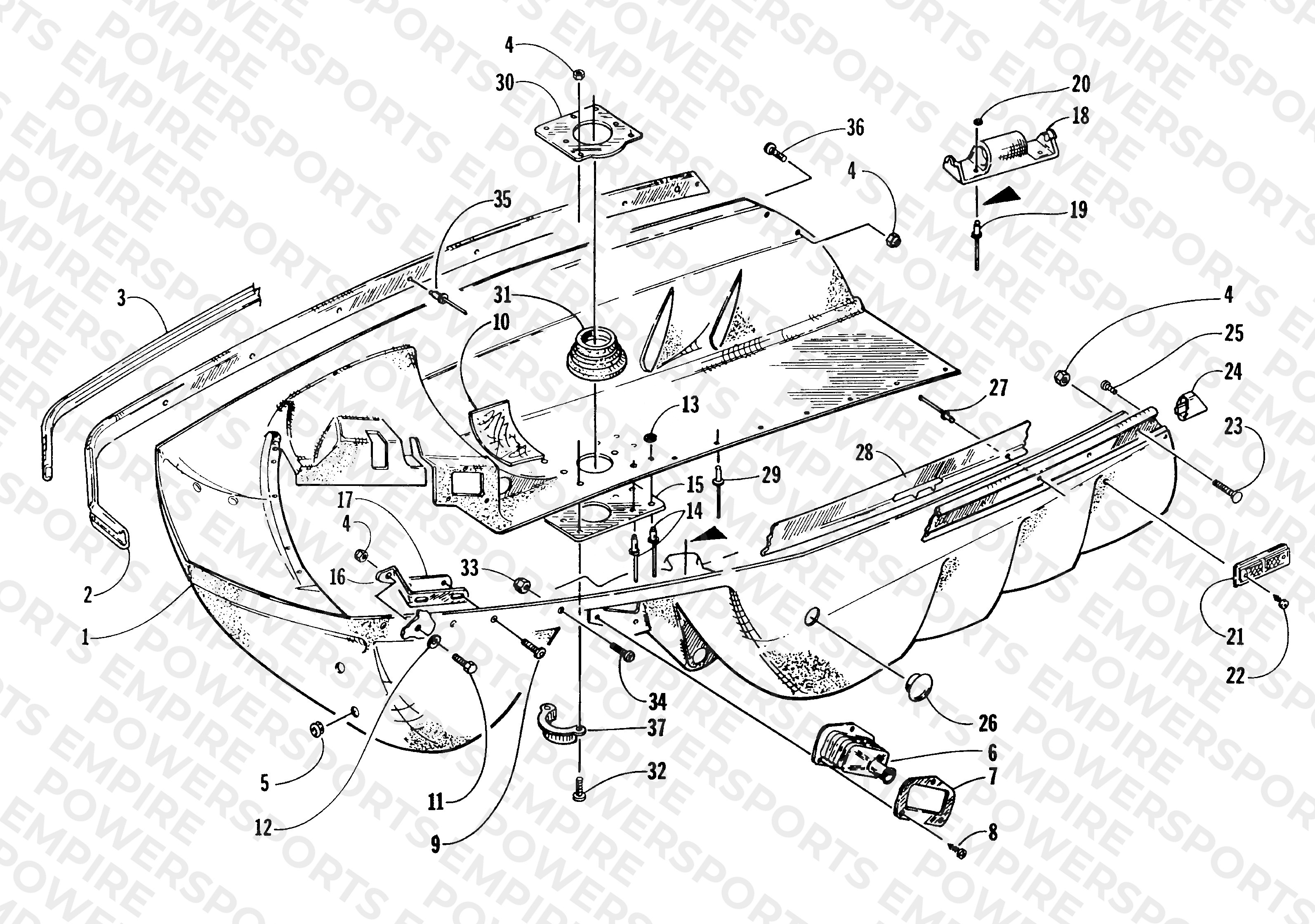

BELLY PAN ASSEMBLY
Parts (40)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 1606-090 Belly Pan | Belly Pan | 1 | $1054.03 | Obsolete | View Details |
| 2 | 0706-952 Bumper, Front | Bumper, Front | 1 | $250.95 | Out of Stock | Notify Me |
| 3 | 0616-700 INSERT,BUMPER-CTL 124" BLK | INSERT,BUMPER-CTL 124" BLK | 1 | $23.95 | Obsolete | View Details |
| 4 | 8040-366 Nut, Lock | Nut, Lock | 10 | $0.40 | Available to order | 10 |
| 5 | 0616-348 Plug, Hole | Plug, Hole | 4 | $1.79 | Available to order | 4 |
| 6 | 0605-260 Boot, Steering | Boot, Steering | 2 | $21.18 | Out of Stock | Notify Me |
| 7 | 0605-261 Flange, Mounting | Flange, Mounting | 2 | $3.09 | Obsolete | View Details |
| 8 | 0623-574 Screw, Self-Tapping | Screw, Self-Tapping | 6 | $8.59 | Available to order | 6 |
| 9 | 0623-472 Screw, Cap | Screw, Cap | 4 | $0.69 | Obsolete | View Details |
| 10 | 0706-990 Tape, Foil | Tape, Foil | — | $10.95 | Obsolete | View Details |
| 11 | 8002-040 Screw, Cap | Screw, Cap | 2 | $0.44 | Obsolete | View Details |
| 12 | 0107-234 Spacer | Spacer | 2 | $16.19 | Available to order | 2 |
| 13 | 0123-149 Washer, Flat | Washer, Flat | 3 | $2.39 | Available to order | 3 |
| 14 | 8060-508 Rivet | Rivet | 8 | $0.61 | Out of Stock | Notify Me |
| 15 | 0712-880 RING,EXHAUST OUTLET-LOWER-PTD BLK | RING,EXHAUST OUTLET-LOWER-PTD BLK | 1 | $8.95 | Obsolete | View Details |
| 16 | 2706-636 BRKT,HINGE-RH-PTD BLK | BRKT,HINGE-RH-PTD BLK | 1 | $15.95 | Obsolete | View Details |
| 16 | 2706-637 BRKT,HINGE-LH-PTD BLK | BRKT,HINGE-LH-PTD BLK | 1 | $15.95 | Obsolete | View Details |
| 17 | 0616-454 Plate, Backing | Plate, Backing | 2 | $37.95 | Obsolete | View Details |
| 18 | 4639-549 RIVET MOUNTED PLUG HOLDER | RIVET MOUNTED PLUG HOLDER | 1 | $7.95 | Obsolete | View Details |
| 19 | 8061-628 Rivet | Rivet | 2 | $1.12 | Out of Stock | Notify Me |
| 20 | 0123-802 Washer | Washer | 2 | $0.20 | Available to order | 2 |
| 21 | 0606-526 Reflector, Front Amber | Reflector, Front Amber | 2 | $2.91 | Obsolete | View Details |
| 22 | 0623-269 Clip, Retaining | Clip, Retaining | 4 | $1.33 | Available to order | 4 |
| 23 | 0623-458 Bolt, Carriage | Bolt, Carriage | 2 | $0.89 | Out of Stock | Notify Me |
| 24 | 0616-396 Cap, Bumper - End | Cap, Bumper - End | 1 | $7.39 | Available to order | 1 |
| 24 | 0616-397 Cap, Bumper - End | Cap, Bumper - End | 1 | $7.39 | Available to order | 1 |
| 25 | 0623-378 SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 2 | $0.92 | Available to order | 2 |
| 26 | 0623-600 Plug | Plug | 1 | $5.19 | Available to order | 1 |
| 27 | 8060-710 Rivet | Rivet | — | $0.40 | Out of Stock | Notify Me |
| 28 | 0616-969 Channel, Hood - w/Slots | Channel, Hood - w/Slots | 2 | $19.78 | Obsolete | View Details |
| 28 | 0616-970 Channel, Hood - w/o Slots | Channel, Hood - w/o Slots | 2 | $31.27 | Obsolete | View Details |
| 29 | 8061-508 Rivet | Rivet | — | $1.53 | Available to order | 1 |
| 30 | 0712-881 RING,EXHAUST OUTLET-UPPER-PTD BLK | RING,EXHAUST OUTLET-UPPER-PTD BLK | 1 | $6.95 | Obsolete | View Details |
| 31 | 0612-470 Boot, Exhaust | Boot, Exhaust | 1 | $34.95 | Obsolete | View Details |
| 32 | 8002-041 Screw, Cap | Screw, Cap | 2 | $4.29 | Obsolete | View Details |
| 33 | 8040-246 Nut, Hex Lock - NYL 10-24 Z&Y | Nut, Hex Lock - NYL 10-24 Z&Y | 2 | $0.40 | Available to order | 2 |
| 34 | 8005-400 Screw, Socket Head | Screw, Socket Head | 2 | $1.03 | Obsolete | View Details |
| 35 | 8061-708 Rivet | Rivet | 2 | $1.12 | Out of Stock | Notify Me |
| 36 | 8017-610 SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | SCREW,MACH-TSTRH 1/4-20 X 3/4 GR2 BLK Z | 4 | $7.39 | Obsolete | View Details |
| 37 | 0712-879 Deflector, Exhaust Outlet | Deflector, Exhaust Outlet | 1 | $9.95 | Obsolete | View Details |
