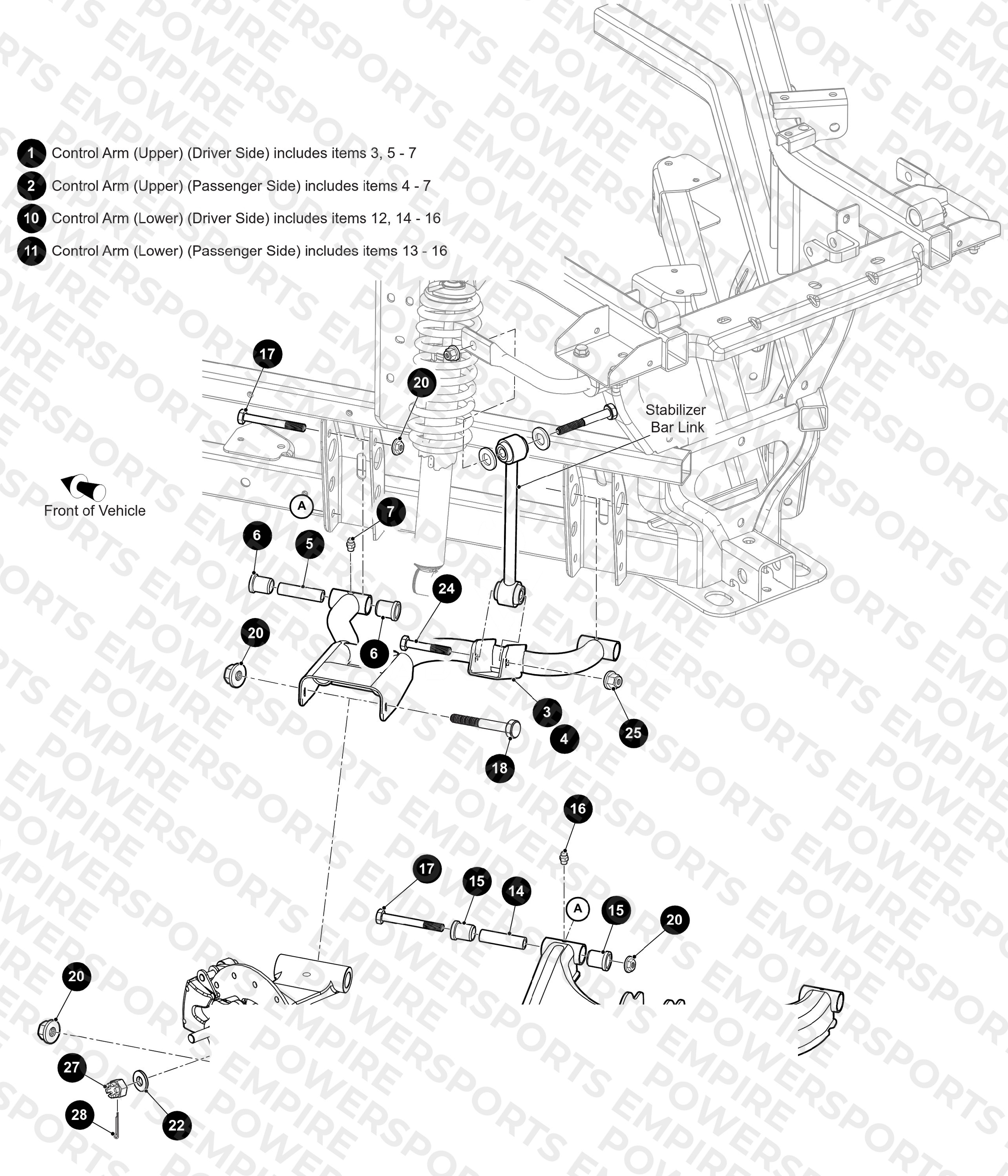

REAR CONTROL ARM ASSEMBLY
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 656599G1090 CONTROL ARM (UPPER) (DRIVER SIDE) | CONTROL ARM (UPPER) (DRIVER SIDE) (Includes Items 3, 5 - 7) | 1 | $198.95 | Obsolete | View Details |
| 2 | 656599G2090 CONTROL ARM (UPPER) (PASSENGER SIDE) | CONTROL ARM (UPPER) (PASSENGER SIDE) (Includes Items 4 - 7) | 1 | $198.95 | Obsolete | View Details |
| 3 | 652006G1390 A-ARM,REAR,UPPER,LH,BLACK-WLD | A-ARM,REAR,UPPER,LH,BLACK-WLD | 1 | $162.95 | Obsolete | View Details |
| 4 | 652006G2390 A-ARM,REAR,UPPER,LH,BLACK-WLD | A-ARM,REAR,UPPER,LH,BLACK-WLD | 1 | $162.95 | Obsolete | View Details |
| 5 | 647322G01 TUBE,10.54MM,ID,X60.95 LONG | TUBE,10.54MM,ID,X60.95 LONG | 2 | $3.89 | Available to order | 2 |
| 6 | 647320 BUSHING,FLANGED,15.875MM ID | BUSHING,FLANGED,15.875MM ID | 4 | $3.49 | Available to order | 4 |
| 7 | 400489J FITTING GREASE 1/4 - 28 THD FORM | FITTING GREASE 1/4 - 28 THD FORM | 2 | $0.33 | Available to order | 2 |
| 10 | 656598G1090 CONTROL ARM (LOWER) (DRIVER SIDE) | CONTROL ARM (LOWER) (DRIVER SIDE) (Includes Items 12, 14 - 16) | 1 | $198.95 | Obsolete | View Details |
| 11 | 656598G2090 CONTROL ARM (LOWER) (PASSENGER SIDE) | CONTROL ARM (LOWER) (PASSENGER SIDE) (Includes Items 13 - 16) | 1 | $198.95 | Obsolete | View Details |
| 12 | 653386G1390 OBS - A-ARM,REAR,LWR,LH,BLACK-WLD | OBS - A-ARM,REAR,LWR,LH,BLACK-WLD | 1 | $189.95 | Obsolete | View Details |
| 13 | 653386G2390 OBS - A-ARM,REAR,LWR,RH,BLACK-WLD | OBS - A-ARM,REAR,LWR,RH,BLACK-WLD | 1 | $189.95 | Obsolete | View Details |
| 17 | 648282 HHCS,M10X1.5X85MM | HHCS,M10X1.5X85MM | 4 | $1.79 | Available to order | 4 |
| 18 | 648283 HHCS,M10X1.5X140MM | HHCS,M10X1.5X140MM | 2 | $6.19 | Available to order | 2 |
| 20 | 648753 NUT,FLHD,PLSLK,M10 X 1.5,PC8 | NUT,FLHD,PLSLK,M10 X 1.5,PC8 | 6 | $1.59 | Available to order | 6 |
| 22 | 653546 WASHER,HARDENED,M18,DIN 125 | WASHER,HARDENED,M18,DIN 125 | 1 | $3.69 | Available to order | 1 |
| 24 | 01066G05 HHCS,M12 X 1.75 X 70MM | HHCS,M12 X 1.75 X 70MM | 1 | $2.19 | Available to order | 1 |
| 25 | 648198 NUT, PLS, LK, M12-1.75 | NUT, PLS, LK, M12-1.75 | 1 | $2.09 | Available to order | 1 |
| 27 | 653662 NUT,CASTLE,M18X1.5MM,DIN935 | NUT,CASTLE,M18X1.5MM,DIN935 | 1 | $14.19 | Available to order | 1 |
| 28 | 00798G8 COTTER PIN, 5/32 X 1 3/4 | COTTER PIN, 5/32 X 1 3/4 | 1 | $1.09 | Available to order | 1 |
