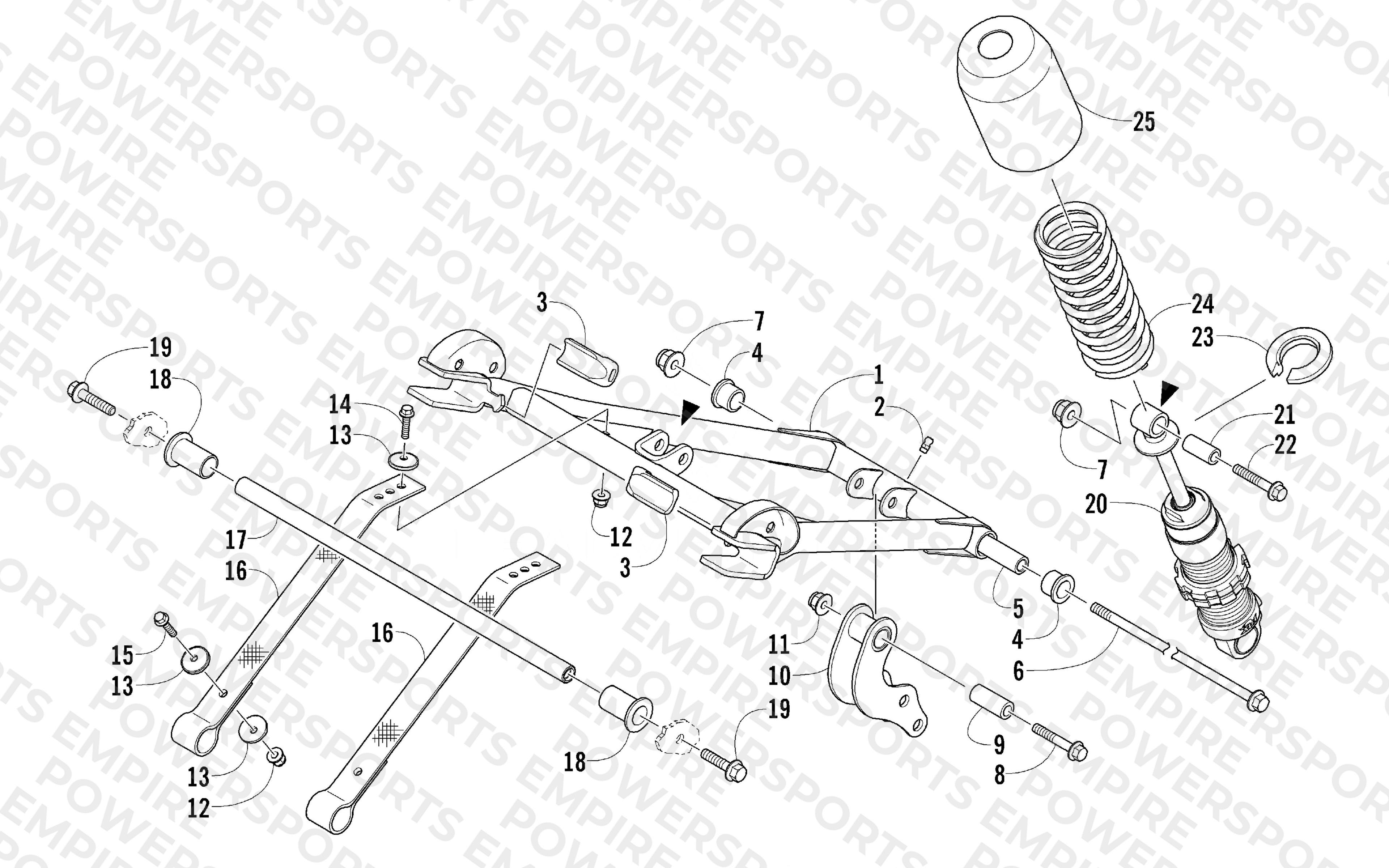

REAR SUSPENSION FRONT ARM ASSEMBLY
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 1704-755 Arm, Front Suspension Black | Arm, Front Suspension Black (inc. 2-4) | 1 | $339.95 | Out of Stock | Notify Me |
| 2 | 1623-010 Fitting, Grease | Fitting, Grease | 1 | $2.19 | Available to order | 1 |
| 3 | 3604-141 Bumper, Front Slider | Bumper, Front Slider | 2 | $4.69 | Available to order | 2 |
| 4 | 0104-386 Bushing | Bushing | 2 | $4.59 | Available to order | 2 |
| 5 | 3604-272 Axle, Inner | Axle, Inner | 1 | $23.69 | Out of Stock | Notify Me |
| 6 | 1423-064 BOLT, HFH M10-1.25X250 CL10.9 RIE SILVER | BOLT, HFH M10-1.25X250 CL10.9 RIE SILVER | 1 | $7.39 | Out of Stock | Notify Me |
| 7 | 8427-002 Nut, Lock | Nut, Lock | 2 | $1.12 | Available to order | 2 |
| 8 | 8408-850 Screw, Cap | Screw, Cap | 1 | $1.23 | Available to order | 1 |
| 9 | 2603-574 Axle, Inner | Axle, Inner | 1 | $0.71 | Available to order | 1 |
| 10 | 1704-758 Pivot, Rear Shock | Pivot, Rear Shock | 1 | $47.95 | Available to order | 1 |
| 11 | 8427-802 Nut, Lock | Nut, Lock | 1 | $0.61 | Available to order | 1 |
| 12 | 8427-602 Nut, Hex | Nut, Hex | 4 | $0.20 | Available to order | 4 |
| 13 | 0623-875 Washer | Washer | 6 | $1.89 | Available to order | 6 |
| 14 | 8408-625 Screw, Cap | Screw, Cap | 2 | $0.61 | Available to order | 2 |
| 15 | 8408-635 Screw, Machine | Screw, Machine | 2 | $0.71 | Available to order | 2 |
| 16 | 3604-413 Strap, Limiter | Strap, Limiter | 2 | $24.89 | Available to order | 2 |
| 17 | 3604-234 Axle, Front Slider | Axle, Front Slider | 1 | $68.95 | Out of Stock | Notify Me |
| 18 | 3604-233 Bushing, Flared | Bushing, Flared | 2 | $19.99 | Available to order | 2 |
| 19 | 8408-041 Screw, Cap | Screw, Cap | 2 | $1.23 | Available to order | 2 |
| 20 | 1704-739 Complete Shock Absorbert | Complete Shock Absorbert | 1 | $394.95 | Available to order | 1 |
| 21 | 3604-273 Axle | Axle | 1 | $3.09 | Available to order | 1 |
| 22 | 8408-050 Screw, Cap | Screw, Cap | 1 | $3.09 | Available to order | 1 |
| 23 | 3604-200 Retainer, Spring | Retainer, Spring | 1 | $7.39 | Available to order | 1 |
| 24 | 1704-737 Spring, Compression Black | Spring, Compression Black | 1 | $58.95 | Obsolete | View Details |
| 25 | 0604-790 Cover, Shock | Cover, Shock | 1 | $29.95 | Available to order | 1 |
