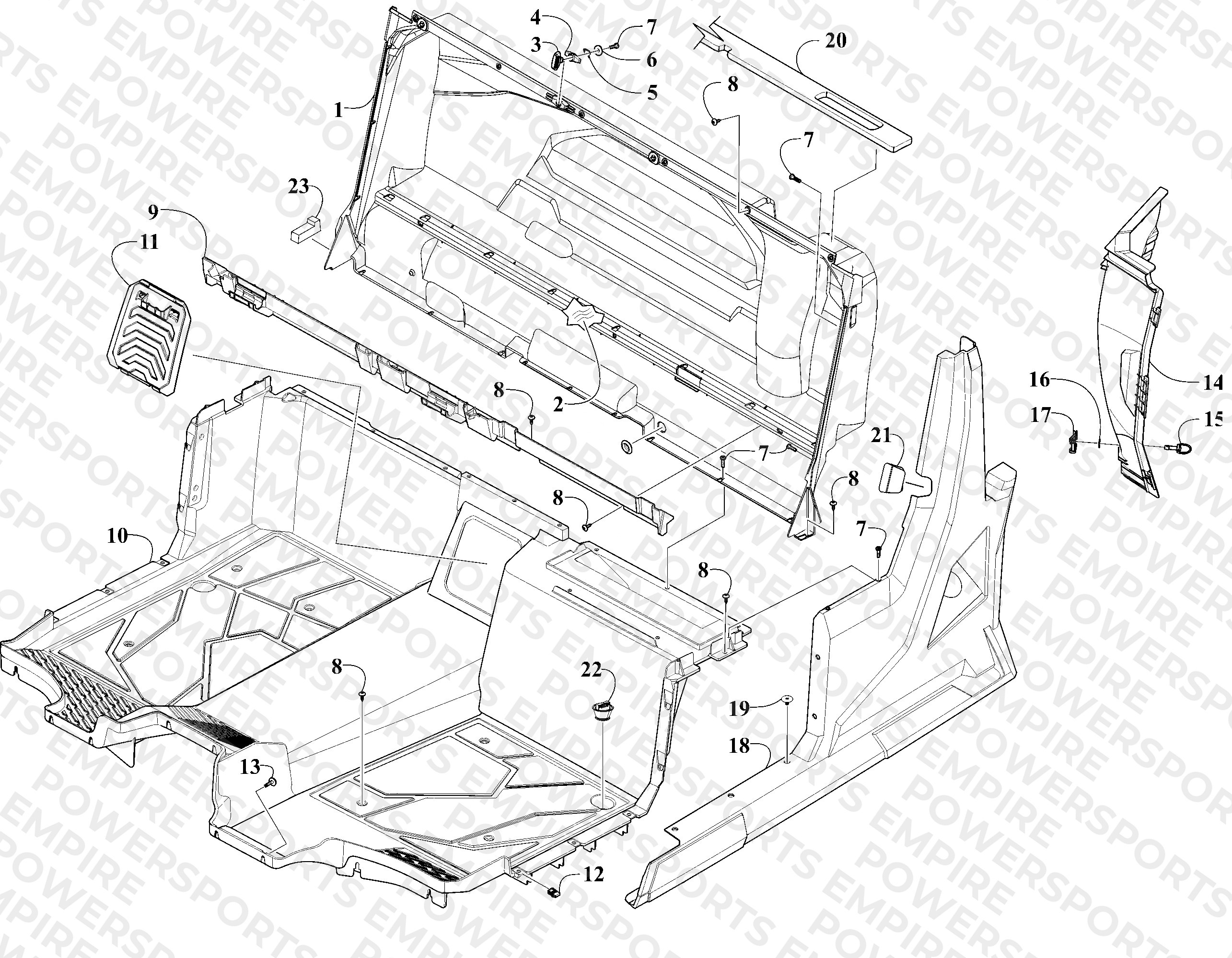

FLOOR AND SIDE PANEL ASSEMBLY [0754-582-25]
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 9506-014 Storage Box, w/Foil | Storage Box, w/Foil (inc. 2) | 1 | $185.95 | Available to order | 1 |
| 2 | 1412-129 Foil, Protective | Foil, Protective | 1 | $17.79 | Out of Stock | Notify Me |
| 3 | 7606-265 Knob, Hold-Down | Knob, Hold-Down | 1 | $1.69 | Available to order | 1 |
| 4 | 7606-296 Plate, Backing | Plate, Backing | 1 | $1.69 | Available to order | 1 |
| 5 | 2623-155 Clip, Retaining | Clip, Retaining | 1 | $3.19 | Available to order | 1 |
| 6 | 2623-171 Washer | Washer | 1 | $1.12 | Available to order | 1 |
| 7 | 1623-933 Screw, Self-Tapping | Screw, Self-Tapping | — | $0.40 | Available to order | 1 |
| 8 | 2623-163 Screw, Self-Tapping | Screw, Self-Tapping | — | $1.53 | Available to order | 1 |
| 9 | 6406-015 Panel | Panel | 1 | $37.95 | Out of Stock | Notify Me |
| 10 | 5406-554 Floor | Floor | 1 | $405.95 | Available to order | 1 |
| 11 | 6406-016 Panel, Cover | Panel, Cover | 1 | $16.09 | Available to order | 1 |
| 12 | 0423-577 Clip, U-Nut | Clip, U-Nut | 10 | $0.50 | Obsolete | View Details |
| 13 | 0423-609 Screw, Machine | Screw, Machine | 10 | $1.12 | Available to order | 10 |
| 14 | 5406-674 Panel, Protect - Right | Panel, Protect - Right | 1 | $37.95 | Available to order | 1 |
| 14 | 5406-675 Panel, Protect - Left | Panel, Protect - Left | 1 | $37.95 | Available to order | 1 |
| 15 | 2623-003 Pin, Retaining | Pin, Retaining | 5 | $11.09 | Available to order | 5 |
| 16 | 2623-004 Nut, Push | Nut, Push | 5 | $4.79 | Available to order | 5 |
| 17 | 2623-005 Clip, Retaining | Clip, Retaining | 5 | $2.99 | Available to order | 5 |
| 18 | 5406-556 Panel, Side - Cab - Right | Panel, Side - Cab - Right | 1 | $86.95 | Available to order | 1 |
| 18 | 5406-557 Panel, Side - Cab - Left | Panel, Side - Cab - Left | 1 | $86.95 | Available to order | 1 |
| 19 | 1423-133 Screw, Shoulder | Screw, Shoulder | 6 | $3.89 | Available to order | 6 |
| 20 | 0417-046 Foam, Storage Box-Behind Seat | Foam, Storage Box-Behind Seat | 1 | $17.79 | Available to order | 1 |
| 21 | 436-00028-R SEAL,SHOULDER RESTRAINT-RH | SEAL,SHOULDER RESTRAINT-RH | 1 | $17.69 | Out of Stock | Notify Me |
| 21 | 436-00028-L SEAL,SHOULDER RESTRAINT-LH | SEAL,SHOULDER RESTRAINT-LH | 1 | $17.69 | Out of Stock | Notify Me |
| 22 | 9406-098 PLUG,FLOOR-CAB | PLUG,FLOOR-CAB | 1 | $2.49 | Out of Stock | Notify Me |
| 23 | 436-00030-R SEAL,SEATBELT-LWR-RH | SEAL,SEATBELT-LWR-RH | 1 | $4.69 | Out of Stock | Notify Me |
| 23 | 436-00030-L SEAL,SEATBELT-LWR-LH | SEAL,SEATBELT-LWR-LH | 1 | $4.69 | Out of Stock | Notify Me |
