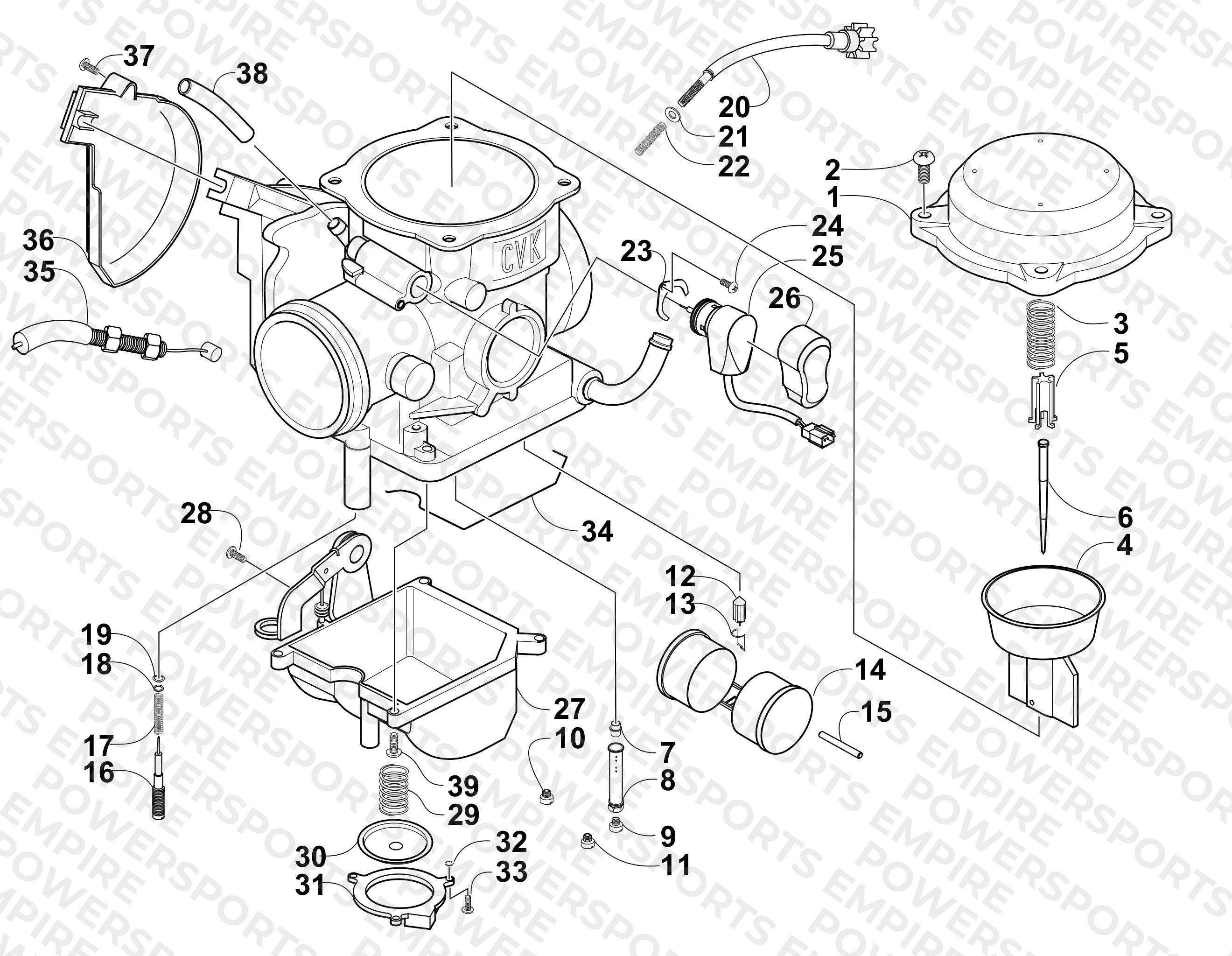

CARBURETOR
Parts (37)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0470-470 CARB,CVK 34-AE | CARB,CVK 34-AE CVK34-AE | 1 | $861.95 | Available to order | 1 | |
| 1 | 5507-001 COVER, TOP | COVER, TOP | 1 | $80.95 | Available to order | 1 |
| 2 | 5507-002 SCREW, TOP COVER | SCREW, TOP COVER | 4 | $0.42 | Available to order | 4 |
| 3 | 5507-066 SPRING | SPRING | 1 | $6.89 | Available to order | 1 |
| 4 | 5507-004 PISTON, VACUUM | PISTON, VACUUM | 1 | $136.95 | Out of Stock | Notify Me |
| 5 | 5507-005 SPRING SEAT | SPRING SEAT | 1 | $3.39 | Out of Stock | Notify Me |
| 6 | 5507-110 JET NEEDLE | JET NEEDLE | 1 | $11.29 | Available to order | 1 |
| 7 | 5507-007 NEEDLE JET | NEEDLE JET | 1 | $28.95 | Available to order | 1 |
| 8 | 5507-047 HOLDER, NEEDLE- JET | HOLDER, NEEDLE- JET | 1 | $28.95 | Out of Stock | Notify Me |
| 9 | 5507-043 MAIN JET 142 | MAIN JET 142 | 1 | $17.59 | Available to order | 1 |
| 9 | 5507-009 MAIN JET 150 | MAIN JET 150 | 1 | $17.59 | Available to order | 1 |
| 9 | 5507-041 MAIN JET 148 | MAIN JET 148 | 1 | $17.59 | Available to order | 1 |
| 9 | 5507-042 MAIN JET 145 | MAIN JET 145 | 1 | $19.39 | Available to order | 1 |
| 9 | 5507-044 MAIN JET 140 | MAIN JET 140 | 1 | $24.19 | Available to order | 1 |
| 10 | 5507-246 JET,SLOW #38 | JET,SLOW #38 | 1 | $21.99 | Out of Stock | Notify Me |
| 11 | 5507-097 STARTER JET 75 | STARTER JET 75 | 1 | $21.99 | Available to order | 1 |
| 12 | 5507-107 FLOAT VALVE SET | FLOAT VALVE SET (inc. 13) | 1 | $37.95 | Available to order | 1 |
| 14 | 5507-039 FLOAT SET | FLOAT SET (inc. 15) | 1 | $40.95 | Out of Stock | Notify Me |
| 16 | 5507-111 PILOT SCREW SET | PILOT SCREW SET (inc. 17-19) | 1 | $28.95 | Available to order | 1 |
| 20 | 5507-027 STOP SCREW COMP. | STOP SCREW COMP. | 1 | $145.95 | Available to order | 1 |
| 21 | 5507-028 WASHER | WASHER | 1 | $0.42 | Available to order | 1 |
| 22 | 5507-029 SPRING | SPRING | 1 | $6.29 | Available to order | 1 |
| 23 | 5507-115 PLATE | PLATE | 1 | $19.09 | Available to order | 1 |
| 24 | 5507-117 SCREW | SCREW | 1 | $1.31 | Out of Stock | Notify Me |
| 25 | 5507-180 Choke, Electric | Choke, Electric | 1 | $284.95 | Out of Stock | Notify Me |
| 26 | 5507-114 COVER | COVER | 1 | $73.95 | Out of Stock | Notify Me |
| 28 | 5507-050 SCREW, DRAIN | SCREW, DRAIN | 1 | $3.19 | Out of Stock | Notify Me |
| 29 | 5507-032 SPRING | SPRING | 1 | $14.69 | Out of Stock | Notify Me |
| 30 | 5507-197 Diaphragm | Diaphragm | 1 | $47.95 | Out of Stock | Notify Me |
| 32 | 5507-034 U RING | U RING | 1 | $3.19 | Out of Stock | Notify Me |
| 33 | 5507-035 SCREW | SCREW | 3 | $1.31 | Available to order | 3 |
| 34 | 5507-067 O-RING, FLOAT CHAMBER | O-RING, FLOAT CHAMBER | 1 | $17.59 | Out of Stock | Notify Me |
| 35 | 0487-049 CABLE,THROTTLE | CABLE,THROTTLE | 1 | $75.95 | Available to order | 1 |
| 36 | 5507-036 COVER | COVER | 1 | $5.29 | Available to order | 1 |
| 37 | 5507-037 SCREW(TOP COVER) | SCREW(TOP COVER) | 1 | $1.01 | Available to order | 1 |
| 38 | 0410-056 HOSE,VENT-CARBURATOR | HOSE,VENT-CARBURATOR | 1 | $17.59 | Available to order | 1 |
| 39 | 5507-017 SCREW | SCREW | 4 | $8.49 | Out of Stock | Notify Me |
