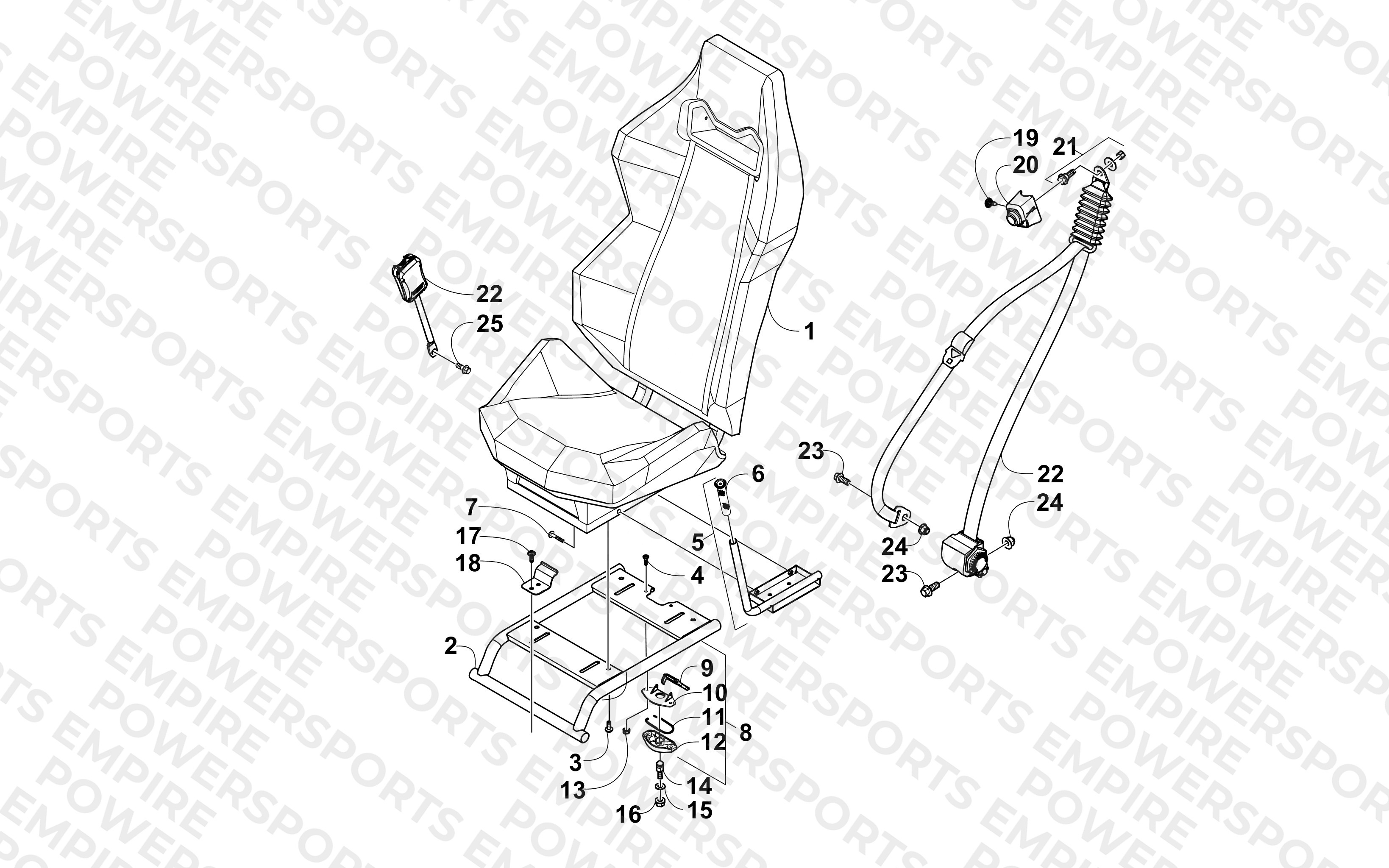

SEAT ASSEMBLY
Parts (26)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 4506-532 SEAT - ASSEMBLY | SEAT - ASSEMBLY | 2 | $737.95 | Out of Stock | Notify Me |
| 2 | 4506-662 SUPPORT, SEAT-PTD BLACK | SUPPORT, SEAT-PTD BLACK | 2 | $110.95 | Available to order | 2 |
| 3 | 0423-817 SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | SCREW,MACH-TSTRH M8X1.25X20 CL8.8 W/LOCK | 8 | $1.69 | Available to order | 8 |
| 4 | 8468-620 Screw, Machine | Screw, Machine | 4 | $0.71 | Available to order | 4 |
| 5 | 5506-173 HANDLE - ASSY | HANDLE - ASSY (inc. 6) | 1 | $111.95 | Out of Stock | Notify Me |
| 6 | 4606-945 Grip | Grip | 1 | $19.99 | Available to order | 1 |
| 7 | 8477-635 SCREW,MACH-TSTRH M6X1.0X35 Z&BLK | SCREW,MACH-TSTRH M6X1.0X35 Z&BLK | 2 | $1.02 | Available to order | 2 |
| 8 | 2706-164 Latch, Seat - Assembly | Latch, Seat - Assembly (inc. 9-12) | 2 | $17.39 | Available to order | 2 |
| 9 | 2606-854 LEVER,RELEASE-SEATLATCH | LEVER,RELEASE-SEATLATCH | 2 | $11.19 | Available to order | 2 |
| 10 | 1673-635 COVER,LATCH-SEAT | COVER,LATCH-SEAT | 2 | $4.48 | Obsolete | View Details |
| 11 | 0673-023 CLIP,SPRING RETAINING-SS | CLIP,SPRING RETAINING-SS | 2 | $24.95 | Obsolete | View Details |
| 12 | 1673-634 BACK,LATCH-SEAT | BACK,LATCH-SEAT | 2 | $6.37 | Obsolete | View Details |
| 13 | 0623-038 Nut | Nut | 4 | $0.40 | Available to order | 4 |
| 14 | 0423-559 Stud, Latch - Seat | Stud, Latch - Seat | 2 | $5.79 | Available to order | 2 |
| 15 | 0423-073 WASHER,FLAT-1.38 OD X .413 ID X .134 TH | WASHER,FLAT-1.38 OD X .413 ID X .134 TH | 2 | $1.69 | Available to order | 2 |
| 16 | 8424-002 Nut, Lock | Nut, Lock | 2 | $0.71 | Available to order | 2 |
| 17 | 8408-821 Screw, Cap | Screw, Cap | 8 | $1.23 | Available to order | 8 |
| 18 | 4506-691 BRACKET, SEAT MOUNTING-PTD BLACK | BRACKET, SEAT MOUNTING-PTD BLACK | 4 | $11.58 | Obsolete | View Details |
| 19 | 0623-784 Screw, Self-Tapping | Screw, Self-Tapping | 4 | $1.53 | Available to order | 4 |
| 20 | 2416-936 COVER,SEATBELT-RH | COVER,SEATBELT-RH | 1 | $24.19 | Out of Stock | Notify Me |
| 20 | 2416-937 COVER,SEATBELT-LH | COVER,SEATBELT-LH | 1 | $23.53 | Obsolete | View Details |
| 21 | 0423-915 Screw, Shoulder - Assembly | Screw, Shoulder - Assembly | 2 | $24.19 | Available to order | 2 |
| 22 | 5506-159 BELT,SEAT-3PT 11.5" NAR CABLE-ASSY | BELT,SEAT-3PT 11.5" NAR CABLE-ASSY | 2 | $367.95 | Out of Stock | Notify Me |
| 23 | 1423-182 Screw, Cap | Screw, Cap | 4 | $4.49 | Available to order | 4 |
| 24 | 1423-184 Nut, Lock | Nut, Lock | 4 | $1.79 | Available to order | 4 |
| 25 | 1423-183 SCREW,CAP-HFHM12X1.75X30CL10.9RIE W/2353 | SCREW,CAP-HFHM12X1.75X30CL10.9RIE W/2353 | 2 | $2.39 | Available to order | 2 |
