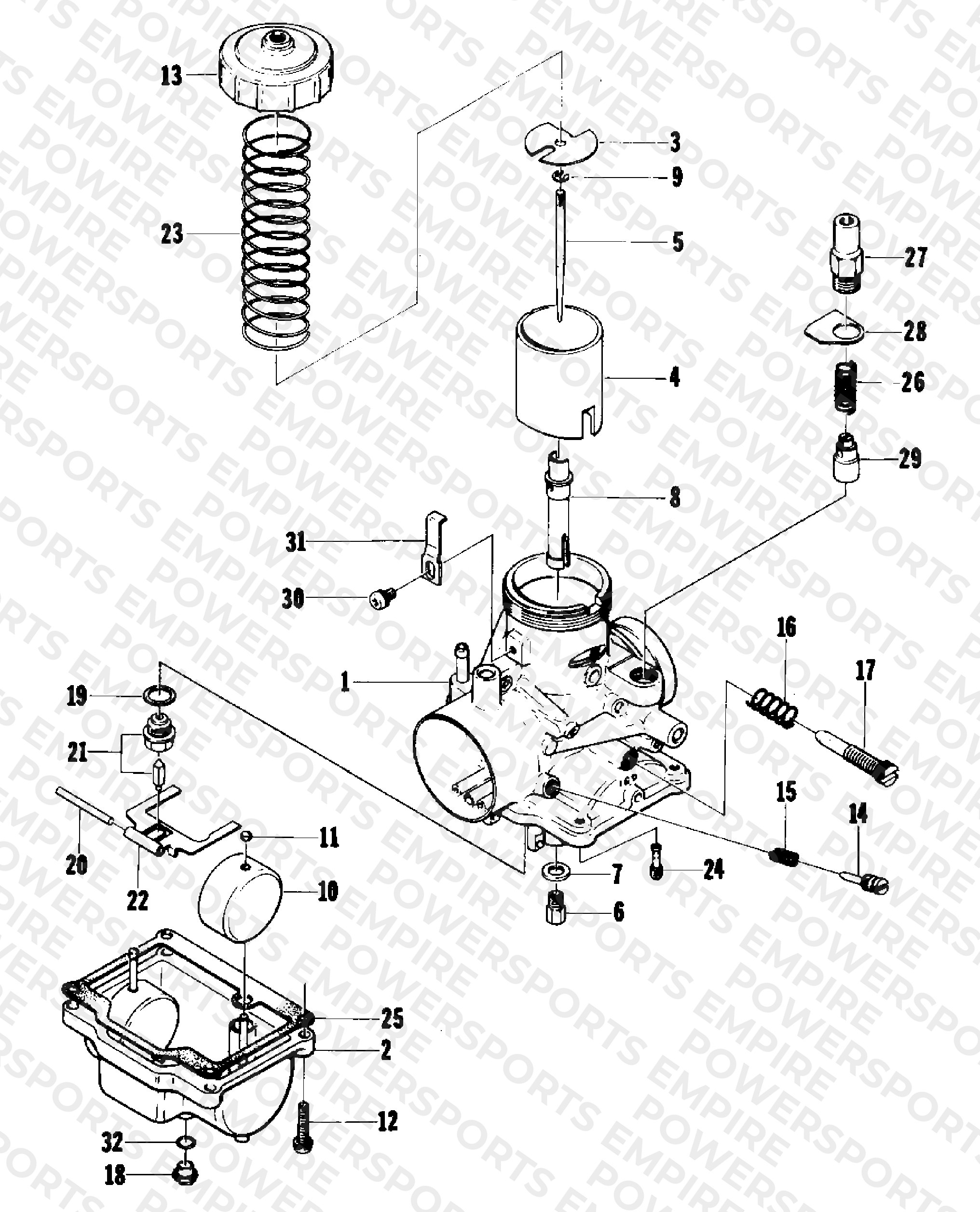

CARBURETOR VW34-96
Parts (32)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 0170-087 Carburetor Assembly | Carburetor Assembly Not Illustrated | — | $77.38 | Obsolete | View Details | |
| 2 | 6505-189 Chamber, Float | Chamber, Float | 1 | $47.95 | Obsolete | View Details |
| 3 | 6505-001 Plate | Plate | 1 | $13.69 | Available to order | 1 |
| 4 | 6505-257 Piston Valve CA2.0 | Piston Valve CA2.0 | 1 | $41.95 | Obsolete | View Details |
| 5 | 6505-003 Jet Needle - 6DH4 | Jet Needle - 6DH4 | 1 | $19.99 | Out of Stock | Notify Me |
| 6 | 6505-145 Main Jet - 210 | Main Jet - 210 | 1 | $8.59 | Available to order | 1 |
| 7 | 6505-006 Washer | Washer | 1 | $1.53 | Available to order | 1 |
| 8 | 6505-007 Needle Jet (VM-Style) - P-0 (166) | Needle Jet (VM-Style) - P-0 (166) | 1 | $35.59 | Obsolete | View Details |
| 9 | 6505-008 E-Ring | E-Ring | 1 | $4.49 | Available to order | 1 |
| 10 | 6505-009 Float | Float | 2 | $34.95 | Out of Stock | Notify Me |
| 11 | 6505-010 Cap | Cap | 2 | $1.79 | Available to order | 2 |
| 12 | 6505-014 Screw, Machine | Screw, Machine | 4 | $1.79 | Available to order | 4 |
| 13 | 6505-018 Top, Mixing Body | Top, Mixing Body | 1 | $72.95 | Out of Stock | Notify Me |
| 14 | 6505-019 Screw, Pilot Air | Screw, Pilot Air | 1 | $13.69 | Available to order | 1 |
| 15 | 6505-020 Spring, Pilot Air Screw | Spring, Pilot Air Screw | 1 | $3.89 | Available to order | 1 |
| 16 | 6505-021 Spring, Throttle Stop Screw | Spring, Throttle Stop Screw | 1 | $3.89 | Available to order | 1 |
| 17 | 6505-022 Screw, Throttle Stop | Screw, Throttle Stop | 1 | $17.39 | Available to order | 1 |
| 18 | 6505-184 Screw, Drain | Screw, Drain | 1 | $17.39 | Out of Stock | Notify Me |
| 19 | 6505-024 Washer | Washer | 1 | $1.53 | Available to order | 1 |
| 20 | 6505-153 Pin | Pin | 1 | $3.49 | Available to order | 1 |
| 21 | 6505-160 Needle Valve Assembly 1.5 | Needle Valve Assembly 1.5 | 1 | $57.95 | Out of Stock | Notify Me |
| 22 | 6505-027 Arm, Float | Arm, Float | 1 | $16.19 | Available to order | 1 |
| 23 | 6505-242 Spring, Piston Valve - Carburetor | Spring, Piston Valve - Carburetor | 1 | $22.39 | Available to order | 1 |
| 24 | 6505-075 Pilot Jet - 25 | Pilot Jet - 25 | 1 | $7.39 | Available to order | 1 |
| 25 | 6505-030 Gasket, Float Chamber | Gasket, Float Chamber | 1 | $14.89 | Available to order | 1 |
| 26 | 6505-033 Spring, Starter Plunger | Spring, Starter Plunger | 1 | $19.99 | Available to order | 1 |
| 27 | 6505-188 Cap, Starter Plunger | Cap, Starter Plunger | 1 | $18.59 | Available to order | 1 |
| 28 | 6505-187 Washer | Washer | 1 | $2.79 | Available to order | 1 |
| 29 | 6505-035 Plunger, Starter | Plunger, Starter | 1 | $19.99 | Available to order | 1 |
| 30 | 6505-036 Screw, Machine | Screw, Machine | 1 | $1.53 | Available to order | 1 |
| 31 | 6505-186 Plate, Retaining | Plate, Retaining | 1 | $5.39 | Out of Stock | Notify Me |
| 32 | 6505-243 O-Ring, Drain Plug | O-Ring, Drain Plug | 1 | $5.39 | Available to order | 1 |
