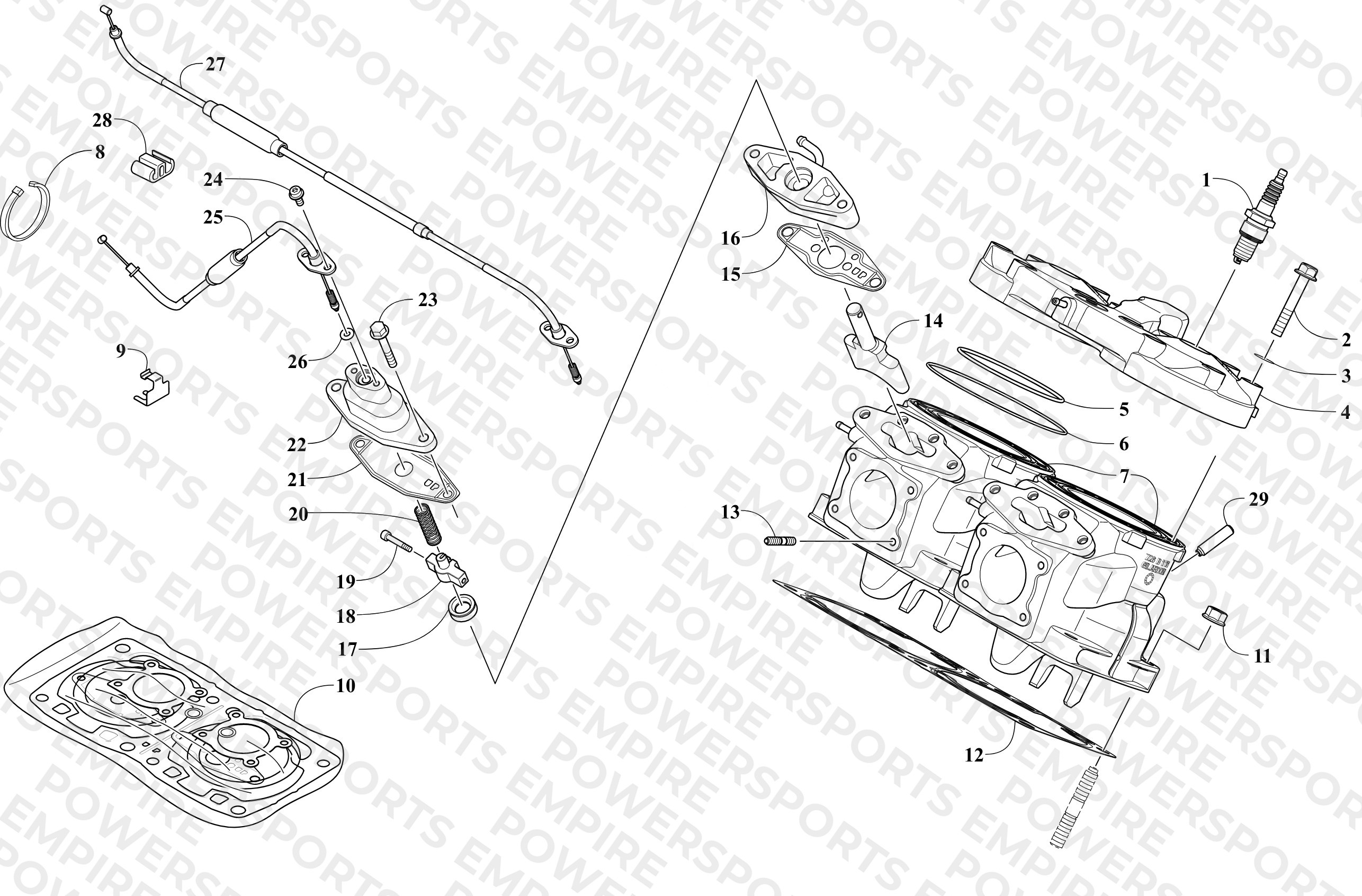

CYLINDER AND HEAD ASSEMBLY
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 0217-762 Plug, Spark | Plug, Spark | 2 | $4.69 | Available to order | 2 |
| 2 | 0923-064 Screw, Cap | Screw, Cap | 12 | $1.12 | Available to order | 12 |
| 3 | 0930-019 O-Ring | O-Ring | 12 | $2.49 | Available to order | 12 |
| 4 | 1904-008 Head, Cylinder | Head, Cylinder | 1 | $370.95 | Available to order | 1 |
| 5 | 0930-020 O-Ring | O-Ring | 2 | $9.89 | Available to order | 2 |
| 6 | 0930-018 O-Ring | O-Ring | 2 | $2.79 | Available to order | 2 |
| 7 | 1904-018 Cylinder | Cylinder | 2 | $685.75 | Obsolete | View Details |
| 8 | 0123-788 Tie, Cable - 8 in | Tie, Cable - 8 in | — | $0.20 | Available to order | 1 |
| 9 | 0909-002 Clip, Retaining | Clip, Retaining | 1 | $18.59 | Available to order | 1 |
| 10 | 8639-414 Gasket Set - Top End | Gasket Set - Top End | 1 | $211.95 | Available to order | 1 |
| 10 | 8639-415 Gasket Set - Complete | Gasket Set - Complete | 1 | $350.95 | Out of Stock | Notify Me |
| 11 | 0923-067 Nut | Nut | 8 | $0.45 | Obsolete | View Details |
| 12 | 0930-049 Gasket, Cylinder | Gasket, Cylinder | 1 | $50.95 | Available to order | 1 |
| 13 | 0923-053 Bolt, Stud | Bolt, Stud | 8 | $2.89 | Available to order | 8 |
| 14 | 0909-051 Valve, Exhaust | Valve, Exhaust | 2 | $101.95 | Available to order | 2 |
| 15 | 0930-022 Gasket, Exhaust Valve Case | Gasket, Exhaust Valve Case | 2 | $29.95 | Available to order | 2 |
| 16 | 1909-001 Plate, Exhaust Valve | Plate, Exhaust Valve (inc. 17) | 2 | $143.95 | Available to order | 2 |
| 17 | 0930-059 Seal, Oil | Seal, Oil | 2 | $9.89 | Obsolete | View Details |
| 18 | 0909-041 Clamp, Exhaust Valve | Clamp, Exhaust Valve | 2 | $33.95 | Available to order | 2 |
| 19 | 0923-005 Pin, Exhaust Valve | Pin, Exhaust Valve | 2 | $34.95 | Available to order | 2 |
| 20 | 0909-020 Spring | Spring | 2 | $3.69 | Available to order | 2 |
| 21 | 0930-010 Gasket, Exhaust Valve Cover | Gasket, Exhaust Valve Cover | 2 | $23.69 | Available to order | 2 |
| 22 | 0909-018 Cover, Exhaust Valve | Cover, Exhaust Valve | 2 | $34.95 | Available to order | 2 |
| 23 | 0923-021 Screw, Cap | Screw, Cap | 4 | $3.09 | Available to order | 4 |
| 24 | 0923-002 Screw, Cap | Screw, Cap | 4 | $0.61 | Available to order | 4 |
| 25 | 0909-044 Cable, Exhaust Valve - MAG | Cable, Exhaust Valve - MAG | 1 | $107.95 | Available to order | 1 |
| 26 | 0930-008 O-Ring | O-Ring | 2 | $1.23 | Available to order | 2 |
| 27 | 0909-043 Cable, Exhaust Valve - PTO | Cable, Exhaust Valve - PTO | 1 | $114.95 | Available to order | 1 |
| 28 | 0909-001 Clamp, Exhaust Valve Cable | Clamp, Exhaust Valve Cable | 1 | $7.39 | Available to order | 1 |
| 29 | 0923-046 Bolt, Stud | Bolt, Stud | 4 | $23.69 | Available to order | 4 |
