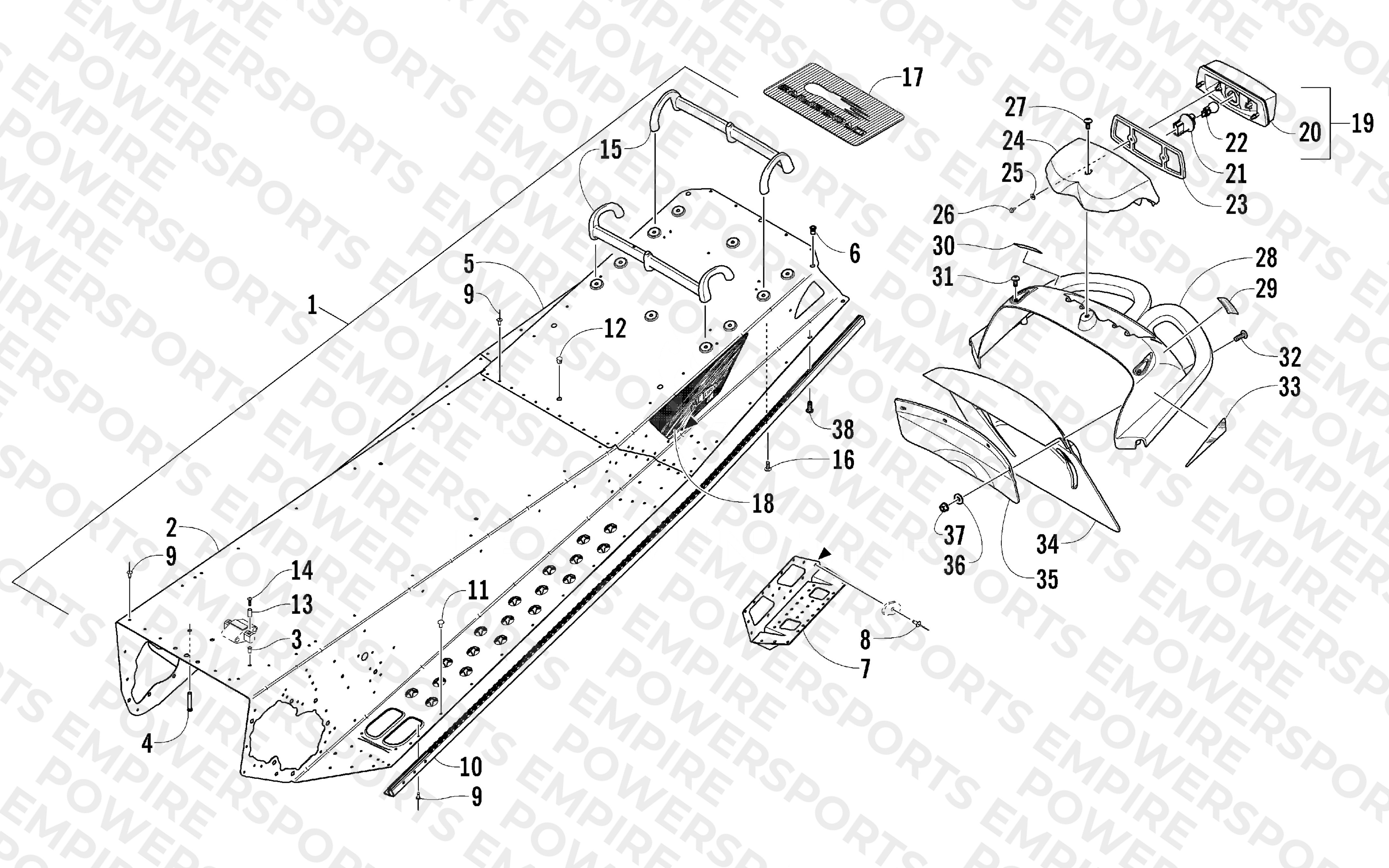

TUNNEL, REAR BUMPER, AND TAILLIGHT ASSEMBLY
Parts (44)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1707-107 Complete Chassis Assembly | Complete Chassis Assembly | 1 | $1846.95 | Obsolete | View Details | |
| 1 | 1718-941 Tunnel Assembly | Tunnel Assembly (inc. 2-9) | 1 | $550.95 | Obsolete | View Details |
| 2 | 1707-064 Tunnel, Front | Tunnel, Front (inc. 3-4) | 1 | $268.95 | Obsolete | View Details |
| 3 | 1623-127 Insert | Insert | 2 | $6.29 | Available to order | 2 |
| 4 | 1623-070 Stud, Self-Clinching | Stud, Self-Clinching | 1 | — | Obsolete | View Details |
| 5 | 2718-057 TUNNEL,REAR W/INSERTS-PTD BLK | TUNNEL,REAR W/INSERTS-PTD BLK (inc. 6) | 1 | $771.95 | Obsolete | View Details |
| 6 | 0623-582 Insert | Insert | 2 | $0.40 | Available to order | 2 |
| 7 | 3706-152 Bracket, Suspension Mounting - Right - Rear | Bracket, Suspension Mounting - Right - Rear | 1 | $23.95 | Obsolete | View Details |
| 7 | 3706-153 Bracket, Suspension Mounting - Left - Rear | Bracket, Suspension Mounting - Left - Rear | 1 | $25.95 | Obsolete | View Details |
| 8 | 8060-686 Rivet - Zinc | Rivet - Zinc | — | $0.50 | Available to order | 1 |
| 9 | 8060-484 Rivet | Rivet | 18 | $0.50 | Available to order | 18 |
| 10 | 3706-290 Roll, Tunnel - Right | Roll, Tunnel - Right | 1 | $56.95 | Obsolete | View Details |
| 10 | 3706-291 Roll, Tunnel - Left | Roll, Tunnel - Left | 1 | $43.95 | Obsolete | View Details |
| 11 | 0123-418 Rivet, Solid | Rivet, Solid | — | $0.81 | Available to order | 1 |
| 11 | 8060-486 Rivet | Rivet Optional | — | $0.30 | Available to order | 1 |
| 12 | 0623-562 Plug | Plug | 1 | $1.69 | Available to order | 1 |
| 13 | 1623-045 Spacer | Spacer | 2 | $0.71 | Available to order | 2 |
| 14 | 8017-406 Screw, Machine | Screw, Machine | 2 | $1.09 | Available to order | 2 |
| 15 | 3606-584 Rack | Rack | 2 | $295.87 | Obsolete | View Details |
| 16 | 8017-577 Screw, Machine | Screw, Machine | 10 | $1.19 | Obsolete | View Details |
| 17 | 4606-149 Pad, Rubber | Pad, Rubber | 1 | $19.35 | Obsolete | View Details |
| 18 | 7611-042 Decal, Tunnel - Right | Decal, Tunnel - Right | 1 | $29.41 | Obsolete | View Details |
| 18 | 7611-043 Decal, Tunnel - Left | Decal, Tunnel - Left | 1 | $29.41 | Obsolete | View Details |
| 19 | 0509-022 TAILLIGHT,ASSY | TAILLIGHT,ASSY (inc. 20-22) | 1 | $92.95 | Available to order | 1 |
| 20 | 0509-025 HOUSING,TAILLIGHT-ASSY | HOUSING,TAILLIGHT-ASSY | 1 | $76.95 | Out of Stock | Notify Me |
| 21 | 0409-057 SOCKET,TAIL LIGHT | SOCKET,TAIL LIGHT | 1 | $16.19 | Available to order | 1 |
| 22 | 0409-056 BULB,TAIL LIGHT-3157 | BULB,TAIL LIGHT-3157 | 1 | $21.19 | Available to order | 1 |
| 23 | 4606-382 Spacer, Taillight | Spacer, Taillight | 2 | $21.39 | Available to order | 2 |
| 24 | 3606-747 Housing, Taillight Mounting | Housing, Taillight Mounting | 1 | $119.95 | Obsolete | View Details |
| 25 | 8050-127 Washer | Washer | 2 | $1.59 | Available to order | 2 |
| 26 | 0623-297 Screw, Self-Tapping | Screw, Self-Tapping | 2 | $0.81 | Available to order | 2 |
| 27 | 1623-513 Screw, Machine | Screw, Machine | 1 | $3.36 | Obsolete | View Details |
| 28 | 3606-431 Bumper, Rear | Bumper, Rear | 1 | $162.95 | Obsolete | View Details |
| 29 | 5611-853 Decal, Warning - Towing (English) | Decal, Warning - Towing (English) (English) | 1 | $2.89 | Available to order | 1 |
| 30 | 5611-852 Decal, Warning - Towing (French) | Decal, Warning - Towing (French) (French) | 1 | $2.59 | Available to order | 1 |
| 31 | 8017-607 Screw, Machine | Screw, Machine | 2 | $3.89 | Available to order | 2 |
| 32 | 8017-581 SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | SCREW,MACH-TSTRH 1/4-20 X 7/8 GR2 Z&Y | 4 | $7.23 | Obsolete | View Details |
| 33 | 6611-012 Decal, Reflector - Red - Right | Decal, Reflector - Red - Right | 1 | $16.79 | Available to order | 1 |
| 33 | 6611-013 Decal, Reflector - Red - Left | Decal, Reflector - Red - Left | 1 | $16.79 | Available to order | 1 |
| 34 | 4606-227 SNOWFLAP,BLK-W/7611-113 DECAL | SNOWFLAP,BLK-W/7611-113 DECAL | 1 | $101.95 | Obsolete | View Details |
| 35 | 3606-776 Support, Snowflap | Support, Snowflap | 1 | $51.95 | Available to order | 1 |
| 36 | 0623-184 Washer | Washer | 4 | $1.23 | Available to order | 4 |
| 37 | 8047-366 Nut, Lock | Nut, Lock | 4 | $0.50 | Available to order | 4 |
| 38 | 1623-022 Screw, Self-Tapping | Screw, Self-Tapping | 4 | $8.59 | Available to order | 4 |
