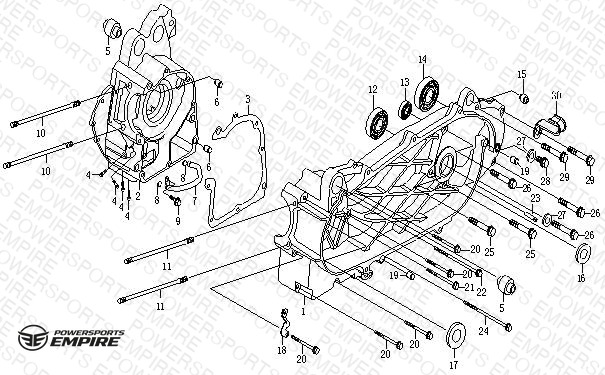

E01 — CRANKCASE ASSY
Parts (29)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0030-011200-0080 LEFT CRANKCASE COMP. | LEFT CRANKCASE COMP. | 1 | $307.99 | Obsolete | View Details |
| 02 | 0030-011300-0080 RIGHT CRANKCASE COMP. | RIGHT CRANKCASE COMP. | 1 | $142.99 | Obsolete | View Details |
| 03 | 0030-011003 GASKET,CRANKCASE COMP. | GASKET,CRANKCASE COMP. NO ASBESTOS | 1 | $3.44 | Obsolete | View Details |
| 04 | 30101-050006420 SCREW, M5x6 | SCREW, M5x6 | 6 | $1.14 | Obsolete | View Details |
| 05 | 0020-011400 BUSH SET, FRONT CUSHION | BUSH SET, FRONT CUSHION | 2 | $5.74 | Obsolete | View Details |
| 06 | 0010-021005 DOWEL PIN f 10x14 | DOWEL PIN f 10x14 | 6 | $1.25 | Available to order | 6 |
| 07 | 0010-011600-0010 INNER OIL PIPE SET | INNER OIL PIPE SET | 1 | $4.59 | Obsolete | View Details |
| 08 | 0010-011006 O-RING, 9X1.7 | O-RING, 9X1.7 | 2 | $1.14 | Obsolete | View Details |
| 09 | 0010-021019-0030 BOLT M6x12 | BOLT M6x12 | 6 | — | Obsolete | View Details |
| 10 | 0030-011005-0020 BOLT B, CYLINDER STUD | BOLT B, CYLINDER STUD | 1 | $4.59 | Obsolete | View Details |
| 11 | 0030-011004-0020 BOLT A, CYLINDER STUD | BOLT A, CYLINDER STUD | 1 | $4.59 | Obsolete | View Details |
| 12 | 30499-02200 BEARING, 22x50x14 | BEARING, 22x50x14 | 1 | $45.99 | Obsolete | View Details |
| 13 | 30499-01500 BEARING 6202 | BEARING 6202 | 1 | $19.54 | Available to order | 1 |
| 14 | 30499-02002 BEARING 6004 | BEARING 6004 GB?T276/6202 | 1 | $11.49 | Obsolete | View Details |
| 15 | 0010-011500 BUSH, REAR SHOCK ABSORBER | BUSH, REAR SHOCK ABSORBER | 1 | — | Obsolete | View Details |
| 16 | 30501-022000F OIL SEAL | OIL SEAL | 1 | $11.49 | Obsolete | View Details |
| 17 | 0010-011002 OIL SEAL, 25X40X8 | OIL SEAL, 25X40X8 | 1 | $11.49 | Available to order | 1 |
| 18 | 0030-011800-0010 SMALL AIR CLEANER BRACKET | SMALL AIR CLEANER BRACKET | 1 | $2.29 | Obsolete | View Details |
| 19 | 0010-011007 DOWEL PIN, f10X16 | DOWEL PIN, f10X16 | 6 | $1.14 | Obsolete | View Details |
| 20 | 0010-011017-0030 BOLT Mx60 | BOLT Mx60 | 6 | $1.14 | Obsolete | View Details |
| 21 | 0020-011018-0030 BOLT M6x70 | BOLT M6x70 | 6 | — | Obsolete | View Details |
| 22 | 0010-011015-0030 BOLT,M6x100 | BOLT,M6x100 | 6 | $3.44 | Obsolete | View Details |
| 23 | 0110-013010-0010 JOINT, BREATHER | JOINT, BREATHER | 1 | $3.44 | Obsolete | View Details |
| 24 | 0030-011006-0030 BOLT M6x105 | BOLT M6x105 | 6 | $2.29 | Obsolete | View Details |
| 25 | 0040-012006-0030 BOLT M8×50 | BOLT M8×50 | 6 | $3.44 | Obsolete | View Details |
| 26 | 0040-012005-0030 BOLT M8x45 | BOLT M8x45 | 6 | $2.29 | Obsolete | View Details |
| 27 | 0010-021016 WASHER 8 | WASHER 8 | 6 | $1.25 | Available to order | 6 |
| 28 | 0040-012003-0030 PLUG M8 | PLUG M8 | 6 | $1.14 | Obsolete | View Details |
| 29 | 0030-011007-0030 BOLT M8x55 | BOLT M8x55 | 6 | $2.29 | Obsolete | View Details |
