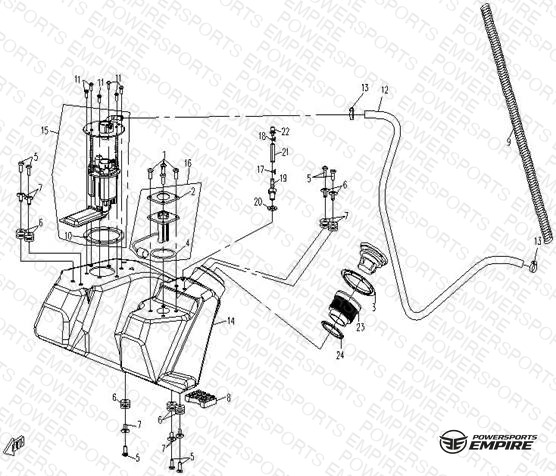

F11 — FUEL TANK ( EFI )
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30112-060016410 SCREW | SCREW ARMY GREEN | 6 | $2.29 | Available to order | 6 |
| 02 | 8030-170131 HOLDER COMP., | HOLDER COMP., | 1 | $2.29 | Obsolete | View Details |
| 03 | 6060-120108 FILLING PORT COVER | FILLING PORT COVER | 1 | $5.74 | Obsolete | View Details |
| 04 | 8030-170132 FUEL SENSOR SEAL RING | FUEL SENSOR SEAL RING | 1 | $3.44 | Obsolete | View Details |
| 05 | 30006-060022840 BOLT M6X22 | BOLT M6X22 | 6 | $1.25 | Available to order | 6 |
| 06 | 8010-120003 RUBBER PAD,CUSHION | RUBBER PAD,CUSHION | 6 | $1.14 | Obsolete | View Details |
| 07 | 5020-031002 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 08 | 6060-120001 CUSHION MAT, FUEL TANK | CUSHION MAT, FUEL TANK | 1 | $5.74 | Available to order | 1 |
| 09 | 6080-120002 PROTECTOR SPRING, FUEL HOSE | PROTECTOR SPRING, FUEL HOSE | 1 | $34.49 | Obsolete | View Details |
| 10 | 6070-150902 GASKET, SEAL | GASKET, SEAL | 1 | $11.49 | Obsolete | View Details |
| 11 | 30105-050012410 BOLT M5X12 | BOLT M5X12 | 6 | $1.25 | Available to order | 6 |
| 12 | 6070-120310 FUEL HOSE | FUEL HOSE | 1 | $57.49 | Out of Stock | Notify Me |
| 13 | 6070-120400 CLAMP F14.5A | CLAMP F14.5A | 6 | $2.29 | Available to order | 6 |
| 14 | 6070-120100 FUEL TANK COMP.(EFI) | FUEL TANK COMP.(EFI) | 1 | $252.99 | Obsolete | View Details |
| 15 | 6070-150900 FUEL PUMP ASSY | FUEL PUMP ASSY | 1 | $142.99 | Obsolete | View Details |
| 16 | 6060-170120 FUEL LEVEL SENSOR | FUEL LEVEL SENSOR | 1 | $17.24 | Obsolete | View Details |
| 17 | 30601-110020 CIRCLIP | CIRCLIP ?10 A | 6 | $1.14 | Obsolete | View Details |
| 18 | 30601-109010 CLAMP A9 | CLAMP A9 | 6 | $1.25 | Available to order | 6 |
| 19 | 6060-120103 FUEL OUTLET PIPE | FUEL OUTLET PIPE | 1 | $11.49 | Obsolete | View Details |
| 20 | 6060-120060 SEAL, FUEL OUTLET | SEAL, FUEL OUTLET | 1 | $4.59 | Obsolete | View Details |
| 21 | 8030-120511 FUEL PIPE | FUEL PIPE | 1 | $5.74 | Obsolete | View Details |
| 22 | 6060-120006 CHECK VALVE | CHECK VALVE | 1 | $17.24 | Obsolete | View Details |
| 23 | 6060-120102-1000 FUEL TANK PORT | FUEL TANK PORT | 1 | $11.49 | Obsolete | View Details |
| 24 | 6060-120104 INLET GASKET, FUEL TANK | INLET GASKET, FUEL TANK | 6 | $3.44 | Obsolete | View Details |
