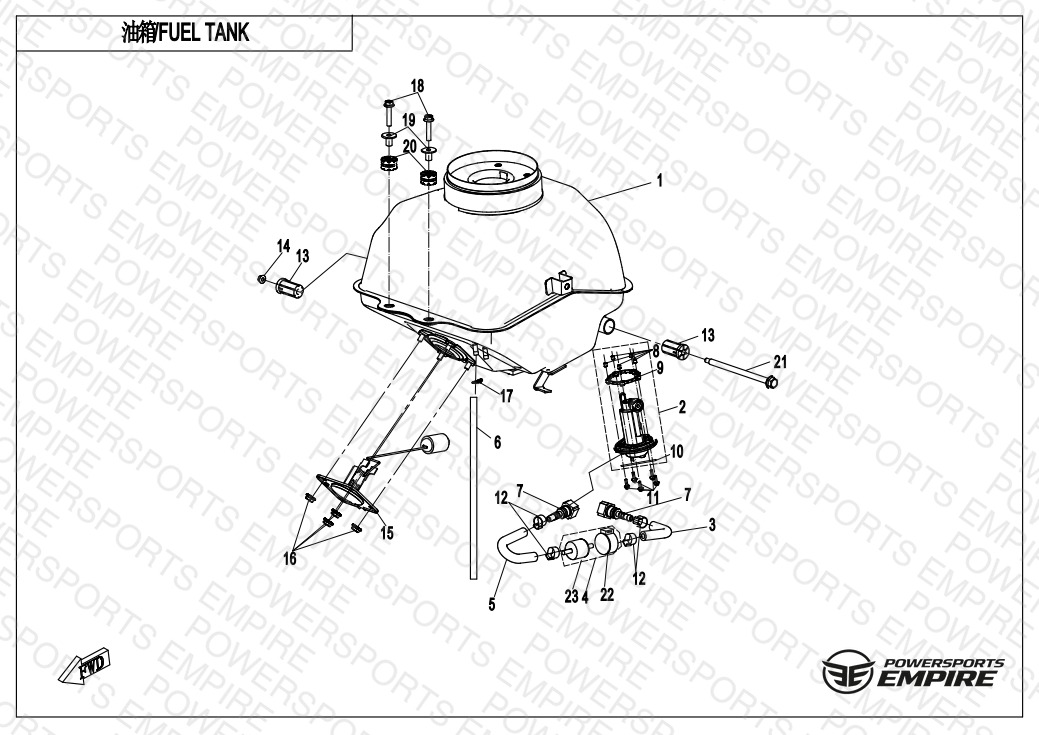

F12 — FUEL TANK
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 6KMV-121000-B000 FUEL TANK ASSY | FUEL TANK ASSY | 1 | $384.99 | Available to order | 1 |
| 02 | 6KNV-150900-7200 FUEL PUMP ASSY | FUEL PUMP ASSY | 1 | $120.99 | Available to order | 1 |
| 03 | 6KM0-120220 HIGH-PRESSURE FUEL HOSE,II | HIGH-PRESSURE FUEL HOSE,II | 1 | $12.64 | Available to order | 1 |
| 04 | 6090-120220 FUEL FILTER COMP. | FUEL FILTER COMP. | 1 | $26.44 | Available to order | 1 |
| 05 | 6KM0-120210 HIGH-PRESSURE FUEL HOSE, I | HIGH-PRESSURE FUEL HOSE, I | 1 | $16.09 | Available to order | 1 |
| 06 | 6NQ0-120001 FUEL PIPE, FUEL TANK | FUEL PIPE, FUEL TANK | 1 | $8.04 | Available to order | 1 |
| 07 | 6KJ0-120330-10000 QUICK JOINT | QUICK JOINT | 1 | $12.64 | Available to order | 1 |
| 08 | 6KJ0-150903 BUSHING | BUSHING | 6 | $2.29 | Out of Stock | Notify Me |
| 10 | 6KJ0-150901 LOCK PAD, TOP COVER | LOCK PAD, TOP COVER | 1 | $8.04 | Out of Stock | Notify Me |
| 11 | 30006-050020810 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 12 | 6070-120400 CLAMP F14.5A | CLAMP F14.5A Dia14.5 | 6 | $2.29 | Available to order | 6 |
| 13 | 6KM0-120002 RUBBER BUSHING, FUEL TANK | RUBBER BUSHING, FUEL TANK | 1 | $4.59 | Available to order | 1 |
| 14 | 30204-060810 NUT M6 | NUT M6 M6 | 6 | $1.25 | Available to order | 6 |
| 15 | 6KNV-170200-6A00-M1 FUEL LEVEL SENSOR | FUEL LEVEL SENSOR | 1 | $45.99 | Available to order | 1 |
| 16 | 30202-060110 NUT M6 | NUT M6 M6 | 6 | — | Obsolete | View Details |
| 17 | 30601-111010 CLAMP A11 | CLAMP A11 A11 | 6 | $1.25 | Available to order | 6 |
| 18 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 19 | 6KM0-120010 T-TYPE BUSHING ASSY | T-TYPE BUSHING ASSY | 1 | $3.44 | Available to order | 1 |
| 20 | 5020-031001 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 21 | 6KM0-120001-10000 ROTATION SHAFT, FUEL TANK | ROTATION SHAFT, FUEL TANK | 1 | $8.04 | Out of Stock | Notify Me |
| 22 | 6090-120221 RUBBER SLEEVE, FUEL FILTER (EFI) | RUBBER SLEEVE, FUEL FILTER (EFI) | 1 | $5.74 | Available to order | 1 |
| 23 | 805A-120004 FUEL FILTER COMP. | FUEL FILTER COMP. | 1 | $19.54 | Available to order | 1 |
