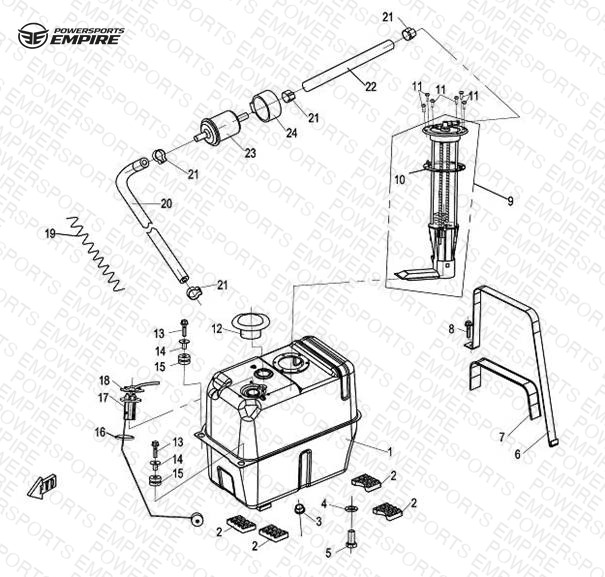

F12 — FUEL TANK
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 4050-121000 FUEL TANK ASSY | FUEL TANK ASSY | 1 | $219.99 | Obsolete | View Details |
| 02 | 6060-120001 CUSHION MAT, FUEL TANK | CUSHION MAT, FUEL TANK | 1 | $5.74 | Available to order | 1 |
| 03 | 9030-120002 CUSHION COLLAR | CUSHION COLLAR | 6 | $1.14 | Obsolete | View Details |
| 04 | 8010-120101 GASKET | GASKET | 2 | $4.59 | Obsolete | View Details |
| 05 | 30006-123025840 BOLT M12×25 | BOLT M12×25 | 1 | $3.44 | Obsolete | View Details |
| 06 | 9030-120001 FIXING PLATE,TANK | FIXING PLATE,TANK | 1 | $28.74 | Obsolete | View Details |
| 07 | 5190-020102 RUBBER DAMPER | RUBBER DAMPER | 1 | $5.74 | Available to order | 1 |
| 08 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 09 | 4050-150900 FUEL PUMP | FUEL PUMP | 1 | $296.99 | Available to order | 1 |
| 10 | 6070-150921 SEALING GASKET, TOP COVER | SEALING GASKET, TOP COVER | 1 | $5.74 | Obsolete | View Details |
| 11 | 30105-050016410 BOLT M5X16 | BOLT M5X16 | 6 | $1.25 | Available to order | 6 |
| 12 | 8010-120400 FUEL CAP | FUEL CAP | 1 | $17.24 | Obsolete | View Details |
| 13 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 14 | 9010-120310 T SPACER BUSHING | T SPACER BUSHING | 1 | $1.25 | Available to order | 1 |
| 15 | 9010-120007 REAR DAMPER,FUEL TANK | REAR DAMPER,FUEL TANK | 6 | $2.29 | Out of Stock | Notify Me |
| 16 | 9030-170121 GASKET,FUEL SENSOR | GASKET,FUEL SENSOR | 1 | $3.44 | Obsolete | View Details |
| 17 | 9030-170120 FUEL SENSOR COMP. | FUEL SENSOR COMP. | 1 | $22.99 | Obsolete | View Details |
| 18 | 5020-120401 GASKET,FUEL SENSOR | GASKET,FUEL SENSOR | 1 | $5.74 | Obsolete | View Details |
| 19 | 6080-120002 PROTECTOR SPRING, FUEL HOSE | PROTECTOR SPRING, FUEL HOSE | 1 | $34.49 | Obsolete | View Details |
| 20 | 6070-120310 FUEL HOSE | FUEL HOSE | 1 | $57.49 | Out of Stock | Notify Me |
| 21 | 6070-120400 CLAMP F14.5A | CLAMP F14.5A | 6 | $2.29 | Available to order | 6 |
| 22 | 4050-120001 HIGH-PRESSURE FUEL PIPE 1 | HIGH-PRESSURE FUEL PIPE 1 | 1 | $17.24 | Obsolete | View Details |
| 23 | 6090-120220 FUEL FILTER COMP. | FUEL FILTER COMP. | 1 | $26.44 | Available to order | 1 |
| 24 | 6090-120221 RUBBER SLEEVE, FUEL FILTER (EFI) | RUBBER SLEEVE, FUEL FILTER (EFI) | 1 | $5.74 | Available to order | 1 |
