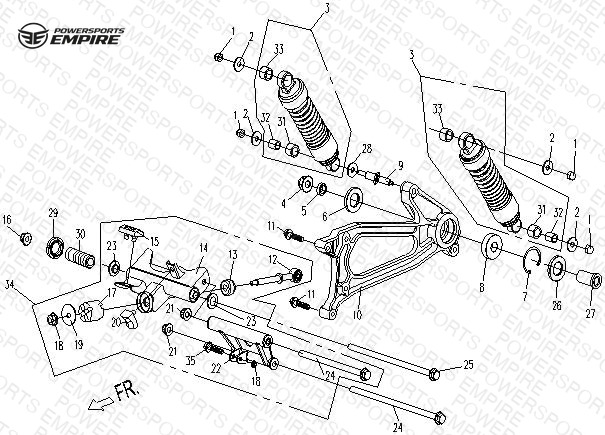

F13 — REAR SUSPENSION
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30206-101530 NUT M10X1.25 | NUT M10X1.25 | 6 | $1.14 | Obsolete | View Details |
| 02 | 30305-100142 WASHER 10 | WASHER 10 | 6 | $3.44 | Obsolete | View Details |
| 03 | 8030-060300 REAR ABSORBER | REAR ABSORBER | 1 | $80.49 | Obsolete | View Details |
| 04 | 30204-163840 NUT M16×1.5 | NUT M16×1.5 | 6 | $4.59 | Obsolete | View Details |
| 05 | 8030-110003 SHAFT COLLAR, REAR WHEEL | SHAFT COLLAR, REAR WHEEL | 1 | $2.29 | Obsolete | View Details |
| 06 | 30500-028800N OIL SEAL | OIL SEAL | 1 | $3.44 | Obsolete | View Details |
| 07 | 30800-05205 CIRCLIP 52 | CIRCLIP 52 | 6 | $3.44 | Available to order | 6 |
| 08 | 30400-02080 BEARING 6304 | BEARING 6304 | 1 | $12.64 | Obsolete | View Details |
| 09 | 0120-011006-0050 REAR SUSPENSION SHAFT | REAR SUSPENSION SHAFT | 1 | $11.49 | Obsolete | View Details |
| 10 | 8030-060211 REAR FORK | REAR FORK | 1 | $164.99 | Obsolete | View Details |
| 11 | 30102-080050870 INNER HEX SCREW M8x50 | INNER HEX SCREW M8x50 | 6 | $2.29 | Available to order | 6 |
| 12 | 6030-060001 BUFFER CONNECTION ROD | BUFFER CONNECTION ROD | 1 | $14.94 | Obsolete | View Details |
| 13 | 8010-060009 SPHERAL RUBBER CUSHION | SPHERAL RUBBER CUSHION | 1 | $2.29 | Obsolete | View Details |
| 14 | 8030-060110 FRONT SUSPENSION BRACKET | FRONT SUSPENSION BRACKET | 1 | $89.84 | Obsolete | View Details |
| 15 | 8010-060007 REAR SUSPENSION DAMPER BLOCK | REAR SUSPENSION DAMPER BLOCK | 1 | $4.59 | Obsolete | View Details |
| 16 | 30204-122840 NUT M12×1.25 | NUT M12×1.25 | 6 | $2.29 | Obsolete | View Details |
| 17 | 8010-060011 DAMPER BLOCK | DAMPER BLOCK | 1 | $3.44 | Obsolete | View Details |
| 18 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 19 | 8010-060012 WASHER f8×f42×3 | WASHER f8×f42×3 | 6 | $1.14 | Obsolete | View Details |
| 20 | 8010-060013 SADDLE BLOCK | SADDLE BLOCK | 1 | $4.59 | Obsolete | View Details |
| 21 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 22 | 8010-060300 REAR SUSPENSION COMP. | REAR SUSPENSION COMP. | 1 | $45.99 | Obsolete | View Details |
| 23 | 8010-060006 FRONT SUSPENSION BRACKET COLLAR | FRONT SUSPENSION BRACKET COLLAR | 6 | $1.14 | Obsolete | View Details |
| 24 | 5020-060305 SHAFT C, SUSPENSION BRACKET | SHAFT C, SUSPENSION BRACKET | 1 | $6.89 | Obsolete | View Details |
| 25 | 8030-060701 REAR SUSPENSION SHAFT | REAR SUSPENSION SHAFT | 1 | $11.49 | Obsolete | View Details |
| 26 | 30500-028801N OIL SEAL | OIL SEAL | 1 | $4.59 | Obsolete | View Details |
| 27 | 8030-110002 INNER COLLAR, REAR FORK | INNER COLLAR, REAR FORK | 1 | $6.89 | Obsolete | View Details |
| 28 | 30306-140142 WASHER | WASHER | 6 | $1.14 | Obsolete | View Details |
| 29 | 8030-060702 NUT M22X1 | NUT M22X1 | 6 | $9.19 | Obsolete | View Details |
| 30 | 8010-060005 NUT M22×1 | NUT M22×1 | 1 | $2.29 | Obsolete | View Details |
| 31 | 8030-060304 LOWER CONNECTING RUBBER | LOWER CONNECTING RUBBER | 1 | $11.49 | Obsolete | View Details |
| 32 | 8030-060303 LOWER CONNECTING BUSHING | LOWER CONNECTING BUSHING | 1 | $4.59 | Obsolete | View Details |
| 33 | 8030-060302 UPPER CONNECTING RUBBER | UPPER CONNECTING RUBBER | 6 | $1.14 | Obsolete | View Details |
| 34 | 6030-060500 SUSPENSION ASSY | SUSPENSION ASSY | 1 | $55.54 | Obsolete | View Details |
| 35 | 30006-080030840 BOLT M8x30 | BOLT M8x30 | 6 | — | Obsolete | View Details |
