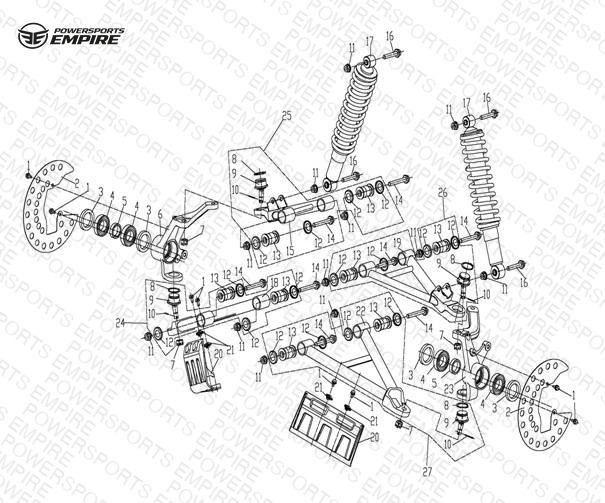

F14 — FRONT SUSPENSION ASSY
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 02 | 9030-050005 BRAKE DISC GUARD | BRAKE DISC GUARD | 1 | $19.54 | Obsolete | View Details |
| 03 | 30500-040800N OIL SEAL | OIL SEAL | 1 | $5.74 | Available to order | 1 |
| 04 | 30400-03080 BEARING 6006 | BEARING 6006 | 1 | $26.44 | Available to order | 1 |
| 05 | 9030-050003 SPACER | SPACER | 1 | $3.44 | Obsolete | View Details |
| 06 | 9030-050001 STEERING KNUCKLE (RH) | STEERING KNUCKLE (RH) | 1 | $131.99 | Obsolete | View Details |
| 07 | 30219-122810 NUT M12x1.25 | NUT M12x1.25 | 6 | $2.29 | Available to order | 6 |
| 08 | 30801-03205 RETAINER 32 | RETAINER 32 | 6 | $1.25 | Available to order | 6 |
| 09 | 9030-050600-10000 BALL PIN COMP. | BALL PIN COMP. | 1 | $57.49 | Available to order | 1 |
| 10 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 11 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 12 | 9010-050003 CAP, BUFFERING COLLAR | CAP, BUFFERING COLLAR | 2 | $3.44 | Obsolete | View Details |
| 13 | 9010-050500 BUFFERING COLLAR | BUFFERING COLLAR | 4 | $8.04 | Available to order | 4 |
| 14 | 30006-102070810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 15 | 9030-050300 FRONT RIGHT ARM (UPPER) | FRONT RIGHT ARM (UPPER) | 1 | $80.49 | Obsolete | View Details |
| 16 | 30006-102055840 BOLT M10×1.25×55 | BOLT M10×1.25×55 | 6 | $2.29 | Obsolete | View Details |
| 17 | 9030-050500 FRONT SHOCK ABSORBER | FRONT SHOCK ABSORBER | 1 | $164.99 | Obsolete | View Details |
| 18 | 9030-050400 FRONT RIGHT ARM (LOWER) | FRONT RIGHT ARM (LOWER) | 1 | $131.99 | Obsolete | View Details |
| 19 | 9030-050100 FRONT LEFT ARM (UPPER) | FRONT LEFT ARM (UPPER) | 1 | $114.99 | Obsolete | View Details |
| 20 | 9030-050004 SUSPENSION PROTECTOR | SUSPENSION PROTECTOR | 1 | $17.24 | Obsolete | View Details |
| 21 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 | 6 | $2.29 | Available to order | 6 |
| 22 | 9030-050200 FRONT LEFT ARM (LOWER) | FRONT LEFT ARM (LOWER) | 1 | $114.99 | Obsolete | View Details |
| 23 | 9030-050002 STEERING KNUCKLE (LH) | STEERING KNUCKLE (LH) | 1 | $131.99 | Obsolete | View Details |
| 24 | 9030-0504A0 FRONT RIGHT ARM (LOWER) ASSY | FRONT RIGHT ARM (LOWER) ASSY | 1 | $142.99 | Obsolete | View Details |
| 25 | 9030-0503A0 FRONT RIGHT ARM (UPPER) ASSY | FRONT RIGHT ARM (UPPER) ASSY | 1 | $114.99 | Obsolete | View Details |
| 26 | 9030-0501A0 FRONT LEFT ARM (UPPER) ASSY | FRONT LEFT ARM (UPPER) ASSY | 1 | $131.99 | Obsolete | View Details |
| 27 | 9030-0502A0 FRONT LEFT ARM (LOWER) ASSY | FRONT LEFT ARM (LOWER) ASSY | 1 | $131.99 | Obsolete | View Details |
