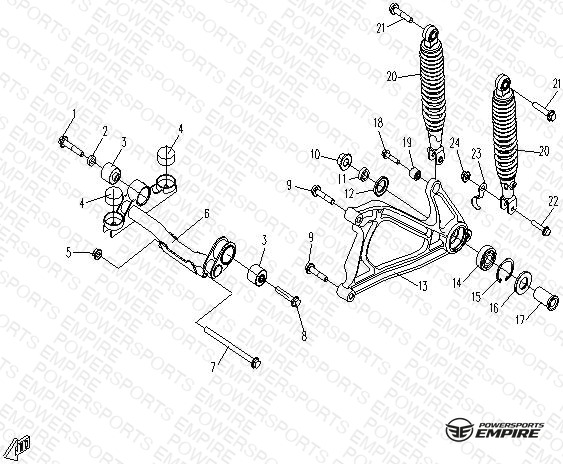

F14 — REAR SUSPENSION
Parts (25)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-102058840 BOLT M10?á1.25?á58 | BOLT M10?á1.25?á58 | 6 | $2.29 | Obsolete | View Details |
| 02 | 5190-060101 MOUNTING BUSH, REAR SUSPENSION | MOUNTING BUSH, REAR SUSPENSION | 1 | $2.29 | Obsolete | View Details |
| 03 | 5190-060110 CUSHION COLLAR, REAR SUSPENSION | CUSHION COLLAR, REAR SUSPENSION | 1 | $9.19 | Obsolete | View Details |
| 04 | 5190-060102 RUBBER CUSHION MAT, REAR SUSPENSION | RUBBER CUSHION MAT, REAR SUSPENSION | 1 | $2.29 | Obsolete | View Details |
| 05 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 06 | 6060-060120-1000 REAR SUSPENSION BRACKET | REAR SUSPENSION BRACKET | 1 | $62.31 | Obsolete | View Details |
| 07 | 5190-060103 REAR SUSPENSION SHAFT | REAR SUSPENSION SHAFT | 1 | $9.19 | Obsolete | View Details |
| 08 | 30006-102055840 BOLT M10×1.25×55 | BOLT M10×1.25×55 | 6 | $2.29 | Obsolete | View Details |
| 09 | 30006-102050840 BOLT M10×1.25×50 | BOLT M10×1.25×50 | 6 | $4.59 | Obsolete | View Details |
| 10 | 30204-163840 NUT M16×1.5 | NUT M16×1.5 | 6 | $4.59 | Obsolete | View Details |
| 11 | 5190-110003 OUTER COLLAR, REAR FORK | OUTER COLLAR, REAR FORK | 1 | $2.29 | Obsolete | View Details |
| 12 | 30501-025800N OIL SEAL | OIL SEAL | 1 | $2.29 | Obsolete | View Details |
| 13 | 6060-060201 REAR FORK | REAR FORK | 1 | $91.99 | Obsolete | View Details |
| 14 | 30400-01783 BEARING, 6303-2Z | BEARING, 6303-2Z | 1 | $17.24 | Obsolete | View Details |
| 15 | 30800-04705 CIRCLIP FOR HOLE 47 | CIRCLIP FOR HOLE 47 | 6 | $2.29 | Available to order | 6 |
| 16 | 30501-025801N OIL SEAL, 25x47x5 | OIL SEAL, 25x47x5 | 1 | $3.44 | Obsolete | View Details |
| 17 | 6060-110001 INNER COLLAR, REAR FORK | INNER COLLAR, REAR FORK | 1 | $6.89 | Obsolete | View Details |
| 18 | 30006-080035810 BOLT M8x35 | BOLT M8x35 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 19 | 0010-011500 BUSH, REAR SHOCK ABSORBER | BUSH, REAR SHOCK ABSORBER | 1 | — | Obsolete | View Details |
| 20 | 605A-060300 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER NOT AVAILABLE AFTER NEW IMPROVEMENT APPIED | 1 | $80.49 | Obsolete | View Details |
| 20 | 6060-060300 REAR SHOCK ABSORBER | REAR SHOCK ABSORBER STRONGLY RECOMMENDED TO ORDER THIS ITEM SINCE IT'S IMPROVED | 1 | $80.49 | Obsolete | View Details |
| 21 | 30006-102040810 BOLT M10X1.25X40 | BOLT M10X1.25X40 | 6 | — | Obsolete | View Details |
| 22 | 30006-080040840 BOLT M8×40 | BOLT M8×40 | 6 | $2.29 | Obsolete | View Details |
| 23 | 5190-080205 CLAMP | CLAMP | 6 | $2.29 | Obsolete | View Details |
| 24 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
