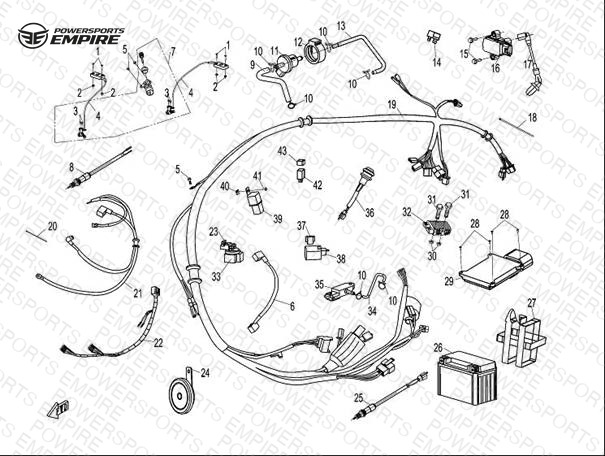

F15-1 — ELECTRIC SYSTEM I
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30107-060025440 SCREW M6X25 | SCREW M6X25 | 6 | $0.21 | Available to order | 6 |
| 02 | 30202-060140 NUT M6 | NUT M6 | 6 | $1.25 | Obsolete | View Details |
| 03 | 30105-050012410 BOLT M5X12 | BOLT M5X12 | 6 | $1.25 | Available to order | 6 |
| 04 | 9030-010220 LOCK PLATE,SEAT | LOCK PLATE,SEAT | 1 | $11.49 | Obsolete | View Details |
| 05 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 06 | 9010-150311-1000 POSITIVE CABLE, STARTER RELAY | POSITIVE CABLE, STARTER RELAY | 1 | $34.49 | Available to order | 1 |
| 07 | 9030-010000 LOCK SET ASSY. | LOCK SET ASSY. | 1 | $91.99 | Available to order | 1 |
| 08 | 9010-150500 SWITCH, REAR BRAKE | SWITCH, REAR BRAKE | 1 | $16.09 | Out of Stock | Notify Me |
| 09 | 4050-000002 IDLE AIR PIPE 2 | IDLE AIR PIPE 2 | 1 | $10.34 | Obsolete | View Details |
| 10 | 30601-112010 CLAMP A12 | CLAMP A12 | 6 | $1.25 | Available to order | 6 |
| 11 | 018B-172000 AIR BY-PASS VALVE | AIR BY-PASS VALVE | 1 | $120.99 | Obsolete | View Details |
| 12 | 901F-000005 IDLE VALVE RUBBER CAP | IDLE VALVE RUBBER CAP | 1 | $4.59 | Obsolete | View Details |
| 13 | 4050-000001 IDLE AIR PIPE I | IDLE AIR PIPE I | 1 | $6.89 | Obsolete | View Details |
| 14 | 6090-150500 DIODE, STARTER | DIODE, STARTER | 1 | $5.74 | Available to order | 1 |
| 15 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 16 | 018B-178000 IGNITION COIL | IGNITION COIL | 1 | $114.99 | Available to order | 1 |
| 17 | 018B-179000 HIGH-TENSION CABLE | HIGH-TENSION CABLE | 1 | $45.99 | Obsolete | View Details |
| 18 | 9010-150004 TIE BAND | TIE BAND | 6 | $1.25 | Out of Stock | Notify Me |
| 19 | 4050-150100-3000 MAIN CABLE | MAIN CABLE | 1 | $439.99 | Obsolete | View Details |
| 20 | 8010-150003 TIE BAND | TIE BAND | 6 | $1.25 | Available to order | 6 |
| 21 | 9030-150200 STARTING TERMINAL CABLE COMP. | STARTING TERMINAL CABLE COMP. | 1 | $114.99 | Available to order | 1 |
| 22 | 9030-150300 AUXILIARY CABLE | AUXILIARY CABLE | 1 | $17.24 | Obsolete | View Details |
| 23 | 9010-150301 FUSE,20A | FUSE,20A | 2 | $3.44 | Available to order | 2 |
| 24 | 5020-150700 ELECTRIC HORN | ELECTRIC HORN | 1 | $22.99 | Obsolete | View Details |
| 25 | 9030-150400 PARKING SWITCH | PARKING SWITCH | 1 | $12.64 | Obsolete | View Details |
| 26 | 31023004 BATTERY, Dynavolt 12v30ah | BATTERY, Dynavolt 12v30ah YTX30L-BS OBTAIN LOCALLY | 1 | $186.99 | Out of Stock | Notify Me |
| 27 | 9060-152100 BATTERY STRAP | BATTERY STRAP | 1 | $10.34 | Available to order | 1 |
| 28 | 30110-420160010 TAPPING SCREW | TAPPING SCREW | 6 | $2.29 | Available to order | 6 |
| 29 | 060D-174000 ECU | ECU | 1 | $769.99 | Obsolete | View Details |
| 31 | 30006-060030810 BOLT M6x30 | BOLT M6x30 | 6 | $1.25 | Available to order | 6 |
| 32 | 01AA-177000 REGULATOR | REGULATOR | 1 | $153.99 | Available to order | 1 |
| 33 | 9010-150310-10001 STARTER RELAY | STARTER RELAY | 1 | $45.99 | Available to order | 1 |
| 34 | 4050-000003 VACUUM PIPE | VACUUM PIPE | 1 | $9.19 | Obsolete | View Details |
| 35 | 018B-175000 AIR PRESSURE SENSOR | AIR PRESSURE SENSOR | 1 | $120.99 | Available to order | 1 |
| 36 | 8030-150300 CLOCK ADJUSTING BUTTON | CLOCK ADJUSTING BUTTON | 1 | $16.09 | Available to order | 1 |
| 37 | 8010-150002 CUSHION, FLASHER | CUSHION, FLASHER | 6 | $2.29 | Available to order | 6 |
| 38 | 9010-150340 FLASHER | FLASHER | 1 | $11.49 | Obsolete | View Details |
| 39 | 8030-151400 SHUNT RELAY | SHUNT RELAY | 1 | $12.64 | Available to order | 1 |
| 40 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 | 6 | $2.29 | Available to order | 6 |
| 41 | 30112-060016410 SCREW | SCREW | 6 | $2.29 | Available to order | 6 |
| 42 | 9010-150350 AUXILIARY RELAY | AUXILIARY RELAY | 1 | $12.64 | Available to order | 1 |
| 43 | 9010-150002 RUBBER RING, AUXILIARY RELAY | RUBBER RING, AUXILIARY RELAY | 6 | $2.29 | Obsolete | View Details |
