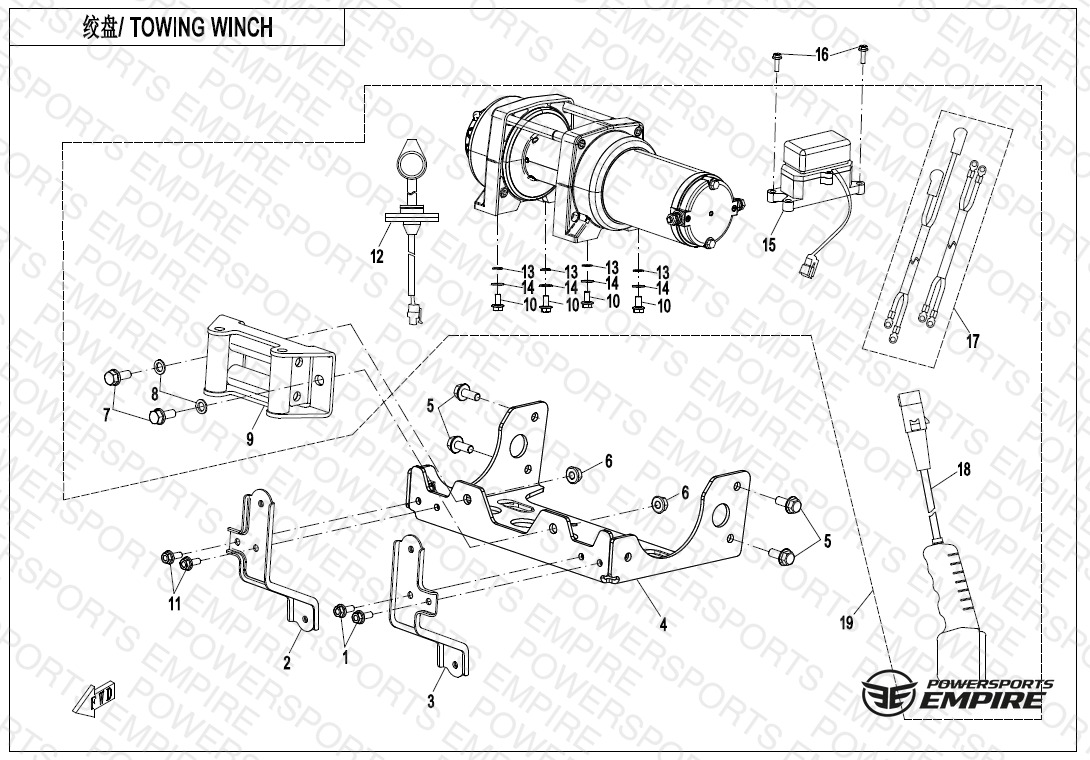

F15-2 — TOWING WINCH
Parts (19)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 02 | 5BY0-030640 RH MOUNTING BRACKET, WINCH DECO PLATE | RH MOUNTING BRACKET, WINCH DECO PLATE | 1 | $12.64 | Available to order | 1 |
| 03 | 5BY0-030630 LH MOUNTING BRACKET, WINCH DECO PLATE | LH MOUNTING BRACKET, WINCH DECO PLATE | 1 | $12.64 | Available to order | 1 |
| 04 | 5BYV-030010-A100 BRACKET, WINCH | BRACKET, WINCH | 1 | $80.49 | Available to order | 1 |
| 05 | 30006-080020810 BOLT M8x20 | BOLT M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 06 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 07 | 30006-102025810 BOLT M10X1.25X25 | BOLT M10X1.25X25 M10x1.25x25 | 6 | $2.29 | Available to order | 6 |
| 08 | 30303-100112 SPRING WASHER 10 | SPRING WASHER 10 | 6 | $1.25 | Available to order | 6 |
| 09 | 9030-150730 CABLE PULLEY | CABLE PULLEY | 1 | $57.49 | Available to order | 1 |
| 10 | 30006-080025810 BOLT M8X25 | BOLT M8X25 M8x25 | 6 | $1.25 | Available to order | 6 |
| 11 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 12 | 5HYV-150730-1C01 CONTROL SWITCH SEAT, WINCH | CONTROL SWITCH SEAT, WINCH | 1 | $45.99 | Available to order | 1 |
| 13 | 30304-080420 WASHER | WASHER | 1 | $1.25 | Available to order | 1 |
| 14 | 30303-080112 WASHER | WASHER 8 | 6 | $1.25 | Available to order | 6 |
| 15 | 5HYV-150720-1C00 WINCH CONTROL RELAY | WINCH CONTROL RELAY | 1 | $153.99 | Available to order | 1 |
| 16 | 30006-060022810 BOLT M6X22 | BOLT M6X22 @ | 6 | $1.25 | Available to order | 6 |
| 17 | 5BY0-150760 WINCH WIRE HARNESS | WINCH WIRE HARNESS | 1 | $637.99 | Available to order | 1 |
| 18 | 7030-150770 CONTROL LEVER, WINCH | CONTROL LEVER, WINCH | 1 | $57.49 | Available to order | 1 |
| 19 | 5BYV-150700-B100 WINCH ASSY | WINCH ASSY | 1 | $549.99 | Out of Stock | Notify Me |
