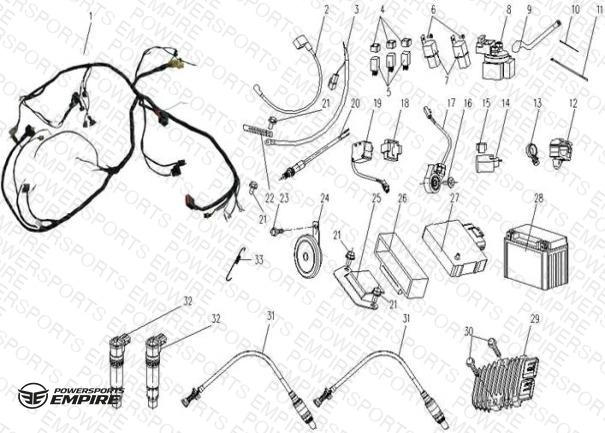

F15 — ELECTRIC SYSTEM
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | A000-150100-1000 MAIN CABLE | MAIN CABLE | 1 | — | Obsolete | View Details |
| 02 | A000-150200 POSITIVE CABLE, STARTING MOTOR | POSITIVE CABLE, STARTING MOTOR | 1 | — | Obsolete | View Details |
| 03 | A000-150300 NEGATIVE CABLE, STARTING MOTOR | NEGATIVE CABLE, STARTING MOTOR | 1 | $22.99 | Available to order | 1 |
| 04 | A000-150801 RUBBER, AUXILIARY RELAY | RUBBER, AUXILIARY RELAY | 1 | $2.29 | Available to order | 1 |
| 05 | A000-150800 AUXILIARY RELAY | AUXILIARY RELAY | 1 | $12.64 | Obsolete | View Details |
| 06 | 30112-060016410 SCREW | SCREW | 6 | $2.29 | Available to order | 6 |
| 07 | 8030-151400 SHUNT RELAY | SHUNT RELAY | 1 | $12.64 | Available to order | 1 |
| 08 | 9010-150310-10001 STARTER RELAY | STARTER RELAY | 1 | $45.99 | Available to order | 1 |
| 09 | 9010-150311-1000 POSITIVE CABLE, STARTER RELAY | POSITIVE CABLE, STARTER RELAY | 1 | $34.49 | Available to order | 1 |
| 10 | 0000-000016 TIE BAND | TIE BAND | 1 | — | Obsolete | View Details |
| 11 | 8010-150003 TIE BAND | TIE BAND | 6 | $1.25 | Available to order | 6 |
| 12 | A000-100002 CABLE CLIP | CABLE CLIP | 1 | $1.25 | Available to order | 1 |
| 13 | A000-050015 CLAMP, FRONT BRAKE HOSE | CLAMP, FRONT BRAKE HOSE | 1 | $1.25 | Available to order | 1 |
| 14 | A000-150600-1000 CUSHION, FLASHER | CUSHION, FLASHER | 1 | — | Obsolete | View Details |
| 15 | 8010-150002 CUSHION, FLASHER | CUSHION, FLASHER | 6 | $2.29 | Available to order | 6 |
| 16 | 8010-090005 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 17 | 6070-151200-1000 SWITCH,SIDE STAND | SWITCH,SIDE STAND | 1 | $17.24 | Obsolete | View Details |
| 18 | 6060-150002 PROTECTOR,ROLL-OVER SENSOR | PROTECTOR,ROLL-OVER SENSOR | 1 | — | Obsolete | View Details |
| 19 | 0060-175000 SENSOR, ROLL-OVER | SENSOR, ROLL-OVER | 1 | — | Obsolete | View Details |
| 20 | 9010-150500 SWITCH, REAR BRAKE | SWITCH, REAR BRAKE | 1 | $16.09 | Out of Stock | Notify Me |
| 21 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 22 | 0180-014010 WIRE CLAMP | WIRE CLAMP | 6 | — | Obsolete | View Details |
| 23 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 24 | A000-150500 HORN 12V | HORN 12V | 1 | $22.99 | Available to order | 1 |
| 25 | A000-150003 BRACKET, ECU | BRACKET, ECU | 1 | — | Obsolete | View Details |
| 26 | A000-150002 COVER, ECU | COVER, ECU | 1 | — | Obsolete | View Details |
| 27 | 0700-174000-1000 ECU | ECU | 1 | $879.99 | Out of Stock | Notify Me |
| 28 | 31021000 BATTERY | BATTERY | 1 | — | Obsolete | View Details |
| 29 | 01AA-177000 REGULATOR | REGULATOR | 1 | $153.99 | Available to order | 1 |
| 30 | 30006-060030810 BOLT M6x30 | BOLT M6x30 | 6 | $1.25 | Available to order | 6 |
| 31 | 0060-176000 OXYGEN SENSOR | OXYGEN SENSOR | 1 | — | Obsolete | View Details |
| 32 | 0700-178000 IGNITION COIL | IGNITION COIL | 1 | $68.99 | Out of Stock | Notify Me |
| 33 | A000-150001-00001 SPRING, REAR BRAKE SWITCH | SPRING, REAR BRAKE SWITCH | 1 | $3.44 | Obsolete | View Details |
