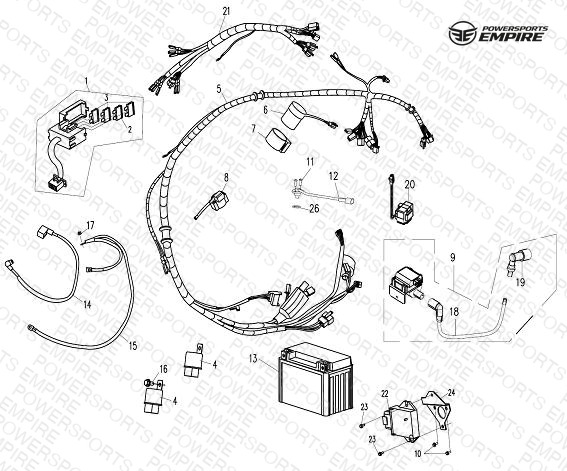

F16 — ELECTRIC SYSTEM II
Parts (22)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 8030-151300 FUSE BOX COMP. | FUSE BOX COMP. | 1 | $14.94 | Obsolete | View Details |
| 02 | 8010-151301 FUSE(5A) | FUSE(5A) | 2 | $1.14 | Available to order | 2 |
| 03 | 9010-150601 FUSE 10A | FUSE 10A | 2 | $3.44 | Obsolete | View Details |
| 04 | 8030-151400 SHUNT RELAY | SHUNT RELAY | 1 | $12.64 | Available to order | 1 |
| 05 | 805A-150100-1000 MAIN CABLE | MAIN CABLE | 1 | $219.99 | Obsolete | View Details |
| 06 | 5020-150900 FLASHER | FLASHER | 1 | $11.49 | Obsolete | View Details |
| 07 | 1090-150501 PROTECTOR,ROLL-OVER SENSOR | PROTECTOR,ROLL-OVER SENSOR | 6 | $1.14 | Obsolete | View Details |
| 08 | 8030-150410 STARTER RELAY | STARTER RELAY | 1 | $45.99 | Obsolete | View Details |
| 09 | 011F-178000 IGNITION COIL | IGNITION COIL | 1 | $68.99 | Obsolete | View Details |
| 10 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 11 | 30118-420160030 TAPPING SCREW | TAPPING SCREW | 6 | $1.14 | Obsolete | View Details |
| 12 | 0060-111200 AIR TEMPERATURE SENSOR | AIR TEMPERATURE SENSOR | 1 | — | Obsolete | View Details |
| 14 | 8030-150700 TERMINAL CABLE COMP.,STARTER RELAY | TERMINAL CABLE COMP.,STARTER RELAY | 1 | $17.24 | Obsolete | View Details |
| 15 | 8030-150600 NEGATIVE CABLE COMP. | NEGATIVE CABLE COMP. | 1 | $22.99 | Obsolete | View Details |
| 17 | 30202-060140 NUT M6 | NUT M6 | 6 | $1.25 | Obsolete | View Details |
| 18 | 0062-178200 HIGH TENSION CABLE | HIGH TENSION CABLE | 1 | $28.74 | Obsolete | View Details |
| 19 | 0060-178300 SPARK PLUG | SPARK PLUG | 1 | — | Obsolete | View Details |
| 20 | 0060-175000 SENSOR, ROLL-OVER | SENSOR, ROLL-OVER | 1 | — | Obsolete | View Details |
| 22 | 011F-174000-1000 ECU | ECU | 1 | $549.99 | Obsolete | View Details |
| 23 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 24 | 803A-000010 MOUNT PLATE, ECU | MOUNT PLATE, ECU | 1 | $4.59 | Obsolete | View Details |
| 25 | 0060-111015 O-RING 17x2 | O-RING 17x2 | 2 | $2.29 | Available to order | 2 |
