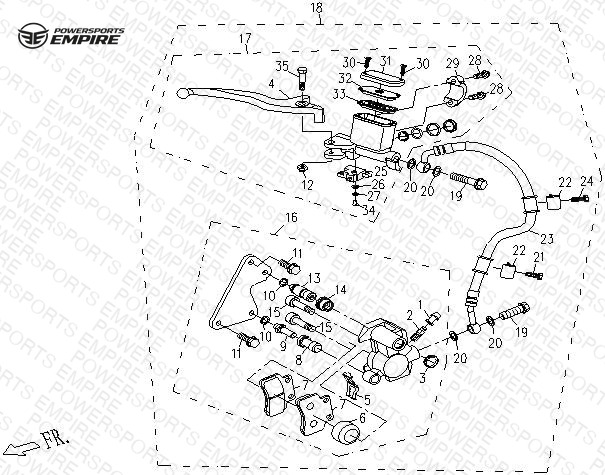

F17 — HYDRAULIC BRAKE (FRONT)
Parts (35)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5190-080166 RUBBER CASE, BLEED BOLT | RUBBER CASE, BLEED BOLT | 1 | $1.14 | Obsolete | View Details |
| 02 | 5190-080165 BLEED BOLT | BLEED BOLT | 1 | $2.29 | Obsolete | View Details |
| 03 | 5190-080158 COVER, MAIN SLIDING SHAFT | COVER, MAIN SLIDING SHAFT | 1 | $0.56 | Obsolete | View Details |
| 04 | 5190-080123 FRONT BRAKE LEVER | FRONT BRAKE LEVER | 1 | $34.49 | Obsolete | View Details |
| 05 | 5190-080156 BRAKE SPRING TOUGUE | BRAKE SPRING TOUGUE | 1 | $1.14 | Obsolete | View Details |
| 06 | 5190-080152 PISTON, BRAKE CALLIPER | PISTON, BRAKE CALLIPER | 1 | $5.74 | Obsolete | View Details |
| 07 | 5190-080160 FRONT BRAKE PAD | FRONT BRAKE PAD | 1 | $34.49 | Obsolete | View Details |
| 08 | 5190-080164 RUBBER COLLAR, SECONDARY SLIDING SHAFT | RUBBER COLLAR, SECONDARY SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 09 | 5190-080163 SECONDARY SLIDING SHAFT | SECONDARY SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 10 | 5190-080162 LIGHT-DUTY WASHER | LIGHT-DUTY WASHER | 1 | $1.14 | Obsolete | View Details |
| 11 | 30006-080026840 BOLT | BOLT | 6 | $1.14 | Obsolete | View Details |
| 12 | 30204-060810 NUT M6 | NUT M6 | 6 | $1.25 | Available to order | 6 |
| 13 | 5190-080159 MAIN SLIDING SHAFT | MAIN SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 14 | 5190-080161 RUBBER COLLAR, DRIVE SLIDING SHAFT | RUBBER COLLAR, DRIVE SLIDING SHAFT | 1 | $2.29 | Obsolete | View Details |
| 15 | 5190-080157 GUIDE STEM | GUIDE STEM | 1 | $2.29 | Obsolete | View Details |
| 16 | 5190-080150 BRAKE CALLIPER COMP. | BRAKE CALLIPER COMP. | 1 | $80.49 | Obsolete | View Details |
| 17 | 5190-080110 BRAKE PUMP COMP. | BRAKE PUMP COMP. | 1 | $80.49 | Obsolete | View Details |
| 18 | 5190-081000 FRONT HYDRAULIC BRAKE ASSY. | FRONT HYDRAULIC BRAKE ASSY. | 1 | $164.99 | Obsolete | View Details |
| 19 | 5190-080108 OIL FILLING BOLT | OIL FILLING BOLT | 6 | $2.29 | Obsolete | View Details |
| 20 | 5190-080109 SEAL WASHER | SEAL WASHER | 6 | $2.29 | Obsolete | View Details |
| 21 | 30006-060012870 BOLT M6x12 | BOLT M6x12 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 22 | 5190-080204 CLASP | CLASP | 6 | $2.29 | Obsolete | View Details |
| 23 | 5190-080130 PIPE COMP., FRONT BRAKE | PIPE COMP., FRONT BRAKE | 1 | $57.49 | Obsolete | View Details |
| 24 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 25 | 5190-080125 LIGHT, REAR BRAKE | LIGHT, REAR BRAKE | 1 | $5.74 | Obsolete | View Details |
| 26 | 30304-040440 WASHER | WASHER | 6 | $2.29 | Obsolete | View Details |
| 27 | 30303-040042 WASHER 4 | WASHER 4 | 6 | $1.14 | Obsolete | View Details |
| 28 | 5190-080127 BOLT | BOLT | 6 | $1.14 | Obsolete | View Details |
| 29 | 5190-080126 SEMI-COVER | SEMI-COVER | 1 | $3.44 | Obsolete | View Details |
| 30 | 30107-040012440 SCREW, M4X12 | SCREW, M4X12 ARMY GREEN | 6 | $1.14 | Obsolete | View Details |
| 31 | 5190-080111 COVER, OIL CUP | COVER, OIL CUP | 1 | $11.49 | Obsolete | View Details |
| 32 | 5190-080112 PAD, OIL CUP | PAD, OIL CUP | 1 | $1.14 | Obsolete | View Details |
| 33 | 5190-080113 GASKET, OIL CUP | GASKET, OIL CUP | 1 | $4.59 | Obsolete | View Details |
| 34 | 30105-040010440 SCREW, M4X10 | SCREW, M4X10 ARMY GREEN | 6 | $1.14 | Obsolete | View Details |
| 35 | 5190-080124 BOLT | BOLT | 6 | $2.29 | Obsolete | View Details |
