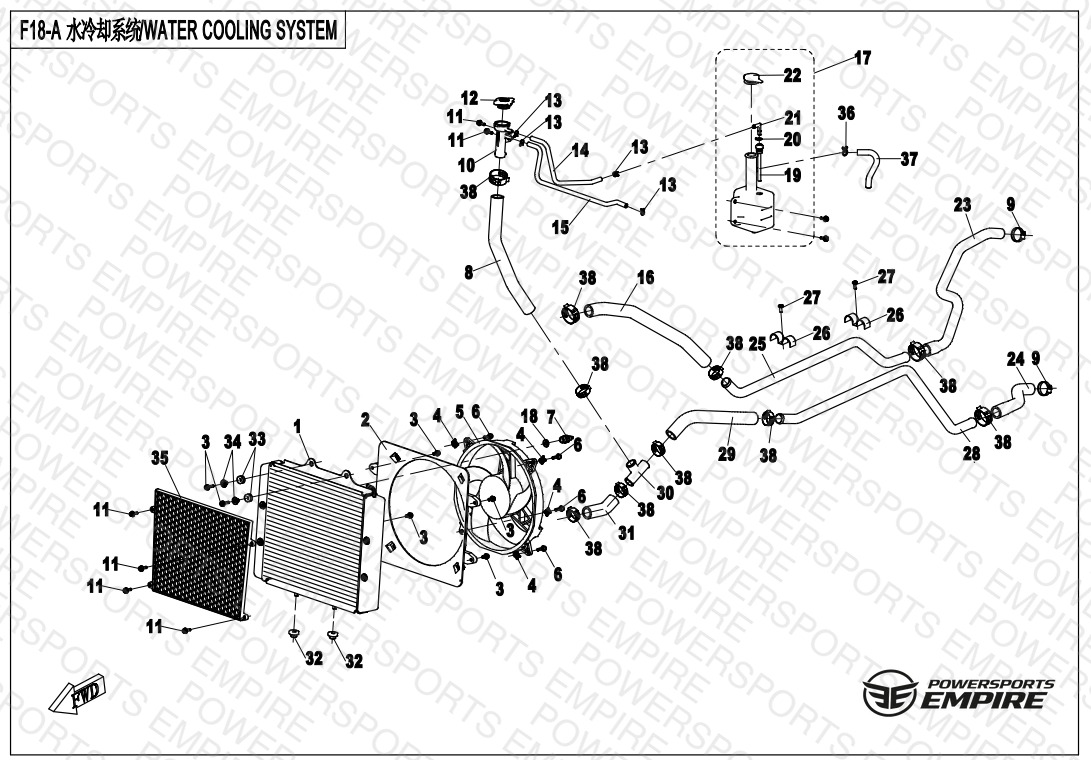

F18-1 — WATER COOLING SYSTEM
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9060-180100-1000 RADIATOR ASSY | RADIATOR ASSY | 1 | $505.99 | Available to order | 1 |
| 02 | 9060-181301 DEFLECTOR, FAN | DEFLECTOR, FAN | 1 | $57.49 | Available to order | 1 |
| 03 | 30006-060025810 BOLT | BOLT M6x25 | 6 | $3.44 | Available to order | 6 |
| 04 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 M6 | 6 | $2.29 | Available to order | 6 |
| 05 | 7020-181400-1000 FAN & MOTOR | FAN & MOTOR SUMITOMO PLUG | 1 | $296.99 | Available to order | 1 |
| 06 | 30006-060020870 BOLT M6x20 | BOLT M6x20 M6x20 | 6 | $2.29 | Available to order | 6 |
| 07 | 7020-150600 THERMOSWITCH | THERMOSWITCH | 1 | $34.49 | Available to order | 1 |
| 08 | 7030-180023 WATER FILLING HOSE,RADIATOR | WATER FILLING HOSE,RADIATOR | 1 | $28.74 | Available to order | 1 |
| 09 | 9010-180007 CLAMP ,WATER HOSE | CLAMP ,WATER HOSE | 1 | $6.89 | Available to order | 1 |
| 10 | 9060-180025-1000 COOLANT FILLING PORT | COOLANT FILLING PORT | 1 | $20.69 | Available to order | 1 |
| 11 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 12 | 8010-180024 RADIATOR CAP | RADIATOR CAP | 1 | $19.54 | Available to order | 1 |
| 13 | 30601-111010 CLAMP A11 | CLAMP A11 A11 | 6 | $1.25 | Available to order | 6 |
| 14 | 7030-180062 WATER HOSE,RESERVOIR TANK | WATER HOSE,RESERVOIR TANK | 1 | $5.74 | Available to order | 1 |
| 15 | 7030-180061 OVERFLOW HOSE,RADIATOR | OVERFLOW HOSE,RADIATOR | 1 | $5.74 | Available to order | 1 |
| 16 | 7030-180022 WATER OUTLET HOSE,RADIATOR | WATER OUTLET HOSE,RADIATOR | 1 | $45.99 | Available to order | 1 |
| 17 | 7030-180900 RESERVIOR TANK | RESERVIOR TANK | 1 | $34.49 | Available to order | 1 |
| 18 | 6050-180006 RUBBER WASHER | RUBBER WASHER | 6 | $3.44 | Available to order | 6 |
| 19 | 8010-180028 HOSE, RESERVOIR TANK | HOSE, RESERVOIR TANK | 1 | $2.29 | Available to order | 1 |
| 20 | 30601-112010 CLAMP A12 | CLAMP A12 A12 | 6 | $1.25 | Available to order | 6 |
| 21 | 8030-180302 JOINT,RESERVOIR TANK | JOINT,RESERVOIR TANK | 6 | $2.29 | Available to order | 6 |
| 22 | 8010-180023 CAP,RESERVOIR TANK | CAP,RESERVOIR TANK | 1 | $5.74 | Available to order | 1 |
| 23 | 7030-180030 WATER OUTLET HOSE, ENGINE | WATER OUTLET HOSE, ENGINE | 1 | $28.74 | Out of Stock | Notify Me |
| 24 | 7030-180026 WATER INLET HOSE,ENGINE | WATER INLET HOSE,ENGINE | 1 | $34.49 | Available to order | 1 |
| 25 | 7030-180051 ALUM PIPE,WATER INLET | ALUM PIPE,WATER INLET | 1 | $34.49 | Obsolete | View Details |
| 26 | 9030-180006 CLAMP,WATER HOSE | CLAMP,WATER HOSE | 1 | $2.29 | Out of Stock | Notify Me |
| 27 | 30105-060016410 SCREW M6×16 | SCREW M6×16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 28 | 7030-180052 ALUM PIPE,WATER OUTLET | ALUM PIPE,WATER OUTLET | 1 | $28.74 | Out of Stock | Notify Me |
| 29 | 7030-180024 WATER INLET HOSE 2,RADIATOR | WATER INLET HOSE 2,RADIATOR | 1 | $28.74 | Available to order | 1 |
| 30 | 9060-180022 WATER LINE LEE | WATER LINE LEE | 1 | $9.19 | Available to order | 1 |
| 31 | 7030-180021 WATER INLET HOSE 1,RADIATOR | WATER INLET HOSE 1,RADIATOR | 1 | $17.24 | Available to order | 1 |
| 32 | 9060-180027 RUBBER CUSHION ,RADIATOR | RUBBER CUSHION ,RADIATOR | 2 | $1.25 | Available to order | 2 |
| 33 | 9060-180026 PIN RUBBER CAP, RADIATOR | PIN RUBBER CAP, RADIATOR | 2 | $3.44 | Available to order | 2 |
| 34 | 9060-180029 RUBBER CUSHION TUBE, RADIATOR | RUBBER CUSHION TUBE, RADIATOR | 2 | $2.29 | Available to order | 2 |
| 35 | 7030-180003 SCREEN,RADIATOR | SCREEN,RADIATOR | 1 | $34.49 | Available to order | 1 |
| 36 | 30601-113010 CLAMP A13 | CLAMP A13 A13 | 6 | $1.25 | Available to order | 6 |
| 37 | 6100-000102 OUTLET PIPE, IDLE | OUTLET PIPE, IDLE | 1 | $2.29 | Out of Stock | Notify Me |
| 38 | 7000-180007-00001 STEEL BAND CLAMP 34 | STEEL BAND CLAMP 34 | 1 | $9.19 | Available to order | 1 |
