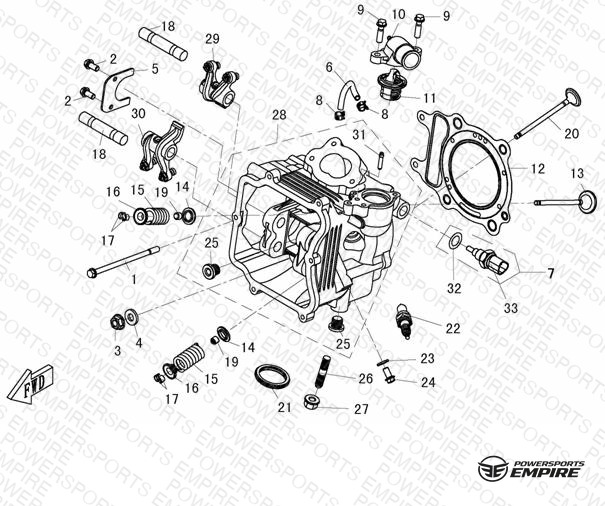

E02-2 — CYLINDER HEAD ASSY
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0030-011006-0030 BOLT M6x105 | BOLT M6x105 | 6 | $2.29 | Obsolete | View Details |
| 02 | 0010-021019-0030 BOLT M6x12 | BOLT M6x12 | 6 | — | Obsolete | View Details |
| 03 | 01A0-022002-0020 NUT M8 | NUT M8 | 6 | $1.14 | Obsolete | View Details |
| 04 | 0010-022012 WASHER 8 | WASHER 8 | 6 | $1.25 | Out of Stock | Notify Me |
| 05 | 01A0-022001-0050 LIMITING PLATE,CAMSHAFT | LIMITING PLATE,CAMSHAFT | 1 | $3.44 | Obsolete | View Details |
| 06 | 0010-022017 BREATHER HOSE,CARB. | BREATHER HOSE,CARB. | 1 | $1.14 | Obsolete | View Details |
| 07 | 0060-022810 SENSOR, WATER TEMP. | SENSOR, WATER TEMP. | 1 | — | Obsolete | View Details |
| 08 | 30601-207050 CLAMP A6.5 | CLAMP A6.5 | 6 | $1.14 | Available to order | 6 |
| 09 | 0010-023010-0010 BOLT M6X20 | BOLT M6X20 M6*20 | 6 | $1.25 | Obsolete | View Details |
| 10 | 01A0-022200 WATER OUTLET JOINT, CYLINDER HEAD | WATER OUTLET JOINT, CYLINDER HEAD | 1 | $19.54 | Obsolete | View Details |
| 11 | 0060-022820 THERMOSTAT KIT | THERMOSTAT KIT | 1 | $17.24 | Obsolete | View Details |
| 12 | 01A0-022007 GASCKET,CYLINDER HEAD COVER | GASCKET,CYLINDER HEAD COVER | 1 | $8.04 | Obsolete | View Details |
| 13 | 01A0-022005 INTAKE VALVE | INTAKE VALVE | 1 | $17.24 | Obsolete | View Details |
| 14 | 01A0-022003 LOWER SEAT, VALVE SPRING | LOWER SEAT, VALVE SPRING | 1 | $1.14 | Obsolete | View Details |
| 15 | 01A0-022010 VALVE SPRING | VALVE SPRING | 1 | $4.59 | Obsolete | View Details |
| 16 | 01A0-022004 UPPER SEAT,VALVE SPRING | UPPER SEAT,VALVE SPRING | 1 | $2.29 | Obsolete | View Details |
| 17 | 0010-022006-0030 LOCK CLIP, VALVE | LOCK CLIP, VALVE | 6 | $3.44 | Obsolete | View Details |
| 18 | 01A0-022008 ROCKER | ROCKER | 1 | $11.49 | Obsolete | View Details |
| 19 | 0010-022500-10000 SEAL RING, VALVE STEM | SEAL RING, VALVE STEM | 2 | $4.59 | Available to order | 2 |
| 20 | 01A0-022006 OUTLET VALVE | OUTLET VALVE | 1 | $28.74 | Obsolete | View Details |
| 21 | 01A0-022300 GASKET, EXHAUST PIPE | GASKET, EXHAUST PIPE | 1 | $4.59 | Obsolete | View Details |
| 22 | 01A0-022400 SPARK PLUG | SPARK PLUG | 1 | $11.49 | Available to order | 1 |
| 23 | 0010-060009 WASHER 6 | WASHER 6 | 6 | $1.25 | Available to order | 6 |
| 24 | 0010-080010-0030 BOLT M6×10 | BOLT M6×10 | 6 | $1.14 | Obsolete | View Details |
| 25 | 0010-022303-0020 BOLT PLUG | BOLT PLUG | 6 | $1.14 | Obsolete | View Details |
| 26 | 0180-022003-0010 STUD M8x42 | STUD M8x42 | 1 | — | Obsolete | View Details |
| 27 | 8010-020001 NUT | NUT | 6 | $1.25 | Available to order | 6 |
| 28 | 01AA-0221A0 CYLINDER HEAD COMP. | CYLINDER HEAD COMP. | 1 | $307.99 | Obsolete | View Details |
| 29 | 01A0-022500 INTAKE ROCKER KIT | INTAKE ROCKER KIT | 1 | $40.24 | Obsolete | View Details |
| 30 | 01A0-022600 EXHAUST ROCKER KIT | EXHAUST ROCKER KIT | 1 | $28.74 | Obsolete | View Details |
| 31 | 01A0-022102 PIPE JOINT | PIPE JOINT | 1 | $2.29 | Available to order | 1 |
| 32 | 0060-022812 O-RING | O-RING | 2 | $2.29 | Obsolete | View Details |
| 33 | 0060-022811 WATER TEMPERATURE SENSOR | WATER TEMPERATURE SENSOR | 1 | $68.99 | Obsolete | View Details |
