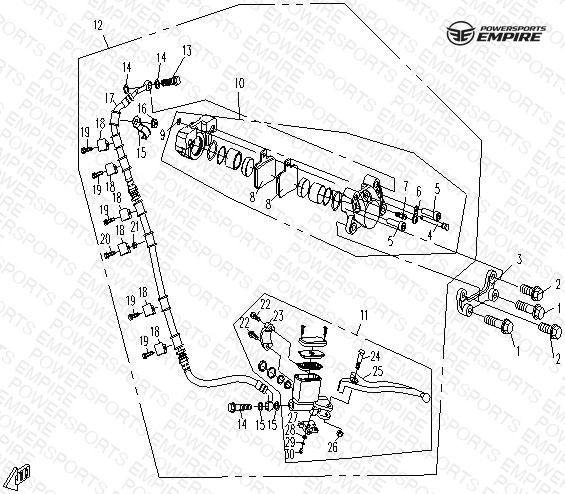

F19 — HYDRAULIC BRAKE (REAR)
Parts (30)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30006-080037830 BOLT,M8x37 | BOLT,M8x37 | 6 | $1.14 | Obsolete | View Details |
| 02 | 30006-080020810 BOLT M8x20 | BOLT M8x20 PEDAL BRAKE | 6 | $1.25 | Available to order | 6 |
| 03 | 6060-080205 MOUNTING BRACKET, REAR CALIPER | MOUNTING BRACKET, REAR CALIPER | 1 | $40.24 | Obsolete | View Details |
| 04 | 6060-080257 GUIDE ROD,BRAKE PAD | GUIDE ROD,BRAKE PAD | 1 | $5.74 | Obsolete | View Details |
| 05 | 30102-080020840 HEX SCREW M8x20 | HEX SCREW M8x20 | 6 | $1.14 | Available to order | 6 |
| 06 | 5190-080155 COVER, BLEED BOLT | COVER, BLEED BOLT | 6 | $1.14 | Obsolete | View Details |
| 07 | 5190-080154 BLEED BOLT | BLEED BOLT | 6 | $2.29 | Obsolete | View Details |
| 08 | 6060-080270 BRAKE PAD | BRAKE PAD | 1 | $22.99 | Obsolete | View Details |
| 09 | 6060-080256 MEGANET | MEGANET | 1 | $2.29 | Obsolete | View Details |
| 10 | 6060-080250 REAR BRAKE CALIPER COMP. | REAR BRAKE CALIPER COMP. | 1 | $131.99 | Obsolete | View Details |
| 11 | 6060-080210 REAR BRAKE PUMP COMP. | REAR BRAKE PUMP COMP. | 1 | $80.49 | Obsolete | View Details |
| 12 | 6060-080200 REAR HYDRAULIC BRAKE ASSY. | REAR HYDRAULIC BRAKE ASSY. | 1 | $164.99 | Obsolete | View Details |
| 13 | 5190-080108 OIL FILLING BOLT | OIL FILLING BOLT | 6 | $2.29 | Obsolete | View Details |
| 14 | 5190-080109 SEAL WASHER | SEAL WASHER | 6 | $2.29 | Obsolete | View Details |
| 15 | 5190-080205 CLAMP | CLAMP | 6 | $2.29 | Obsolete | View Details |
| 16 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 17 | 5190-080230 PIPE COMP., REAR BRAKE | PIPE COMP., REAR BRAKE | 1 | $80.49 | Obsolete | View Details |
| 18 | 5190-080204 CLASP | CLASP | 6 | $2.29 | Obsolete | View Details |
| 19 | 30006-060012870 BOLT M6x12 | BOLT M6x12 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 20 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 21 | 30202-060140 NUT M6 | NUT M6 | 6 | $1.25 | Obsolete | View Details |
| 22 | 5190-080127 BOLT | BOLT | 6 | $1.14 | Obsolete | View Details |
| 23 | 5190-080126 SEMI-COVER | SEMI-COVER | 1 | $3.44 | Obsolete | View Details |
| 24 | 5190-080124 BOLT | BOLT | 6 | $2.29 | Obsolete | View Details |
| 25 | 5190-080223 BRAKE LEVER | BRAKE LEVER | 1 | $17.24 | Obsolete | View Details |
| 26 | 30204-060810 NUT M6 | NUT M6 | 6 | $1.25 | Available to order | 6 |
| 27 | 5190-080225 BRAKE LIGHT SWITCH | BRAKE LIGHT SWITCH | 1 | $9.19 | Obsolete | View Details |
| 28 | 30304-040440 WASHER | WASHER | 6 | $2.29 | Obsolete | View Details |
| 29 | 30303-040142 WASHER | WASHER | 6 | $1.14 | Obsolete | View Details |
| 30 | 30105-040010440 SCREW, M4X10 | SCREW, M4X10 ARMY GREEN | 6 | $1.14 | Obsolete | View Details |
