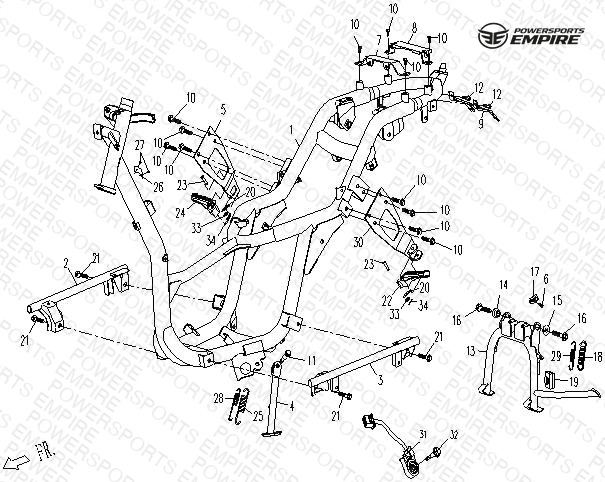

F20 — FRAME
Parts (33)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5190-030100 FRAME WELDING COMP | FRAME WELDING COMP | 1 | $274.99 | Obsolete | View Details |
| 02 | 5190-037700 FITTING PIPE COMP.,RIGHT DECK | FITTING PIPE COMP.,RIGHT DECK | 1 | $13.79 | Obsolete | View Details |
| 03 | 5190-037600 FITTING PIPE COMP., LEFT DECK | FITTING PIPE COMP., LEFT DECK | 1 | $13.79 | Obsolete | View Details |
| 04 | 5190-037200 SIDE STAND WELDING COMP | SIDE STAND WELDING COMP | 1 | $11.49 | Obsolete | View Details |
| 05 | 5190-037400 BRACKET, REAR FOOT STAND(RH) | BRACKET, REAR FOOT STAND(RH) | 1 | $22.99 | Obsolete | View Details |
| 06 | 30102-060012810 SCREW M6X12 | SCREW M6X12 | 6 | $1.25 | Available to order | 6 |
| 07 | 5190-038203 FRONT BRACKET, SEAT | FRONT BRACKET, SEAT | 1 | $11.49 | Obsolete | View Details |
| 08 | 5190-140003 BRACKET, SEAT | BRACKET, SEAT | 1 | $11.49 | Obsolete | View Details |
| 09 | 5190-038500 BRACKET, REAR FENDER | BRACKET, REAR FENDER | 1 | $4.59 | Obsolete | View Details |
| 10 | 30006-080014810 BOLT M8X14 | BOLT M8X14 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 11 | 5190-030016 BOLT, SIDE STAND (M10×1.25x12×23) | BOLT, SIDE STAND (M10×1.25x12×23) (M10?1.25??12?23) | 1 | $2.29 | Obsolete | View Details |
| 12 | 30006-060012870 BOLT M6x12 | BOLT M6x12 ARMY GREEN | 6 | $1.25 | Available to order | 6 |
| 13 | 5190-001010 MAIN STAND | MAIN STAND | 1 | $45.99 | Obsolete | View Details |
| 14 | 5190-001001 RIGHT BUSH, MAIN STAND | RIGHT BUSH, MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 15 | 5190-001002 LEFT BUSH, MAIN STAND | LEFT BUSH, MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 16 | 30006-102035840 BOLT M10x1.25x35 | BOLT M10x1.25x35 | 6 | $0.38 | Available to order | 6 |
| 17 | 5190-001030 SPRING HANGER COMP., MAIN STAND | SPRING HANGER COMP., MAIN STAND | 1 | $3.44 | Obsolete | View Details |
| 18 | 5190-001004 SPRING, MAIN STAND | SPRING, MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 19 | 5190-001003 RUBBER CUSHION,MAIN BRACKET | RUBBER CUSHION,MAIN BRACKET | 6 | $3.44 | Available to order | 6 |
| 20 | 5190-037911 PADEL POSITIONING PLATE | PADEL POSITIONING PLATE | 1 | $3.44 | Obsolete | View Details |
| 21 | 30009-080025840 SCREW COMP. | SCREW COMP. | 2 | $1.14 | Obsolete | View Details |
| 22 | 5190-037810 LEFT FOOT DECK COMP | LEFT FOOT DECK COMP | 1 | $28.74 | Obsolete | View Details |
| 24 | 5190-037910 RIGHT FOOT DECK COMP. | RIGHT FOOT DECK COMP. | 1 | $28.74 | Obsolete | View Details |
| 25 | 5190-030017 SPRING, SIDE STAND | SPRING, SIDE STAND | 1 | $1.14 | Obsolete | View Details |
| 26 | 8010-030008 NAME PLATE | NAME PLATE CHINESE | 1 | $1.14 | Obsolete | View Details |
| 27 | 30902-0401320 POP RIVET | POP RIVET | 6 | $1.25 | Available to order | 6 |
| 28 | 5190-030018 SMALL SPRING,SIDE STAND | SMALL SPRING,SIDE STAND | 1 | $1.14 | Obsolete | View Details |
| 29 | 5190-001005 SMALL SPRING, MAIN STAND | SMALL SPRING, MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 30 | 5190-037500 REAR FOOT STAND COMP(LH) | REAR FOOT STAND COMP(LH) | 1 | $13.79 | Obsolete | View Details |
| 31 | 8010-160002 KILL SWITCH | KILL SWITCH | 1 | $19.54 | Obsolete | View Details |
| 32 | 8010-160003 PARKING SWITCH | PARKING SWITCH | 1 | $9.19 | Obsolete | View Details |
| 33 | 30306-080112 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 34 | 30903-0252010 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
