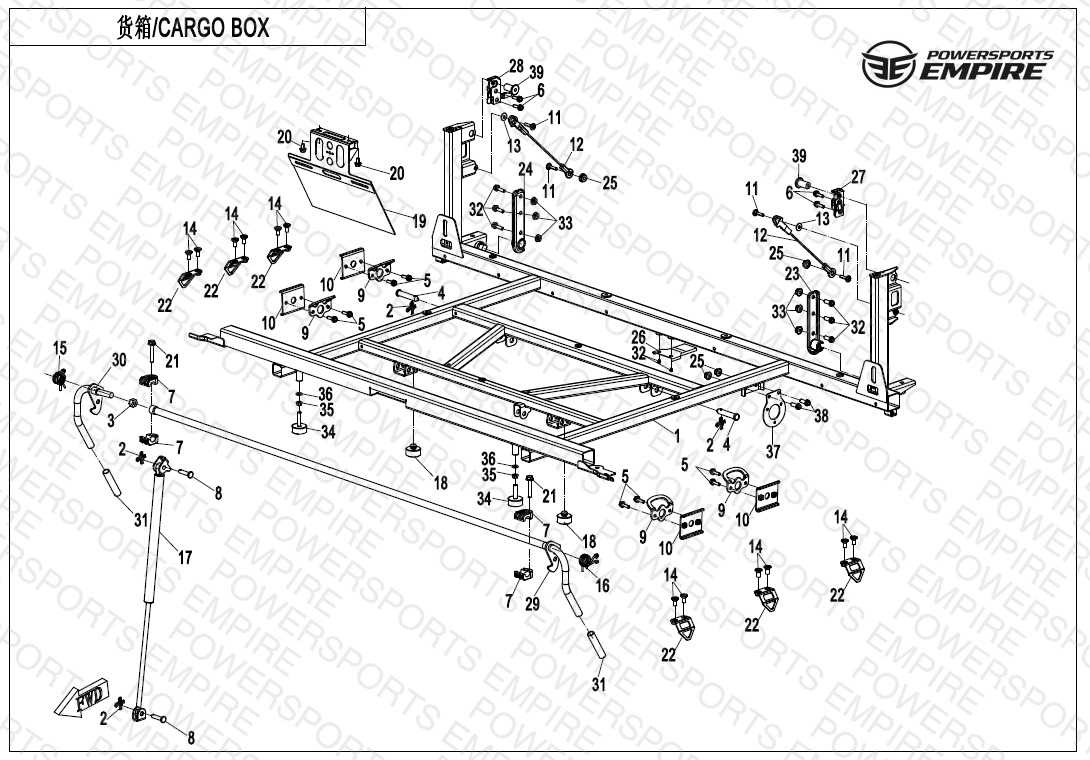

F22-2 — CARGO BOX
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5HYV-221000-1C00+5HYV-2200 CARGO BOX FRAME | CARGO BOX FRAME | 1 | — | Obsolete | View Details |
| 02 | 5HY#-220008-1000 PIN SHAFT | PIN SHAFT | 1 | $1.25 | Available to order | 1 |
| 03 | 30211-123810 NUT | NUT M12x1.5 | 6 | $2.29 | Available to order | 6 |
| 04 | 9030-220011-00001 PIN SHAFT,ROTATION | PIN SHAFT,ROTATION COLOR ZINC | 1 | $5.74 | Available to order | 1 |
| 05 | 30006-060020870 BOLT M6x20 | BOLT M6x20 M6x20 | 6 | $2.29 | Available to order | 6 |
| 07 | 7030-221123 COLLAR, ROTATE SHAFT | COLLAR, ROTATE SHAFT | 1 | $5.74 | Available to order | 1 |
| 08 | 7030-222251 PIN SHAFT,GAS SPRING | PIN SHAFT,GAS SPRING | 1 | $5.74 | Available to order | 1 |
| 09 | 9030-220004 HOOK,BAND | HOOK,BAND | 1 | $5.74 | Available to order | 1 |
| 10 | 7030-221140 MOUNTING BRACKET,HOOK | MOUNTING BRACKET,HOOK | 1 | $14.94 | Out of Stock | Notify Me |
| 11 | 7030-010508 BOLT | BOLT | 1 | $12.64 | Available to order | 1 |
| 12 | 7030-010500-10000 CABLE, TAILGATE | CABLE, TAILGATE | 1 | $22.99 | Available to order | 1 |
| 13 | 30305-060112 WASHER | WASHER 6 | 6 | $1.25 | Available to order | 6 |
| 14 | 5HY0-220113 BOLT M8x20 | BOLT M8x20 M8x20 | 1 | $1.60 | Available to order | 1 |
| 15 | 5HY0-220007 TORSION SPRING, RH | TORSION SPRING, RH | 1 | $1.14 | Available to order | 1 |
| 16 | 5HY0-220006 TORSION SPRING, LH | TORSION SPRING, LH | 1 | $1.14 | Obsolete | View Details |
| 17 | 5HY0-222080-30000 BOX TILT STRUT | BOX TILT STRUT | 1 | $57.49 | Available to order | 1 |
| 18 | 5HY0-220004 RUBBER BUMPER | RUBBER BUMPER | 1 | $2.29 | Available to order | 1 |
| 19 | 5HYV-220010-1C00 REAR LICENSE BRACKET | REAR LICENSE BRACKET | 1 | $28.74 | Available to order | 1 |
| 20 | 30006-060016870 BOLT M6x16 | BOLT M6x16 M6x16 | 6 | $1.25 | Available to order | 6 |
| 21 | 30006-080045810 BOLT | BOLT M8x45 | 6 | $2.29 | Available to order | 6 |
| 22 | 5HY0-222010 HOOK, CARGO BOX | HOOK, CARGO BOX | 1 | $45.99 | Available to order | 1 |
| 23 | 5HY0-222020 LEFT BRACKET, TAILGATE | LEFT BRACKET, TAILGATE | 1 | $77.04 | Available to order | 1 |
| 24 | 5HY0-222030-10000 RH BRACKET, CARGO BOX DOOR | RH BRACKET, CARGO BOX DOOR | 1 | $14.94 | Available to order | 1 |
| 25 | 30204-060810 NUT M6 | NUT M6 M6 | 6 | $1.25 | Available to order | 6 |
| 26 | 5HY0-220009 LIMIT PLATE ,CARGO BOX DOOR | LIMIT PLATE ,CARGO BOX DOOR | 1 | $5.74 | Available to order | 1 |
| 27 | 5HY0-222060 LOCK, TAILGATE, LH | LOCK, TAILGATE, LH | 1 | $45.99 | Available to order | 1 |
| 28 | 5HY0-222070 LOCK, TAILGATE, RH | LOCK, TAILGATE, RH | 1 | $45.99 | Available to order | 1 |
| 29 | 5HY0-222110-10000 LH ROTATION SHAFT ASSY | LH ROTATION SHAFT ASSY | 1 | $34.49 | Out of Stock | Notify Me |
| 30 | 5HY0-222120-10000 RH ROTATION SHAFT ASSY | RH ROTATION SHAFT ASSY | 1 | $19.54 | Out of Stock | Notify Me |
| 31 | 7030-220104 SLEEVE, ROTATE | SLEEVE, ROTATE | 1 | $3.44 | Out of Stock | Notify Me |
| 32 | 30006-080020810 BOLT M8x20 | BOLT M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 33 | 30204-080810 LOCK NUT | LOCK NUT M8 | 6 | $1.25 | Available to order | 6 |
| 34 | 7030-221710 DAMPER | DAMPER | 1 | $5.74 | Available to order | 1 |
| 35 | 30200-080810 NUT M8 | NUT M8 M8 | 6 | $2.29 | Available to order | 6 |
| 36 | 30303-080112 WASHER | WASHER 8 | 6 | $1.25 | Available to order | 6 |
| 37 | 9AWA-036000 POWER OUTLET BRACKET | POWER OUTLET BRACKET | 1 | $11.49 | Available to order | 1 |
| 38 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 39 | 5HY#-221601-1000 SCREW, PIN SHAFT | SCREW, PIN SHAFT | 1 | $3.44 | Available to order | 1 |
