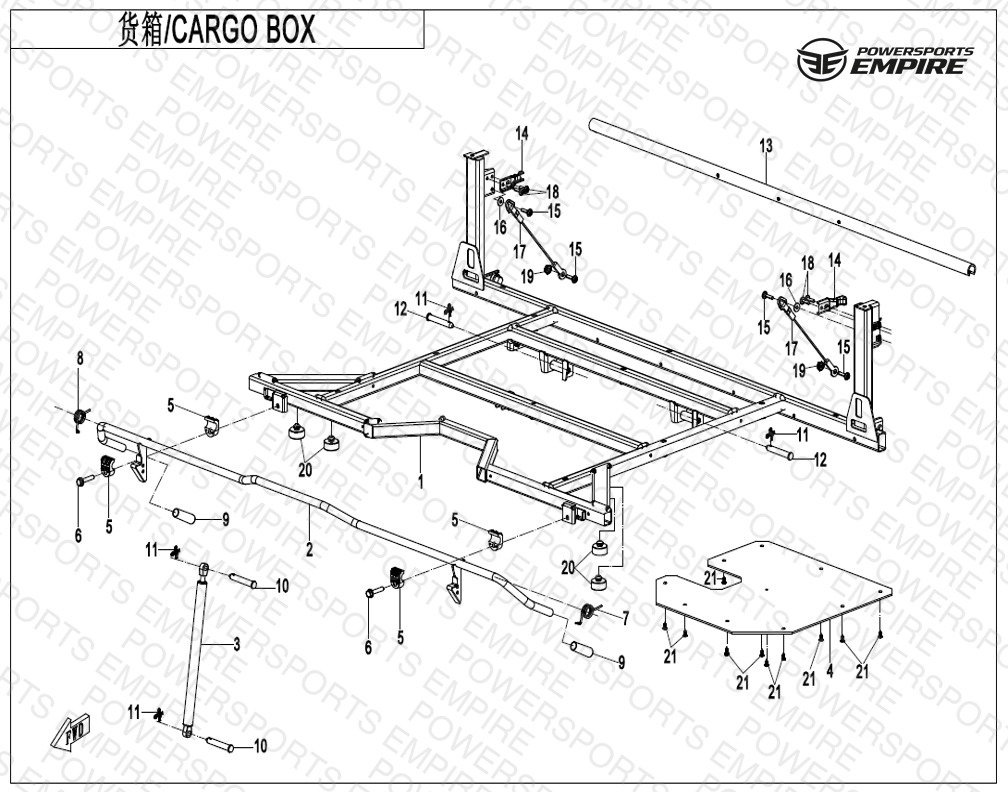

F22-2 — CARGO BOX
Parts (21)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 5ASV-221000-5000 UNDERFRAME | UNDERFRAME | 1 | — | Obsolete | View Details |
| 02 | 5ASV-222000-6000 TURNING SHAFT ASSY | TURNING SHAFT ASSY | 1 | $42.54 | Out of Stock | Notify Me |
| 03 | 5ASV-222080-6000 GAS SPRING ASSY | GAS SPRING ASSY | 1 | $48.29 | Out of Stock | Notify Me |
| 04 | 5ASV-223012-6000 HEAT INSULATOR, CARGO BOX | HEAT INSULATOR, CARGO BOX | 1 | $45.99 | Out of Stock | Notify Me |
| 05 | 7030-221123 COLLAR, ROTATE SHAFT | COLLAR, ROTATE SHAFT | 1 | $5.74 | Available to order | 1 |
| 06 | 30006-080045810 BOLT | BOLT M8x45 | 6 | $2.29 | Available to order | 6 |
| 07 | 5ASV-220001-6001 LH TORSIONAL SPRING | LH TORSIONAL SPRING | 1 | $3.44 | Available to order | 1 |
| 08 | 5ASV-220002-6001 RH TORSIONAL SPRING | RH TORSIONAL SPRING | 1 | $3.44 | Available to order | 1 |
| 09 | 7030-220104 SLEEVE, ROTATE | SLEEVE, ROTATE | 1 | $3.44 | Out of Stock | Notify Me |
| 10 | 7030-222251 PIN SHAFT,GAS SPRING | PIN SHAFT,GAS SPRING | 1 | $5.74 | Available to order | 1 |
| 11 | 5HY#-220008-1000 PIN SHAFT | PIN SHAFT | 1 | $1.25 | Available to order | 1 |
| 12 | 9030-220011-00001 PIN SHAFT,ROTATION | PIN SHAFT,ROTATION COLOR ZINC | 1 | $5.74 | Available to order | 1 |
| 13 | 5ASV-220003-6000 SHAFT, CARGO BOX DOOR | SHAFT, CARGO BOX DOOR | 1 | $57.49 | Out of Stock | Notify Me |
| 14 | 5ASV-220004-6000 BRACKET, CARGO BOX DOOR HANDLE | BRACKET, CARGO BOX DOOR HANDLE | 1 | $8.04 | Available to order | 1 |
| 15 | 7030-010508 BOLT | BOLT | 1 | $12.64 | Available to order | 1 |
| 16 | 30305-060112 WASHER | WASHER 6 | 6 | $1.25 | Available to order | 6 |
| 17 | 7030-010500-10000 CABLE, TAILGATE | CABLE, TAILGATE | 1 | $22.99 | Available to order | 1 |
| 18 | A000-040702 SCREW M6x12 | SCREW M6x12 M6x12 | 6 | — | Obsolete | View Details |
| 19 | 30204-060810 NUT M6 | NUT M6 M6 | 6 | $1.25 | Available to order | 6 |
| 20 | 5HY0-220004 RUBBER BUMPER | RUBBER BUMPER | 1 | $2.29 | Available to order | 1 |
| 21 | 30110-480130010 TAPPING SCREW ST4.8x13 | TAPPING SCREW ST4.8x13 ST4.8x13 | 6 | $2.29 | Obsolete | View Details |
