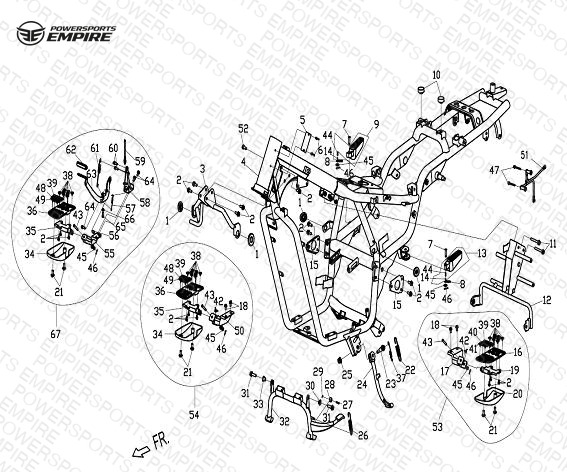

F22 — FRAME ASSY
Parts (67)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 8010-180004 RUBBER CUSHION | RUBBER CUSHION | 6 | $1.14 | Obsolete | View Details |
| 02 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 03 | 8050-032900 FRONT BRACKET, FRONT PANEL | FRONT BRACKET, FRONT PANEL | 1 | $11.49 | Obsolete | View Details |
| 04 | 8050-030100 FRAME WELDMENT | FRAME WELDMENT | 1 | $1099.99 | Obsolete | View Details |
| 05 | 8010-030008 NAME PLATE | NAME PLATE | 1 | $1.14 | Obsolete | View Details |
| 06 | 30902-0401320 POP RIVET | POP RIVET | 6 | $1.25 | Available to order | 6 |
| 07 | 30904-0803840 PIN | PIN | 6 | $1.14 | Obsolete | View Details |
| 08 | 8030-034302 PEDAL FIXING PLATE | PEDAL FIXING PLATE | 1 | $4.59 | Obsolete | View Details |
| 09 | 8050-033600 FOOT PEDAL COMP.(RH) | FOOT PEDAL COMP.(RH) | 1 | $45.99 | Obsolete | View Details |
| 10 | 8050-030001 RUBBER CUSHION, SEAT | RUBBER CUSHION, SEAT | 6 | $2.29 | Obsolete | View Details |
| 11 | 30006-060040840 BOLT, M6X40 | BOLT, M6X40 | 6 | $0.21 | Available to order | 6 |
| 12 | 805A-033000 REAR BRACKET, SPEAKER | REAR BRACKET, SPEAKER | 1 | $57.49 | Obsolete | View Details |
| 13 | 8050-033500 FOOT PEDAL COMP.(LH) | FOOT PEDAL COMP.(LH) | 1 | $45.99 | Obsolete | View Details |
| 14 | 5190-037814 STEEL BALL | STEEL BALL | 2 | $1.14 | Available to order | 2 |
| 15 | 8050-032800 REAR BRACKET ,FRONT PANEL | REAR BRACKET ,FRONT PANEL | 1 | $5.74 | Obsolete | View Details |
| 16 | 8030-034101 FOOT REST (LH) | FOOT REST (LH) | 1 | $114.99 | Obsolete | View Details |
| 17 | 8050-034103 BRACKET,FOOT REST (LH) | BRACKET,FOOT REST (LH) | 1 | $17.24 | Obsolete | View Details |
| 18 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 19 | 8050-034104 FIXTURE, FOOT REST (LH) | FIXTURE, FOOT REST (LH) | 1 | $11.49 | Obsolete | View Details |
| 20 | 8030-044102 BOTTOM COVER ,FOOT REST (LH) | BOTTOM COVER ,FOOT REST (LH) | 1 | $80.49 | Obsolete | View Details |
| 21 | 30112-060016410 SCREW | SCREW | 6 | $2.29 | Available to order | 6 |
| 22 | 8030-030003 SPRING, SIDE STAND | SPRING, SIDE STAND | 6 | $1.14 | Obsolete | View Details |
| 23 | 8030-030016 BOLT, SIDE STAND | BOLT, SIDE STAND | 6 | $4.59 | Obsolete | View Details |
| 24 | 8030-030002 SIDE STAND | SIDE STAND | 1 | $45.99 | Obsolete | View Details |
| 25 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 26 | 8010-030007 RETURN SPRING, MAIN STAND | RETURN SPRING, MAIN STAND | 1 | $4.59 | Obsolete | View Details |
| 27 | 30904-0501840 PIN | PIN | 6 | $1.14 | Obsolete | View Details |
| 28 | 8030-030001 RUBBER RING,MAIN STAND | RUBBER RING,MAIN STAND | 6 | $1.14 | Obsolete | View Details |
| 29 | 30903-0121440 COTTER PIN | COTTER PIN | 6 | $1.14 | Obsolete | View Details |
| 30 | 8030-030005 LEFT BUSH, MAIN STAND | LEFT BUSH, MAIN STAND | 1 | $6.89 | Obsolete | View Details |
| 31 | 30006-102025810 BOLT M10X1.25X25 | BOLT M10X1.25X25 | 6 | $2.29 | Available to order | 6 |
| 32 | 8030-034500 SIDE STAND | SIDE STAND | 1 | $114.99 | Obsolete | View Details |
| 33 | 6060-001001 RIGHT BUSH, MAIN STAND | RIGHT BUSH, MAIN STAND | 1 | $3.44 | Obsolete | View Details |
| 34 | 8030-044202 BOTTOM COVER ,FOOT REST (RH) | BOTTOM COVER ,FOOT REST (RH) | 1 | $80.49 | Obsolete | View Details |
| 35 | 8050-034204 FIXTURE, FOOT REST (RH) | FIXTURE, FOOT REST (RH) | 1 | $11.49 | Obsolete | View Details |
| 36 | 8030-034201 FOOT REST (RH) | FOOT REST (RH) | 1 | $114.99 | Obsolete | View Details |
| 37 | 8030-030004 SMALL SPRING, SIDE STAND | SMALL SPRING, SIDE STAND | 1 | $1.14 | Obsolete | View Details |
| 38 | 8030-034105 ANTISKID RUBBER PIN | ANTISKID RUBBER PIN | 6 | $1.14 | Obsolete | View Details |
| 39 | 8030-034106 ANTISKID RUBBER CUSHION | ANTISKID RUBBER CUSHION | 6 | $1.14 | Obsolete | View Details |
| 40 | 8030-034107 ANTISKID CUSHION,FOOT PEDAL(LH) | ANTISKID CUSHION,FOOT PEDAL(LH) | 6 | $0.56 | Obsolete | View Details |
| 41 | 8030-034108 ANTISKID CUSHION,FOOT PEDAL(LH) | ANTISKID CUSHION,FOOT PEDAL(LH) | 6 | $0.56 | Obsolete | View Details |
| 42 | 8030-034102 TORSION SPRING,FOOTREST DECK | TORSION SPRING,FOOTREST DECK | 6 | $11.49 | Obsolete | View Details |
| 43 | 30904-0804520 PIN | PIN | 6 | $1.14 | Obsolete | View Details |
| 44 | 5190-037813 SPRING, RETURN | SPRING, RETURN | 1 | $2.29 | Available to order | 1 |
| 45 | 30306-080112 WASHER | WASHER | 6 | $1.25 | Available to order | 6 |
| 46 | 30903-0252010 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 47 | 30006-060050840 BOLT M6x50 | BOLT M6x50 | 6 | $1.25 | Obsolete | View Details |
| 48 | 8030-034206 ANTISKID CUSHION, FOOT PEDAL(RH) | ANTISKID CUSHION, FOOT PEDAL(RH) | 6 | $0.56 | Obsolete | View Details |
| 49 | 8030-034205 ANTISKID CUSHION,FOOT PEDAL(RH) | ANTISKID CUSHION,FOOT PEDAL(RH) | 6 | $0.56 | Obsolete | View Details |
| 50 | 8050-034203 MOUNTING BRACKET,FOOTREST DECK(RH) | MOUNTING BRACKET,FOOTREST DECK(RH) | 1 | $17.24 | Obsolete | View Details |
| 51 | 8050-035600 MOUNTING BRACKET,RIGHT COVER | MOUNTING BRACKET,RIGHT COVER | 1 | $11.49 | Obsolete | View Details |
| 52 | 30105-060016440 SCREW M6×16 | SCREW M6×16 | 6 | $1.14 | Obsolete | View Details |
| 53 | 8050-0341C0 FOOTREST PEDAL(LH), DRIVER | FOOTREST PEDAL(LH), DRIVER | 1 | $164.99 | Obsolete | View Details |
| 54 | 8050-0342C0 FOOTREST PEDAL(RH), DRIVER | FOOTREST PEDAL(RH), DRIVER | 1 | $131.99 | Obsolete | View Details |
| 55 | 8050-034203-1000 MOUNT BRACKET, RIGHT FOOTSTEP | MOUNT BRACKET, RIGHT FOOTSTEP | 1 | $45.99 | Obsolete | View Details |
| 56 | 8050-080303 BUSHING | BUSHING | 1 | $2.29 | Obsolete | View Details |
| 57 | 8010-090001 SPRING, REAR BRAKE SWITCH | SPRING, REAR BRAKE SWITCH | 1 | $1.14 | Obsolete | View Details |
| 58 | 8050-080410 BRACKET, MASTER CYLINDER | BRACKET, MASTER CYLINDER | 1 | $11.49 | Obsolete | View Details |
| 59 | 6090-150300 SWITCH ,BRAKE LIGHT | SWITCH ,BRAKE LIGHT | 1 | $9.19 | Obsolete | View Details |
| 60 | 30006-060020840 BOLT M6×20 | BOLT M6×20 | 1 | $1.25 | Obsolete | View Details |
| 61 | 8050-080302 RETURN SPRING, REAR BRAKE | RETURN SPRING, REAR BRAKE | 1 | $3.44 | Obsolete | View Details |
| 62 | 8050-080304 RUBBER COLLAR, FOOTBRAKE LEVER | RUBBER COLLAR, FOOTBRAKE LEVER | 1 | $9.19 | Obsolete | View Details |
| 63 | 8050-080510 LEVER, FOOT BRAKE | LEVER, FOOT BRAKE | 1 | $45.99 | Obsolete | View Details |
| 64 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 65 | 30102-060030840 BOLT M6x30 | BOLT M6x30 | 6 | $1.25 | Obsolete | View Details |
| 66 | 30200-060810 NUT | NUT | 6 | $1.25 | Available to order | 6 |
| 67 | 8050-0343C0 FOOTREST BOARD ASSY. RH | FOOTREST BOARD ASSY. RH | 1 | — | Obsolete | View Details |
