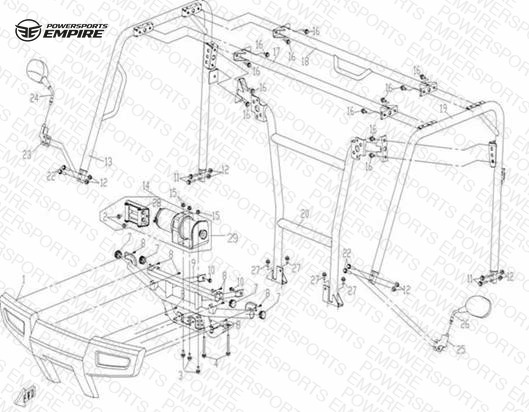

F22 — TOP FRAME & BUMPER
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9030-040001 PROTECTOR,BUMPER | PROTECTOR,BUMPER | 1 | $164.99 | Obsolete | View Details |
| 02 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 03 | 30006-080020810 BOLT M8x20 | BOLT M8x20 | 6 | $1.25 | Available to order | 6 |
| 04 | 30006-102090810 BOLT M10X1.25X90 | BOLT M10X1.25X90 | 6 | $3.44 | Available to order | 6 |
| 07 | 9010-040027 CAP,BUMPER | CAP,BUMPER | 1 | $5.74 | Obsolete | View Details |
| 08 | 30110-420160010 TAPPING SCREW | TAPPING SCREW | 6 | $2.29 | Available to order | 6 |
| 09 | 9030-231000 FRONT BUMPER | FRONT BUMPER | 1 | $274.99 | Obsolete | View Details |
| 10 | 30006-080016810 BOLT M8X16 | BOLT M8X16 | 6 | $1.25 | Available to order | 6 |
| 11 | 30006-102045840 BOLT M10x1.25x45 | BOLT M10x1.25x45 | 6 | $2.29 | Available to order | 6 |
| 12 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 13 | 9030-232100-2000 RIGHT SIDE BAR | RIGHT SIDE BAR | 1 | $329.99 | Obsolete | View Details |
| 14 | 9030-150740 WINCH MOTOR | WINCH MOTOR | 1 | $329.99 | Obsolete | View Details |
| 15 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 17 | 9030-232200-1000 TOP BAR | TOP BAR | 1 | $114.99 | Obsolete | View Details |
| 18 | 9030-232500-1000 TOP BAR 2 | TOP BAR 2 | 1 | $91.99 | Obsolete | View Details |
| 19 | 9030-232400-2000 LEFT SIDE BAR | LEFT SIDE BAR | 1 | $186.99 | Obsolete | View Details |
| 20 | 9030-232300-1000 REAR SIDE BAR | REAR SIDE BAR | 1 | $186.99 | Obsolete | View Details |
| 22 | 30006-102050840 BOLT M10×1.25×50 | BOLT M10×1.25×50 | 6 | $4.59 | Obsolete | View Details |
| 23 | 9030-260020 BRACKET,REAR VIEW MIRROR,(RH) | BRACKET,REAR VIEW MIRROR,(RH) | 1 | $45.99 | Obsolete | View Details |
| 24 | 5190-200300 REAR VIEW MIRROR(RH) | REAR VIEW MIRROR(RH) | 1 | $26.44 | Available to order | 1 |
| 25 | 9030-260010 BRACKET,REAR VIEW MIRROR,(LH) | BRACKET,REAR VIEW MIRROR,(LH) | 1 | $45.99 | Obsolete | View Details |
| 26 | 5190-200200 REAR VIEW MIRROR(LH) | REAR VIEW MIRROR(LH) | 1 | $26.44 | Obsolete | View Details |
| 28 | 9030-150730 CABLE PULLEY | CABLE PULLEY | 1 | $57.49 | Available to order | 1 |
