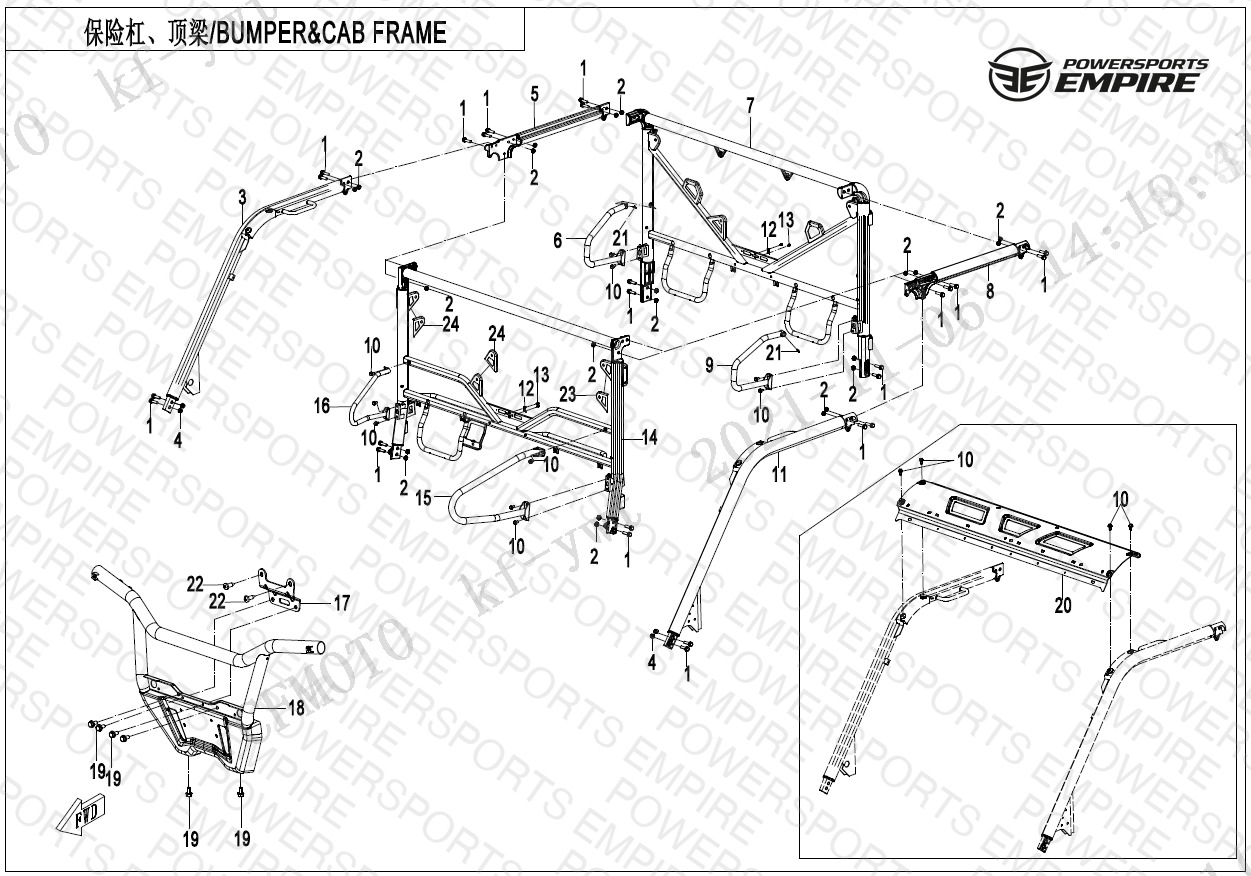

F23 — BUMPER & CAB FRAME
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 1 | 30006-102035110 BOLT M10x1.25x35 | BOLT M10x1.25x35 M10x1.25x35 | 6 | $1.60 | Available to order | 6 |
| 2 | 30225-102810 NUT M10X1.25 | NUT M10X1.25 M10x1.25 | 6 | $3.44 | Available to order | 6 |
| 3 | 5SYV-230400-6000-0BB00 RH BRACKET, FRONT CAB | RH BRACKET, FRONT CAB MATTE BLACK | 1 | $307.99 | Obsolete | View Details |
| 4 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 5 | 5SYV-230800-6002-0BP00 RH CONNECTING BEAM | RH CONNECTING BEAM MATTE BLACK | 1 | $197.99 | Out of Stock | Notify Me |
| 6 | 5SYV-230440-6000-0BB00 RH PROTECTION PIPE ASSY., REAR PASSENGER | RH PROTECTION PIPE ASSY., REAR PASSENGER PLASTIC POWDER | 1 | $80.49 | Available to order | 1 |
| 7 | 5SYV-230200-6001-0BB00 REAR CAB | REAR CAB PLASTIC POWDER | 1 | — | Obsolete | View Details |
| 8 | 5SYV-230700-6002-0BP00 LH CONNECTING BEAM | LH CONNECTING BEAM MATTE BLACK | 1 | $197.99 | Out of Stock | Notify Me |
| 9 | 5SYV-230430-6000-0BB00 LH PROTECTING PIPE, REAR PASSENGER | LH PROTECTING PIPE, REAR PASSENGER PLASTIC POWDER | 1 | $45.99 | Available to order | 1 |
| 10 | 30006-080016810 BOLT M8X16 | BOLT M8X16 M8x16 | 6 | $1.25 | Available to order | 6 |
| 11 | 5SYV-230100-6000-0BB00 LH BRACKET, FRONT CAB | LH BRACKET, FRONT CAB MATTE BLACK | 1 | $307.99 | Out of Stock | Notify Me |
| 12 | 5HY0-230520 FIXING SEAT, MIDDLE BACKREST | FIXING SEAT, MIDDLE BACKREST | 1 | $11.49 | Available to order | 1 |
| 13 | 30006-060012870 BOLT M6x12 | BOLT M6x12 M6x12 | 6 | $1.25 | Available to order | 6 |
| 14 | 5SYV-230600-6003-0BP00 MIDDLE CAB ASSY | MIDDLE CAB ASSY MATTE BLACK | 1 | $879.99 | Out of Stock | Notify Me |
| 15 | 5SYV-230410-6000-0BB00 LH PROTECTING PIPE, FRONT PASSENGER | LH PROTECTING PIPE, FRONT PASSENGER PLASTIC POWDER | 1 | $80.49 | Available to order | 1 |
| 16 | 5SYV-230420-6000-0BB00 RH PROTECTING PIPE, FRONT PASSENGER | RH PROTECTING PIPE, FRONT PASSENGER PLASTIC POWDER | 1 | $80.49 | Available to order | 1 |
| 17 | 5HY0-230010 REINFORCEMENT BRACKET, WINCH BRACKET | REINFORCEMENT BRACKET, WINCH BRACKET | 1 | $68.99 | Available to order | 1 |
| 18 | 5HY0-231100-2BB00 BUMPER | BUMPER PLASTIC POWDER | 1 | $296.99 | Out of Stock | Notify Me |
| 19 | 30006-102020810 BOLT M10x1.25x20 | BOLT M10x1.25x20 M10x1.25x20 | 6 | $2.29 | Out of Stock | Notify Me |
| 20 | 5HYV-230107-1H00-0BB00 BRACKET, TOP ROOF | BRACKET, TOP ROOF PLASTIC POWDER | 1 | $329.99 | Out of Stock | Notify Me |
| 21 | 30102-080020810 SCREW M8x20 | SCREW M8x20 M8x20 | 6 | $1.25 | Available to order | 6 |
| 22 | 30102-102020810 SCREW M10x20 | SCREW M10x20 M10x1.25x20 | 6 | $3.44 | Available to order | 6 |
| 23 | 5SYV-230803-6000 RUBBER SLEEVE, LH SEAT BELT BRACKET | RUBBER SLEEVE, LH SEAT BELT BRACKET | 1 | $10.34 | Available to order | 1 |
| 24 | 5SYV-230804-6000 RUBBER SLEEVE, RH SEAT BELT BRACKET | RUBBER SLEEVE, RH SEAT BELT BRACKET | 1 | $10.34 | Available to order | 1 |
