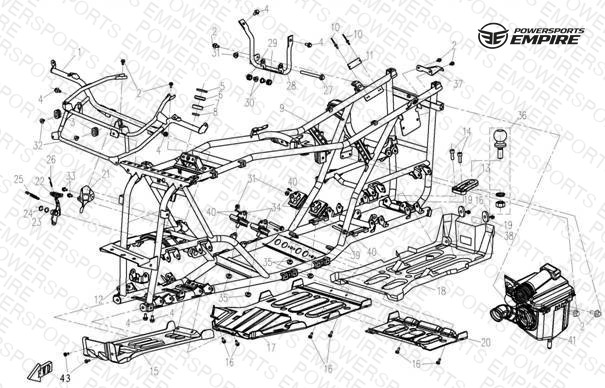

F24 — FRAME
Parts (42)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 9050-030040-3000 UPPER BRACKET ,RADIATOR | UPPER BRACKET ,RADIATOR | 1 | $80.49 | Obsolete | View Details |
| 02 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 03 | 9010-030047 RUBBER CUSHION | RUBBER CUSHION | 6 | $2.29 | Available to order | 6 |
| 04 | 30006-080014810 BOLT M8X14 | BOLT M8X14 | 6 | $1.25 | Available to order | 6 |
| 05 | 30500-025801N OIL SEAL | OIL SEAL | 2 | $2.30 | Obsolete | View Details |
| 06 | 9010-030003 BEARING RETAINER | BEARING RETAINER | 1 | $3.44 | Out of Stock | Notify Me |
| 07 | 30400-01780 BEARING | BEARING | 1 | $6.89 | Obsolete | View Details |
| 08 | 30500-025800N OIL SEAL | OIL SEAL | 1 | $2.29 | Obsolete | View Details |
| 09 | 905A-030100 FRAME | FRAME | 1 | $1099.99 | Obsolete | View Details |
| 10 | 30902-0401320 POP RIVET | POP RIVET | 6 | $1.25 | Available to order | 6 |
| 11 | 905A-190006 VIN PLATE | VIN PLATE | 1 | $2.29 | Obsolete | View Details |
| 12 | 9010-037400 BRACKET,FRONT AXLE | BRACKET,FRONT AXLE | 1 | $11.49 | Available to order | 1 |
| 13 | 9010-030002 TOWING BRACKET | TOWING BRACKET | 1 | $26.44 | Available to order | 1 |
| 14 | 30102-102040810 BOLT | BOLT | 6 | $2.29 | Available to order | 6 |
| 15 | 9010-040017-A000 FRONT PANEL, ENGINE | FRONT PANEL, ENGINE | 1 | $57.49 | Obsolete | View Details |
| 16 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 17 | 9010-040016-1000 SKID PLATE | SKID PLATE | 1 | $114.99 | Out of Stock | Notify Me |
| 18 | 9010-040015 REAR PANEL | REAR PANEL | 1 | $114.99 | Obsolete | View Details |
| 19 | 30301-060412 WASHER | WASHER | 6 | $2.29 | Out of Stock | Notify Me |
| 20 | 901A-040001 PANEL, DOUBLE SEAT | PANEL, DOUBLE SEAT | 1 | $22.99 | Obsolete | View Details |
| 21 | 9010-030009 PROTECTOR, FRONT BRAKE PUMP | PROTECTOR, FRONT BRAKE PUMP | 1 | $9.19 | Obsolete | View Details |
| 22 | 9010-080210 PEDAL BRAKE | PEDAL BRAKE | 1 | $17.24 | Obsolete | View Details |
| 23 | 30304-140440 WASHER | WASHER | 6 | $1.25 | Obsolete | View Details |
| 24 | 30801-01405 RETAINER 14 | RETAINER 14 | 6 | $2.29 | Available to order | 6 |
| 25 | 9010-080201 RETURN SPRING,BRAKE PEDAL | RETURN SPRING,BRAKE PEDAL | 6 | $1.25 | Available to order | 6 |
| 26 | 9010-080203-1000 RETURN SPRING,BRAKE | RETURN SPRING,BRAKE | 1 | $1.25 | Obsolete | View Details |
| 27 | 30006-122130840 BOLT M12×1.25×130 | BOLT M12×1.25×130 | 6 | $5.74 | Obsolete | View Details |
| 28 | 9010-037200-1000 REAR BRACKET | REAR BRACKET | 1 | $18.39 | Available to order | 1 |
| 29 | 9010-037205 CUSHION,UPPER BRACKET | CUSHION,UPPER BRACKET | 2 | $2.29 | Out of Stock | Notify Me |
| 30 | 9010-037210 BUSH,UPPER BRACKET | BUSH,UPPER BRACKET | 2 | $3.44 | Obsolete | View Details |
| 31 | 30204-122840 NUT M12×1.25 | NUT M12×1.25 | 6 | $2.29 | Obsolete | View Details |
| 32 | 5020-031002 RUBBER COLLAR | RUBBER COLLAR | 6 | $1.25 | Available to order | 6 |
| 33 | 30006-060010840 BOLT M6×10 | BOLT M6×10 | 6 | $1.25 | Obsolete | View Details |
| 34 | 401B-000200-10000 ENGINE MOUNT | ENGINE MOUNT | 1 | $45.99 | Available to order | 1 |
| 35 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 36 | 9010-204000 HITCH BALL, 1 7/8" (Not incl. USA) | HITCH BALL, 1 7/8" (Not incl. USA) | 1 | $57.49 | Available to order | 1 |
| 37 | 9050-030140 BRACKET, REAR DECORATION | BRACKET, REAR DECORATION | 1 | $6.89 | Obsolete | View Details |
| 38 | 9010-190012 INSTRUCTION LABEL, TOWING LOAD | INSTRUCTION LABEL, TOWING LOAD | 6 | $1.14 | Available to order | 6 |
| 39 | 30006-122145840 BOLT | BOLT | 6 | $10.34 | Obsolete | View Details |
| 40 | 30102-060012810 SCREW M6X12 | SCREW M6X12 | 6 | $1.25 | Available to order | 6 |
| 41 | 018B-110000 AIR FILTER | AIR FILTER | 1 | $164.99 | Obsolete | View Details |
| 42 | 9010-190029 HEAT INSULATOR, AIR FILTER | HEAT INSULATOR, AIR FILTER | 1 | $2.29 | Obsolete | View Details |
