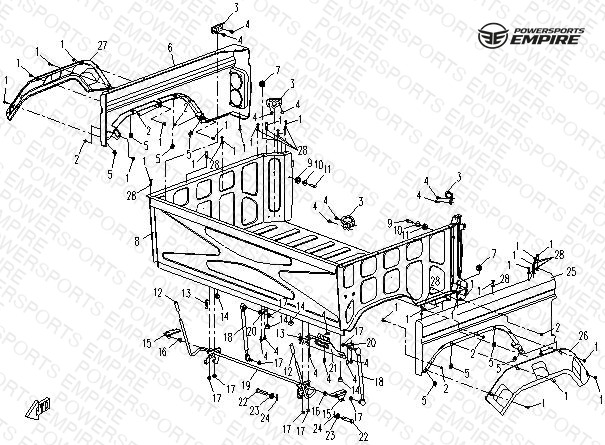

F24 — DUMP BOX I
Parts (28)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30112-060016410 SCREW | SCREW | 6 | $2.29 | Available to order | 6 |
| 02 | 30202-060140 NUT M6 | NUT M6 | 6 | $1.25 | Obsolete | View Details |
| 03 | 9030-220004 HOOK,BAND | HOOK,BAND | 1 | $5.74 | Available to order | 1 |
| 04 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 05 | 8030-040800-00001 NUT CLIP M6 | NUT CLIP M6 | 6 | $2.29 | Available to order | 6 |
| 06 | 9030-220016-0G20 PROTECTOR(RH),DUMP BOX | PROTECTOR(RH),DUMP BOX | 1 | $164.99 | Obsolete | View Details |
| 07 | 9030-220018 WIRE RUBBER | WIRE RUBBER | 6 | $0.91 | Obsolete | View Details |
| 08 | 9030-220100 DUMP BOX | DUMP BOX | 1 | $1099.99 | Obsolete | View Details |
| 09 | 9030-220007 DAMPER,TAILBOARD | DAMPER,TAILBOARD | 6 | $1.14 | Obsolete | View Details |
| 10 | 9030-220020 BUSH,TAILBOARD | BUSH,TAILBOARD | 1 | $4.59 | Obsolete | View Details |
| 11 | 30006-060025810 BOLT | BOLT | 6 | $3.44 | Available to order | 6 |
| 12 | 9030-221101 PROTECTOR,DUMP SHAFT | PROTECTOR,DUMP SHAFT | 6 | $1.14 | Obsolete | View Details |
| 13 | 9030-220009 SPRING,DUMP | SPRING,DUMP | 6 | $1.14 | Obsolete | View Details |
| 14 | 9030-220006 CUSHION,DUMP BOX | CUSHION,DUMP BOX | 6 | $2.29 | Obsolete | View Details |
| 15 | 9030-221102-1000 BRACKET,DUMP | BRACKET,DUMP | 1 | $8.04 | Obsolete | View Details |
| 16 | 9030-221103 BUSH,DUMP BRACKET | BUSH,DUMP BRACKET | 1 | $3.44 | Obsolete | View Details |
| 17 | 30204-080810 LOCK NUT | LOCK NUT | 6 | $1.25 | Available to order | 6 |
| 18 | 9030-221200 AIR SPRING ASSY. | AIR SPRING ASSY. | 1 | $34.49 | Obsolete | View Details |
| 19 | 9030-221110-1000 DUMP BRACKET ASSY. | DUMP BRACKET ASSY. | 1 | $45.99 | Obsolete | View Details |
| 20 | 9030-220005 HOLDER,AIR SPRING | HOLDER,AIR SPRING | 1 | $2.29 | Obsolete | View Details |
| 21 | 9030-221300 BRACKET,LICENSE PLATE | BRACKET,LICENSE PLATE | 1 | $45.99 | Obsolete | View Details |
| 22 | 9030-220011 PIN SHAFT,ROTATION | PIN SHAFT,ROTATION | 1 | $4.59 | Obsolete | View Details |
| 23 | 30306-120142 WASHER | WASHER | 6 | $1.25 | Obsolete | View Details |
| 24 | 30903-0322210 COTTER PIN | COTTER PIN | 6 | $1.25 | Available to order | 6 |
| 25 | 9030-220015-0G20 PROTECTOR(LH),DUMP BOX | PROTECTOR(LH),DUMP BOX | 1 | $164.99 | Obsolete | View Details |
| 26 | 9030-220012 REAR SIDE SUPPORT(LH) | REAR SIDE SUPPORT(LH) | 1 | $22.99 | Obsolete | View Details |
| 27 | 9030-220013 REAR SIDE SUPPORT(RH) | REAR SIDE SUPPORT(RH) | 1 | $22.99 | Obsolete | View Details |
| 28 | 9010-040089 NYLON WASHER | NYLON WASHER | 6 | $2.29 | Available to order | 6 |
