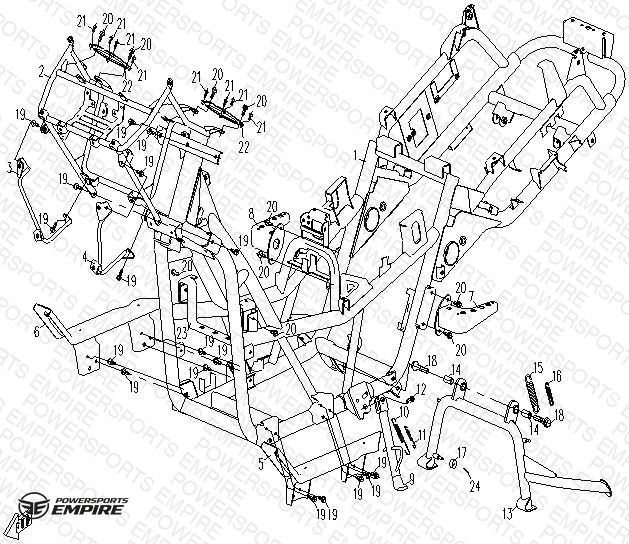

F24 — FRAME
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 806A-030100 FRAME ASSY | FRAME ASSY | 1 | $1099.99 | Obsolete | View Details |
| 02 | 8060-033800 FRONT BRACKET COMP. | FRONT BRACKET COMP. | 1 | $114.58 | Obsolete | View Details |
| 03 | 8060-033700 BRACKET, HEADLIGHT(RH) | BRACKET, HEADLIGHT(RH) | 1 | $17.24 | Obsolete | View Details |
| 04 | 8060-033600 BRACKET, HEADLIGHT(LH) | BRACKET, HEADLIGHT(LH) | 1 | $17.24 | Obsolete | View Details |
| 05 | 8060-037400 BRACKET,LEFT FOOTREST BOARD | BRACKET,LEFT FOOTREST BOARD | 1 | $40.24 | Obsolete | View Details |
| 06 | 8060-037500 BRACKET,RIGHT FOOTREST BOARD | BRACKET,RIGHT FOOTREST BOARD | 1 | $40.24 | Obsolete | View Details |
| 07 | 8060-035010 BRACKET, REAR LEFT PEDAL | BRACKET, REAR LEFT PEDAL | 1 | $14.94 | Obsolete | View Details |
| 08 | 8060-035020 BRACKET, REAR RIGHT PEDAL | BRACKET, REAR RIGHT PEDAL | 1 | $14.94 | Obsolete | View Details |
| 09 | 8060-037200 SIDE STAND | SIDE STAND | 1 | $14.94 | Obsolete | View Details |
| 10 | 5190-030017 SPRING, SIDE STAND | SPRING, SIDE STAND | 1 | $1.14 | Obsolete | View Details |
| 11 | 5190-030018 SMALL SPRING,SIDE STAND | SMALL SPRING,SIDE STAND | 1 | $1.14 | Obsolete | View Details |
| 12 | 6060-030006 BOLT, SIDE STAND | BOLT, SIDE STAND | 6 | $3.44 | Obsolete | View Details |
| 13 | 806A-037300 MAIN STAND | MAIN STAND | 1 | $57.49 | Obsolete | View Details |
| 14 | 8060-037313 BUSH, MAIN STAND | BUSH, MAIN STAND | 1 | $11.49 | Obsolete | View Details |
| 15 | 806A-001004 SPRING,MAIN STAND | SPRING,MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 16 | 806A-001005 SMALL SPRING, MAIN STAND | SMALL SPRING, MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 17 | 806A-037320 RUBBER RING, MAIN STAND | RUBBER RING, MAIN STAND | 1 | $2.29 | Obsolete | View Details |
| 18 | 30006-102045840 BOLT M10x1.25x45 | BOLT M10x1.25x45 | 6 | $2.29 | Available to order | 6 |
| 19 | 30006-060016870 BOLT M6x16 | BOLT M6x16 | 6 | $1.25 | Available to order | 6 |
| 20 | 30006-060012870 BOLT M6x12 | BOLT M6x12 | 6 | $1.25 | Available to order | 6 |
| 21 | 30105-050010440 SCREW M5x10 | SCREW M5x10 | 6 | $1.14 | Obsolete | View Details |
| 22 | 8060-036001 BRACKET, MIDRANGE SPEAKER | BRACKET, MIDRANGE SPEAKER | 1 | — | Obsolete | View Details |
| 23 | 8060-035030 BRACKET,BATTERY | BRACKET,BATTERY | 1 | $11.49 | Obsolete | View Details |
| 24 | 30903-0121420 COTTER PIN | COTTER PIN | 6 | $1.14 | Obsolete | View Details |
