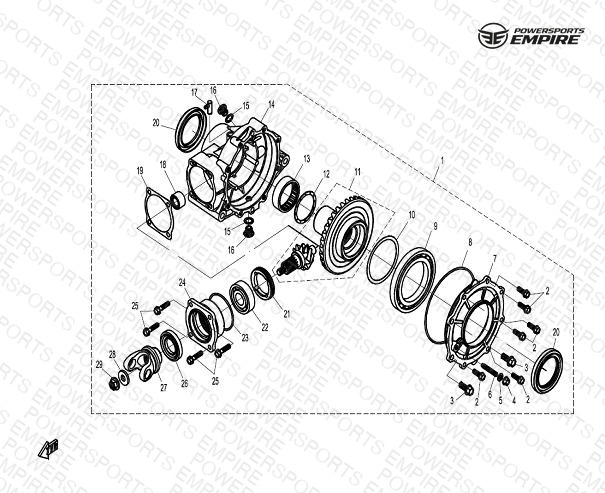

F30 — REAR DIFFERENTIAL
Parts (38)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | Q510-330000 REAR AXLE ASSY | REAR AXLE ASSY | 1 | $1099.99 | Available to order | 1 |
| 02 | 30008-080025810 BOLT M8x25 | BOLT M8x25 | 6 | $1.25 | Available to order | 6 |
| 03 | 0180-330004-0030 BOLT M10×1.25×25 | BOLT M10×1.25×25 | 6 | $1.14 | Obsolete | View Details |
| 04 | 0180-334006-0030 NUT M8 | NUT M8 | 6 | $1.14 | Obsolete | View Details |
| 05 | 0180-334004 WASHER 8.2x15x1.5 | WASHER 8.2x15x1.5 | 2 | $1.15 | Available to order | 2 |
| 06 | 0180-334005-0030 SCREW M8x45 | SCREW M8x45 | 6 | $3.44 | Obsolete | View Details |
| 07 | 0180-334001-0080 REAR GEAR BEARING HOUSING | REAR GEAR BEARING HOUSING | 1 | $45.99 | Available to order | 1 |
| 08 | 0180-334002 O-RING 151x3 | O-RING 151x3 | 2 | $3.44 | Available to order | 2 |
| 09 | 30499-08500 BEARING 16017 | BEARING 16017 | 1 | $80.49 | Available to order | 1 |
| 10 | 0180-330002 ADJUST SHIM 100×86×0.2 | ADJUST SHIM 100×86×0.2 0.20 MM | 2 | $3.44 | Available to order | 2 |
| 10-01 | 0180-330002-0001 ADJUST SHIM 100×86×0.3 | ADJUST SHIM 100×86×0.3 0.30 MM | 2 | $5.74 | Out of Stock | Notify Me |
| 10-02 | 0180-330002-0002 ADJUST SHIM 100×86×0.4 | ADJUST SHIM 100×86×0.4 0.40 MM | 2 | $5.74 | Available to order | 2 |
| 11 | Q510-330010-00001 BEVEL GEAR COMP,REAR AXLE | BEVEL GEAR COMP,REAR AXLE | 1 | $384.99 | Obsolete | View Details |
| 12 | 0180-330001 ADJUST SHIM 1.0 | ADJUST SHIM 1.0 1.00 MM | 2 | $5.74 | Out of Stock | Notify Me |
| 12-01 | 0180-330001-0001 ADJUST SHIM 1.2 | ADJUST SHIM 1.2 1.20 MM | 2 | $4.59 | Available to order | 2 |
| 12-02 | 0180-330001-0002 ADJUST SHIM 1.4 | ADJUST SHIM 1.4 1.40 MM | 2 | $4.59 | Available to order | 2 |
| 12-03 | 0180-330001-0003 ADJUST SHIM 1.6 | ADJUST SHIM 1.6 1.60 MM | 2 | $4.59 | Out of Stock | Notify Me |
| 12-04 | 0180-330001-0004 ADJUST SHIM 1.8 | ADJUST SHIM 1.8 1.80 MM | 2 | $4.59 | Out of Stock | Notify Me |
| 13 | 30404-05500 BEARING 55BTM6720A | BEARING 55BTM6720A | 1 | $34.49 | Available to order | 1 |
| 14 | Q530-332001 CASE, REAR AXLE | CASE, REAR AXLE | 1 | $252.99 | Obsolete | View Details |
| 15 | 0180-011006 WASHER 14 | WASHER 14 | 6 | $2.29 | Available to order | 6 |
| 16 | 0180-021008-00001 BOLT M14x1.25x12 | BOLT M14x1.25x12 | 6 | $3.44 | Available to order | 6 |
| 16-1 | 0180-332100 OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) MAGNETIC | 6 | $8.04 | Available to order | 6 |
| 17 | 0180-332006 PIPE JOINT | PIPE JOINT | 1 | $3.44 | Available to order | 1 |
| 18 | 30403-01700 BEARING NA5903(17X30X18) | BEARING NA5903(17X30X18) | 1 | $45.99 | Available to order | 1 |
| 19 | 0180-330003 ADJUST SHIM 0.5 | ADJUST SHIM 0.5 0.40 MM | 2 | $5.74 | Out of Stock | Notify Me |
| 19-1 | 0180-330003-0001 ADJUST SHIM 0.6 | ADJUST SHIM 0.6 0.50 MM | 2 | $5.74 | Available to order | 2 |
| 19-2 | 0180-330003-0002 ADJUST SHIM 0.4 | ADJUST SHIM 0.4 0.60 MM | 2 | $5.74 | Available to order | 2 |
| 20 | 0180-334003 OIL SEAL SD465×90×9NS | OIL SEAL SD465×90×9NS | 1 | $12.64 | Available to order | 1 |
| 21 | Q510-331003 BEARING RETAINER | BEARING RETAINER | 1 | $20.69 | Obsolete | View Details |
| 22 | 30400-02502 BEARING,BALL | BEARING,BALL | 1 | $20.69 | Available to order | 1 |
| 23 | 0180-331004 OIL-SEAL64.5x3 | OIL-SEAL64.5x3 | 2 | $3.44 | Available to order | 2 |
| 24 | Q510-331001 BEARING SEAT, REAR AXLE | BEARING SEAT, REAR AXLE | 1 | $57.49 | Obsolete | View Details |
| 25 | 30008-080035810 BOLT M8x35 | BOLT M8x35 | 6 | $1.25 | Available to order | 6 |
| 26 | 0180-331007 OIL SEAL 35X61X9 | OIL SEAL 35X61X9 | 1 | $9.19 | Available to order | 1 |
| 27 | 9060-300104 FLANGE, REAR AXLE | FLANGE, REAR AXLE | 1 | $68.99 | Available to order | 1 |
| 28 | 0180-331008-0050 WASHER 12.5×30×4 | WASHER 12.5×30×4 | 2 | $2.29 | Available to order | 2 |
| 29 | 0180-331009-0020 NUT M12x1.25 | NUT M12x1.25 | 6 | $2.29 | Available to order | 6 |
