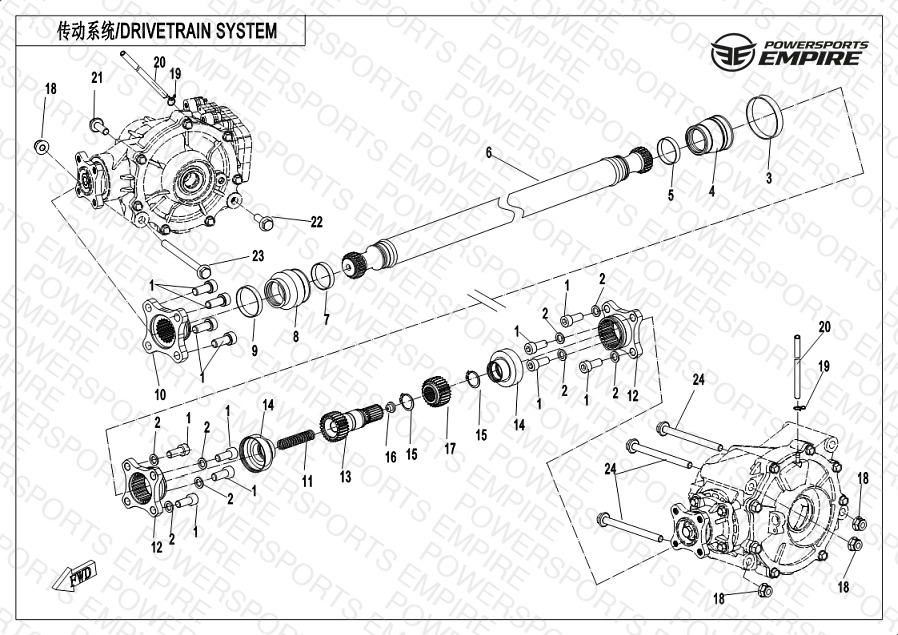

F30 — DRIVETRAIN SYSTEM
Parts (24)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 30102-102025810 SCREW M10x1.25x25 | SCREW M10x1.25x25 | 6 | $2.29 | Available to order | 6 |
| 02 | 9010-300002 WASHER F10 | WASHER F10 | 6 | $1.25 | Available to order | 6 |
| 03 | 9GQ0-290104 BIG CLAMP | BIG CLAMP | 1 | $5.74 | Available to order | 1 |
| 04 | 9GQ0-290103-10000 RUBBER BOOT | RUBBER BOOT | 1 | — | Obsolete | View Details |
| 05 | 9GQ0-290102 RING | RING | 1 | $5.74 | Available to order | 1 |
| 06 | 5HY0-290110 FRONT DRIVE SHAFT | FRONT DRIVE SHAFT | 1 | $197.99 | Out of Stock | Notify Me |
| 07 | 9CR6-300204 SMALL RING | SMALL RING | 1 | $6.89 | Available to order | 1 |
| 08 | 9CR6-300203-10000 DUST BOOT,FRONT DRIVE SHAFT | DUST BOOT,FRONT DRIVE SHAFT | 1 | $22.99 | Obsolete | View Details |
| 09 | 9CR6-300202 BIG RING | BIG RING | 1 | $5.74 | Available to order | 1 |
| 10 | 9CR6-300206-10000 DRIVE SLEEVE,REAR AXLE | DRIVE SLEEVE,REAR AXLE | 1 | $114.99 | Available to order | 1 |
| 11 | 5BW1-300101 SPRING | SPRING | 1 | $8.04 | Available to order | 1 |
| 12 | 7000-300102 COUPLER, FLANGE | COUPLER, FLANGE | 1 | $68.99 | Out of Stock | Notify Me |
| 13 | 7000-300103 SHAFT, GEAR | SHAFT, GEAR | 1 | $91.99 | Available to order | 1 |
| 14 | 7000-300104 COVER, GEAR | COVER, GEAR | 1 | $12.64 | Available to order | 1 |
| 15 | 30804-02215 RETAINER | RETAINER | 1 | $1.25 | Available to order | 1 |
| 16 | 7000-300105 DAMPER BLOCK | DAMPER BLOCK | 1 | $1.25 | Available to order | 1 |
| 17 | 7000-300106 COLLAR, GEAR | COLLAR, GEAR | 1 | $45.99 | Available to order | 1 |
| 18 | 30204-102810 NUT M10x1.25 | NUT M10x1.25 | 6 | $1.25 | Available to order | 6 |
| 19 | 30601-108010 CLAMP A8 | CLAMP A8 | 6 | $1.25 | Available to order | 6 |
| 20 | 9010-310001 BREATHER HOSE,FRONT DIFFERENTIAL | BREATHER HOSE,FRONT DIFFERENTIAL | 1 | $11.49 | Obsolete | View Details |
| 21 | 30006-102035810 BOLT, M10X1.2X35 | BOLT, M10X1.2X35 | 6 | $2.29 | Out of Stock | Notify Me |
| 22 | 30006-102025810 BOLT M10X1.25X25 | BOLT M10X1.25X25 | 6 | $2.29 | Available to order | 6 |
| 23 | 30006-102130810 BOLT M10X1.25X130 | BOLT M10X1.25X130 | 6 | $8.04 | Available to order | 6 |
| 24 | 30006-102120810 BOLT M10X1.25X120 | BOLT M10X1.25X120 | 6 | $6.89 | Available to order | 6 |
