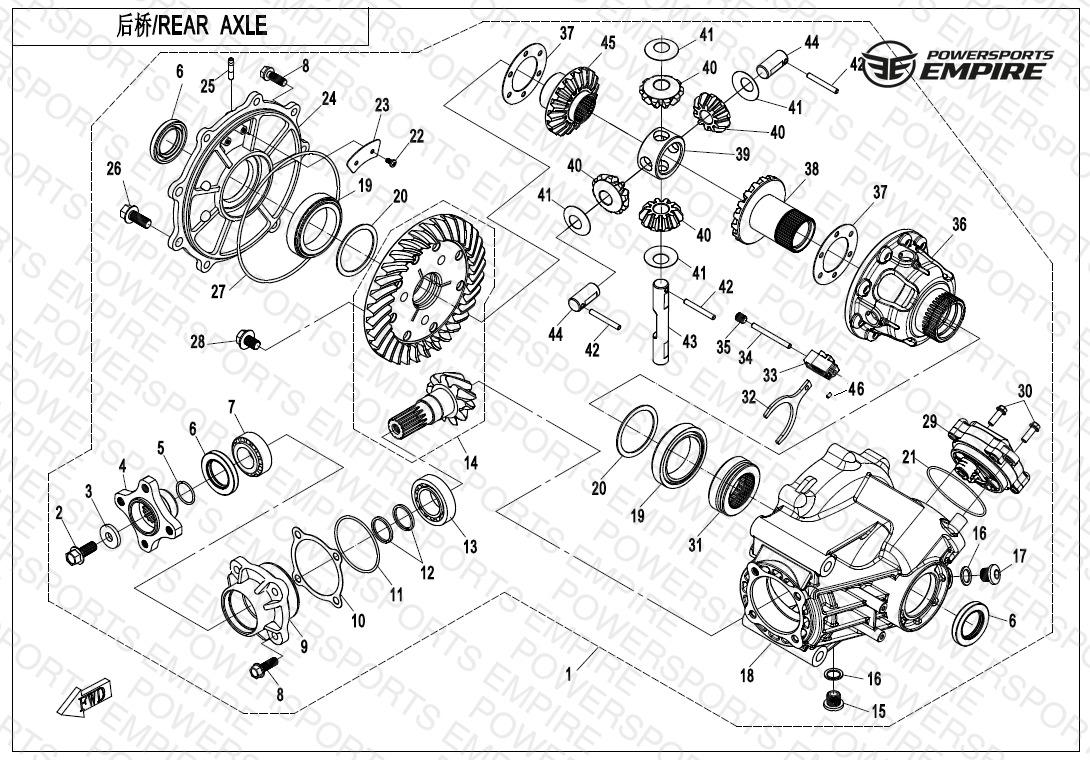

F33 — REAR AXLE
Parts (68)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | Q870-330000-00001 REAR GEAR CASE ASSY | REAR GEAR CASE ASSY | 1 | $1539.99 | Out of Stock | Notify Me |
| 02 | Q860-331002 BOLT M12X1.25X25 | BOLT M12X1.25X25 | 6 | $2.29 | Available to order | 6 |
| 03 | 0180-331008-00001 WASHER | WASHER 13x27.5x4 | 6 | $3.44 | Available to order | 6 |
| 04 | Q850-331002 COUPLER | COUPLER | 1 | $68.99 | Available to order | 1 |
| 05 | 0800-062205 O-RING 25x2 | O-RING 25x2 25x2 | 2 | $5.74 | Available to order | 2 |
| 06 | 0800-062204 OIL SEAL 35x50x7 | OIL SEAL 35x50x7 35x50x7 | 1 | $17.24 | Available to order | 1 |
| 07 | 30409-02500 BEARING | BEARING 33005(25x47x17) | 1 | $45.99 | Available to order | 1 |
| 08 | 0JYA-062104 BOLT M8x28 | BOLT M8x28 M8x28 | 6 | $2.29 | Available to order | 6 |
| 09 | Q830-311002-00001 BEARING SEAT | BEARING SEAT | 1 | $45.99 | Available to order | 1 |
| 10-01 | Q830-310023-00100 ADJUSTING WASHER T=0.20 | ADJUSTING WASHER T=0.20 T=0.20 | 6 | $5.74 | Available to order | 6 |
| 10-02 | Q830-310023-00200 ADJUSTING WASHER T=0.30 | ADJUSTING WASHER T=0.30 T=0.30 | 6 | $5.74 | Available to order | 6 |
| 11 | Q830-310006-10000 O-RING | O-RING 55x2.5 | 1 | $6.89 | Available to order | 1 |
| 12-14 | Q830-311003-00101 ADJUSTING WASHER 32x25.4 t=2.10 | ADJUSTING WASHER 32x25.4 t=2.10 T=2.10 | 6 | $2.29 | Out of Stock | Notify Me |
| 12-13 | Q830-311003-00201 ADJUSTING WASHER 32x25.4 t=2.20 | ADJUSTING WASHER 32x25.4 t=2.20 T=2.20 | 6 | — | Obsolete | View Details |
| 12-12 | Q830-311003-00301 ADJUSTING WASHER 32x25.4 t=2.30 | ADJUSTING WASHER 32x25.4 t=2.30 T=2.30 | 6 | $2.29 | Available to order | 6 |
| 12-11 | Q830-311003-00401 ADJUSTING WASHER 32x25.4 t=2.40 | ADJUSTING WASHER 32x25.4 t=2.40 T=2.40 | 6 | — | Obsolete | View Details |
| 12-10 | Q830-311003-00501 ADJUSTING WASHER 32x25.4 t=2.42 | ADJUSTING WASHER 32x25.4 t=2.42 T=2.42 | 6 | — | Obsolete | View Details |
| 12-09 | Q830-311003-00601 ADJUSTING WASHER 32x25.4 t=2.44 | ADJUSTING WASHER 32x25.4 t=2.44 T=2.44 | 6 | $2.29 | Available to order | 6 |
| 12-08 | Q830-311003-00701 ADJUSTING WASHER 32x25.4 t=2.46 | ADJUSTING WASHER 32x25.4 t=2.46 T=2.46 | 6 | — | Obsolete | View Details |
| 12-07 | Q830-311003-00801 ADJUSTING WASHER 32x25.4 t=2.48 | ADJUSTING WASHER 32x25.4 t=2.48 T=2.48 | 6 | $2.29 | Available to order | 6 |
| 12-06 | Q830-311003-00901 ADJUSTING WASHER 32x25.4 t=2.50 | ADJUSTING WASHER 32x25.4 t=2.50 T=2.50 | 6 | — | Obsolete | View Details |
| 12-05 | Q830-311003-01001 ADJUSTING WASHER 32x25.4 t=2.60 | ADJUSTING WASHER 32x25.4 t=2.60 T=2.60 | 6 | $2.29 | Out of Stock | Notify Me |
| 12-04 | Q830-311003-01100 ADJUSTING WASHER 32x25.4 T=2.70 | ADJUSTING WASHER 32x25.4 T=2.70 T=2.70 | 6 | $3.44 | Available to order | 6 |
| 12-03 | Q830-311003-01201 ADJUSTING WASHER 32x25.4 t=2.80 | ADJUSTING WASHER 32x25.4 t=2.80 T=2.80 | 6 | $2.29 | Available to order | 6 |
| 12-02 | Q830-311003-01301 ADJUSTING WASHER 32x25.4 t=2.90 | ADJUSTING WASHER 32x25.4 t=2.90 T=2.90 | 6 | $2.29 | Available to order | 6 |
| 12-01 | Q830-311003-01401 ADJUSTING WASHER 32x25.4 t=3.00 | ADJUSTING WASHER 32x25.4 t=3.00 T=3.00 | 6 | — | Obsolete | View Details |
| 13 | 30409-03000 BEARING | BEARING 32006(30x55x17) | 1 | $45.99 | Available to order | 1 |
| 14 | Q850-3300A0-00003 REAR GEAR CASE BEVEL GEARÂ | REAR GEAR CASE BEVEL GEARÂ | 1 | $208.99 | Available to order | 1 |
| 15 | 0180-332100 OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) M14x1.25x12 | 6 | $8.04 | Available to order | 6 |
| 16 | 0180-011006 WASHER 14 | WASHER 14 14 | 6 | $2.29 | Available to order | 6 |
| 17 | 0180-021008-00001 BOLT M14x1.25x12 | BOLT M14x1.25x12 | 6 | $3.44 | Available to order | 6 |
| 18 | Q870-330001 REAR GEAR CASE | REAR GEAR CASE | 1 | $208.99 | Available to order | 1 |
| 19 | 30409-05000 BEARING | BEARING | 1 | $91.99 | Available to order | 1 |
| 20-01 | Q820-330003-00100 ADJUSTING WASHER 61x50.5 T=0.10 | ADJUSTING WASHER 61x50.5 T=0.10 T=0.10 | 1 | $2.29 | Available to order | 1 |
| 20-09 | Q820-330003-00200 ADJUSTING WASHER 61x50.5 T=0.30 | ADJUSTING WASHER 61x50.5 T=0.30 T=0.30 | 1 | $2.29 | Available to order | 1 |
| 20-08 | Q820-330003-00300 ADJUSTING WASHER 61x50.5 T=0.50 | ADJUSTING WASHER 61x50.5 T=0.50 T=0.50 | 1 | $3.44 | Out of Stock | Notify Me |
| 20-07 | Q820-330003-00400 ADJUSTING WASHER 61x50.5 T=0.90 | ADJUSTING WASHER 61x50.5 T=0.90 T=0.90 | 1 | $4.59 | Available to order | 1 |
| 20-06 | Q820-330003-00500 ADJUSTING WASHER 61x50.5 T=0.92 | ADJUSTING WASHER 61x50.5 T=0.92 T=0.92 | 1 | $4.59 | Available to order | 1 |
| 20-05 | Q820-330003-00600 ADJUSTING WASHER 61x50.5 T=0.94 | ADJUSTING WASHER 61x50.5 T=0.94 T=0.94 | 1 | $4.59 | Available to order | 1 |
| 20-04 | Q820-330003-00700 ADJUSTING WASHER 61x50.5 T=0.96 | ADJUSTING WASHER 61x50.5 T=0.96 T=0.96 | 1 | $4.59 | Available to order | 1 |
| 20-03 | Q820-330003-00800 ADJUSTING WASHER 61x50.5 T=0.98 | ADJUSTING WASHER 61x50.5 T=0.98 T=0.98 | 1 | $4.59 | Available to order | 1 |
| 20-02 | Q820-330003-00900 ADJUSTING WASHER 61x50.5 T=1.00 | ADJUSTING WASHER 61x50.5 T=1.00 T=1.00 | 1 | $3.44 | Available to order | 1 |
| 21 | Q830-310012-10000 O-RING 67.5x2 | O-RING 67.5x2 67.5x2 | 1 | $5.74 | Available to order | 1 |
| 22 | 30105-040008410 CROSS SCREW, M4X8 | CROSS SCREW, M4X8 | 6 | $2.29 | Available to order | 6 |
| 23 | Q830-310022 OIL GUARD | OIL GUARD | 1 | $3.44 | Available to order | 1 |
| 24 | Q850-330002 COVER, REAR DIFFERENTIAL CASE | COVER, REAR DIFFERENTIAL CASE | 1 | $45.99 | Obsolete | View Details |
| 25 | 0180-311004-0020 JOINT , BREATHER HOSE | JOINT , BREATHER HOSE | 1 | $3.44 | Available to order | 1 |
| 26 | 0180-330004-0010 BOLT M10x1.25x25 | BOLT M10x1.25x25 M10x1.25x25 | 6 | — | Obsolete | View Details |
| 27 | 0180-334002 O-RING 151x3 | O-RING 151x3 151x3 | 2 | $3.44 | Available to order | 2 |
| 28 | 0180-313100-0010 BOLT M10X1.25X18 | BOLT M10X1.25X18 M10x1.25x18 | 6 | $2.29 | Available to order | 6 |
| 29 | Q890-314000-10000 FRONT GEAR CASE MOTOR ASSY | FRONT GEAR CASE MOTOR ASSY | 1 | $285.99 | Available to order | 1 |
| 30 | 0010-023008 BOLT M6x18 | BOLT M6x18 M6x18 | 6 | — | Obsolete | View Details |
| 31 | Q870-330003 SPLINE BUSHING | SPLINE BUSHING | 1 | $29.89 | Available to order | 1 |
| 32 | Q870-330002 FORK | FORK | 1 | $11.49 | Available to order | 1 |
| 33 | Q890-310010 BLOCK ASSY. | BLOCK ASSY. | 1 | $57.49 | Out of Stock | Notify Me |
| 34 | Q870-330004 PIN SHAFT | PIN SHAFT | 1 | $3.44 | Available to order | 1 |
| 35 | 30130-080010820 SCREW M8x10 | SCREW M8x10 M8x10 | 6 | $1.25 | Obsolete | View Details |
| 36 | Q870-333101 DIFFERENTIAL HOUSING | DIFFERENTIAL HOUSING | 1 | $120.99 | Available to order | 1 |
| 37 | Q870-333108 WASHER, CV SHAFT GEAR | WASHER, CV SHAFT GEAR | 1 | $3.44 | Available to order | 1 |
| 38 | Q870-333103 LH CV SHAFT GEAR | LH CV SHAFT GEAR | 1 | $114.99 | Available to order | 1 |
| 39 | Q870-333102 CROSS BUSHING | CROSS BUSHING | 1 | $19.54 | Available to order | 1 |
| 40 | Q870-333105 PLANET GEAR | PLANET GEAR | 1 | $17.24 | Available to order | 1 |
| 41 | Q870-333109 SPHERICAL WASHER | SPHERICAL WASHER | 1 | $2.29 | Available to order | 1 |
| 42 | 30906-0504000 PIN | PIN | 1 | $1.25 | Available to order | 1 |
| 43 | Q870-333106 PLANET GEAR SHAFT | PLANET GEAR SHAFT | 1 | $22.99 | Available to order | 1 |
| 44 | Q870-333107 SHORT PLANET GEAR SHAFT | SHORT PLANET GEAR SHAFT | 1 | $9.19 | Available to order | 1 |
| 45 | Q870-333104 RH CV SHAFT GEAR | RH CV SHAFT GEAR | 1 | $68.99 | Available to order | 1 |
| 46 | 30913-0300550 PIN SHAFT | PIN SHAFT | 1 | $6.89 | Available to order | 1 |
