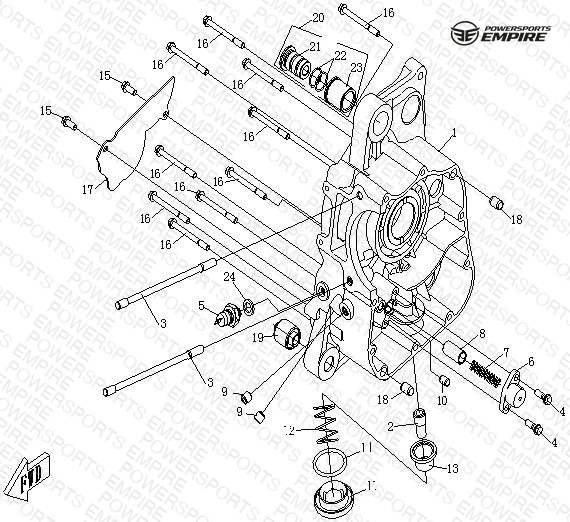

E02 — RIGHT CRANKCASE
Parts (23)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 01A0-012101-0080 RIGHT CRANKCASE | RIGHT CRANKCASE | 1 | $219.99 | Obsolete | View Details |
| 02 | 01A0-012104 INLET NOZZLE | INLET NOZZLE | 1 | $3.44 | Obsolete | View Details |
| 03 | 01A0-012001-0020 CYLINDER STUD | CYLINDER STUD | 1 | $5.74 | Obsolete | View Details |
| 04 | 0010-023008-00001 BOLT | BOLT | 6 | $1.25 | Available to order | 6 |
| 05 | 0800-0124A0 OIL PRESSURE SWITCH WITH CONVERSION CABLE | OIL PRESSURE SWITCH WITH CONVERSION CABLE | 1 | $34.49 | Available to order | 1 |
| 06 | 01A0-012006 COVER,PRESSURE LIMITING VALVE | COVER,PRESSURE LIMITING VALVE | 1 | $9.19 | Obsolete | View Details |
| 07 | 01A0-012007 SPRING,PRESSURE LIMITING VALVE | SPRING,PRESSURE LIMITING VALVE | 1 | $3.44 | Available to order | 1 |
| 08 | 01A0-012008 PRESSURE LIMITING VALVE SPOOL | PRESSURE LIMITING VALVE SPOOL | 1 | $3.44 | Obsolete | View Details |
| 09 | 30131-100010810 SCREW | SCREW | 6 | $0.21 | Available to order | 6 |
| 10 | 0010-080008 PIN, DOWELf8x14 | PIN, DOWELf8x14 | 6 | $1.25 | Obsolete | View Details |
| 11 | 01A0-012002-0080 SCREEN COVER | SCREEN COVER | 1 | $11.49 | Obsolete | View Details |
| 12 | 01A0-012009 SCREEN SPRING | SCREEN SPRING | 1 | $3.44 | Available to order | 1 |
| 13 | 01A0-012004 SCREEN | SCREEN | 1 | $11.49 | Obsolete | View Details |
| 14 | 01A0-012003 O-RING 35x3.5 | O-RING 35x3.5 | 2 | $3.44 | Available to order | 2 |
| 15 | 0110-090008-0030 BOLT M6X14 | BOLT M6X14 | 6 | $1.14 | Available to order | 6 |
| 16 | 0010-011017-0030 BOLT Mx60 | BOLT Mx60 | 6 | $1.14 | Obsolete | View Details |
| 17 | 01A0-012005-0020 OIL GUARD | OIL GUARD | 1 | $8.04 | Obsolete | View Details |
| 18 | 0010-021005 DOWEL PIN f 10x14 | DOWEL PIN f 10x14 | 6 | $1.25 | Available to order | 6 |
| 20 | 01A0-011010 ENGINE HANGER ASSY | ENGINE HANGER ASSY | 1 | $11.49 | Obsolete | View Details |
| 21 | 01A0-011002-0050 INNER BUSH, ENGINE HANGER | INNER BUSH, ENGINE HANGER | 1 | $5.74 | Obsolete | View Details |
| 22 | 0010-011008 O-RING, 15.8X2.4 | O-RING, 15.8X2.4 | 2 | $1.25 | Available to order | 2 |
| 23 | 0010-011010-0050 OUTER BUSH, ENGINE HANGER | OUTER BUSH, ENGINE HANGER | 1 | $5.74 | Obsolete | View Details |
| 24 | 0010-060010 WASHER 10 | WASHER 10 | 6 | $3.44 | Available to order | 6 |
