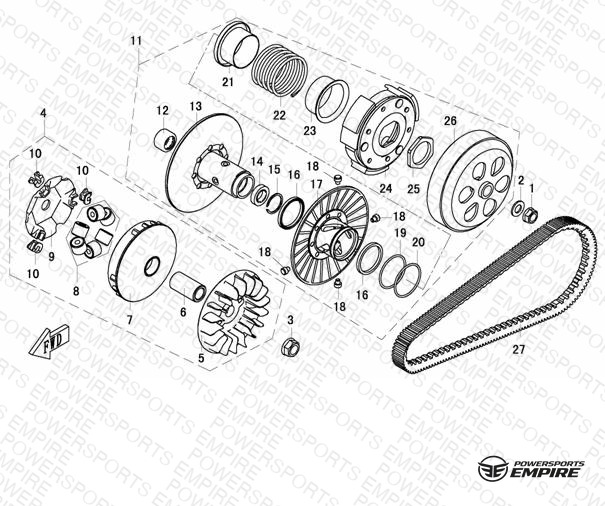

E05-2 — CVT&CLUTCH ASSY
Parts (27)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0110-052008-0020 BOLT,M12x1.25 | BOLT,M12x1.25 | 6 | $2.29 | Obsolete | View Details |
| 02 | 01AD-050002 WASHER 12.3x21x2 | WASHER 12.3x21x2 | 6 | $2.29 | Obsolete | View Details |
| 03 | 0120-051001 NUT M14X1.5,DRIVER PULLEY | NUT M14X1.5,DRIVER PULLEY | 1 | $2.29 | Obsolete | View Details |
| 04 | 01AD-051000-1000 DRIVE PULLEY | DRIVE PULLEY | 1 | $164.99 | Obsolete | View Details |
| 05 | 01AD-051001 DRIVE PULLEY FACE | DRIVE PULLEY FACE | 1 | $45.99 | Obsolete | View Details |
| 06 | 01AD-051003-1000 COLLAR, PRIMARY FIXED SHEAVE | COLLAR, PRIMARY FIXED SHEAVE | 1 | $17.24 | Obsolete | View Details |
| 07 | 01AD-051100 MOVABLE DRIVE FACE COMP. | MOVABLE DRIVE FACE COMP. | 1 | $57.49 | Obsolete | View Details |
| 08 | 01AD-051200 WEIGHT ROLLER COMP. | WEIGHT ROLLER COMP. | 6 | $8.04 | Obsolete | View Details |
| 09 | 01AD-051002 RAMP PLATE | RAMP PLATE | 1 | $11.49 | Obsolete | View Details |
| 10 | 01AD-051004 SLIDING PIECE | SLIDING PIECE | 3 | $1.25 | Obsolete | View Details |
| 11 | 01AD-052000 DRIVEN PULLEY & CLUTCH | DRIVEN PULLEY & CLUTCH | 1 | $307.99 | Obsolete | View Details |
| 12 | 01AD-052500 NEEDLE BEARING 20x29x18 | NEEDLE BEARING 20x29x18 | 1 | $11.49 | Obsolete | View Details |
| 13 | 01AD-052400 DRIVEN FACE COMP. | DRIVEN FACE COMP. | 1 | $103.49 | Obsolete | View Details |
| 14 | 01AD-052002 BEARING 17x30x7 | BEARING 17x30x7 | 1 | $34.49 | Obsolete | View Details |
| 15 | 01AD-052001 CIRCLIP | CIRCLIP | 6 | $2.29 | Obsolete | View Details |
| 16 | 01AD-052300 OIL SEAL, DRIVEN PULLEY | OIL SEAL, DRIVEN PULLEY | 1 | $3.44 | Obsolete | View Details |
| 17 | 01AD-052600 MOVABLE DRIVEN PULLEY COMP. | MOVABLE DRIVEN PULLEY COMP. | 1 | $103.49 | Obsolete | View Details |
| 18 | 01AD-052006 GUIDE PIN | GUIDE PIN | 1 | $2.29 | Obsolete | View Details |
| 19 | 01AD-052007 O-RING | O-RING | 2 | $3.44 | Obsolete | View Details |
| 20 | 01AD-052008 O-RING | O-RING | 2 | $3.44 | Obsolete | View Details |
| 21 | 01AD-052005 SEAL COLLAR | SEAL COLLAR | 1 | $11.49 | Obsolete | View Details |
| 22 | 01AD-052004 SPRING, DRIVEN GEAR | SPRING, DRIVEN GEAR | 1 | $6.89 | Obsolete | View Details |
| 23 | 01AD-052003 SPRING SEAT | SPRING SEAT | 1 | $6.89 | Obsolete | View Details |
| 24 | 01AD-052200 CLUTCH SHOES | CLUTCH SHOES | 1 | $114.99 | Obsolete | View Details |
| 25 | 01AD-052009 NUT | NUT | 1 | $3.44 | Obsolete | View Details |
| 26 | 01AD-052100 OUTER PULLEY FACE, CLUTCH | OUTER PULLEY FACE, CLUTCH | 1 | $80.49 | Obsolete | View Details |
| 27 | 01AD-053000 CVT BELT | CVT BELT | 1 | $219.99 | Obsolete | View Details |
