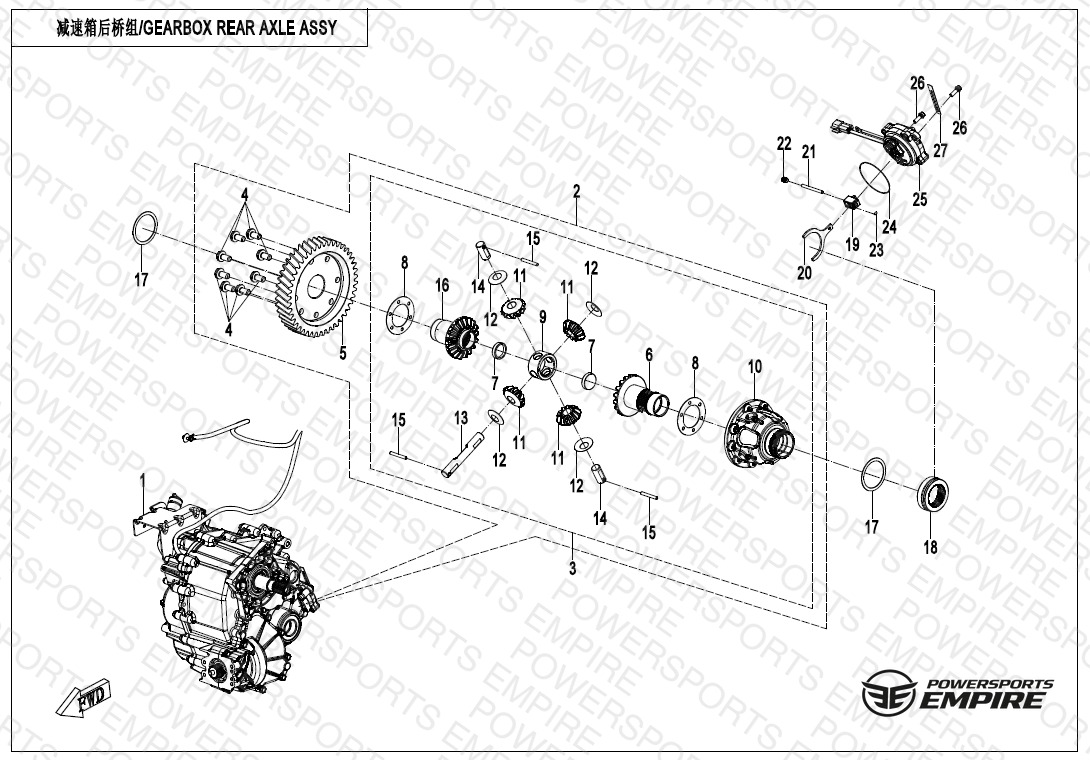

E06-3 — GEARBOX REAR AXLE ASSY
Parts (34)
| # | Part Number | Description | Qty | Price | Status | |
|---|---|---|---|---|---|---|
| 01 | 0NYV-06010Z-3005 GEARBOX ASSY | GEARBOX ASSY | 1 | $3299.99 | Obsolete | View Details |
| 02 | 0NYV-06900Z-3001 REAR GEAR CASE DIFFERENTIAL ASSY | REAR GEAR CASE DIFFERENTIAL ASSY | 1 | $659.99 | Available to order | 1 |
| 03 | 0NYV-069100-3001 DIFFERENTIAL ASSY | DIFFERENTIAL ASSY | 1 | $549.99 | Available to order | 1 |
| 05 | 0NYV-069001-3000 REAR GEAR CASE GEAR | REAR GEAR CASE GEAR | 1 | $219.99 | Available to order | 1 |
| 06 | 0NYV-069106-3001 LH SHAFT GEAR | LH SHAFT GEAR | 1 | $142.99 | Available to order | 1 |
| 07 | 0NYV-069107-3000 SHAFT GEAR SEAL COVER | SHAFT GEAR SEAL COVER | 1 | $2.29 | Available to order | 1 |
| 08 | 0NYV-069105-3001 SEMIAXIS GEAR GASKET | SEMIAXIS GEAR GASKET | 1 | — | Obsolete | View Details |
| 09 | Q870-333102 CROSS BUSHING | CROSS BUSHING | 1 | $19.54 | Available to order | 1 |
| 10 | 0NYV-069103-3000 DIFFERENTIAL HOUSING | DIFFERENTIAL HOUSING | 1 | $120.99 | Available to order | 1 |
| 11 | Q870-333105 PLANET GEAR | PLANET GEAR | 1 | $17.24 | Available to order | 1 |
| 12 | Q870-333109 SPHERICAL WASHER | SPHERICAL WASHER | 1 | $2.29 | Available to order | 1 |
| 13 | Q870-333106 PLANET GEAR SHAFT | PLANET GEAR SHAFT | 1 | $22.99 | Available to order | 1 |
| 14 | Q870-333107 SHORT PLANET GEAR SHAFT | SHORT PLANET GEAR SHAFT | 1 | $9.19 | Available to order | 1 |
| 15 | 30906-0504000 PIN | PIN | 1 | $1.25 | Available to order | 1 |
| 16 | 0NYV-069102-3001 RH CV SHAFT GEAR | RH CV SHAFT GEAR | 1 | $103.49 | Available to order | 1 |
| 17-01 | Q820-330003-00100 ADJUSTING WASHER 61x50.5 T=0.10 | ADJUSTING WASHER 61x50.5 T=0.10 T=0.10 | 1 | $2.29 | Available to order | 1 |
| 17-02 | Q820-330003-00200 ADJUSTING WASHER 61x50.5 T=0.30 | ADJUSTING WASHER 61x50.5 T=0.30 T=0.30 | 1 | $2.29 | Available to order | 1 |
| 17-03 | Q820-330003-00300 ADJUSTING WASHER 61x50.5 T=0.50 | ADJUSTING WASHER 61x50.5 T=0.50 T=0.50 | 1 | $3.44 | Out of Stock | Notify Me |
| 17-04 | Q820-330003-00400 ADJUSTING WASHER 61x50.5 T=0.90 | ADJUSTING WASHER 61x50.5 T=0.90 T=0.90 | 1 | $4.59 | Available to order | 1 |
| 17-05 | Q820-330003-00500 ADJUSTING WASHER 61x50.5 T=0.92 | ADJUSTING WASHER 61x50.5 T=0.92 T=0.92 | 1 | $4.59 | Available to order | 1 |
| 17-06 | Q820-330003-00600 ADJUSTING WASHER 61x50.5 T=0.94 | ADJUSTING WASHER 61x50.5 T=0.94 T=0.94 | 1 | $4.59 | Available to order | 1 |
| 17-07 | Q820-330003-00700 ADJUSTING WASHER 61x50.5 T=0.96 | ADJUSTING WASHER 61x50.5 T=0.96 T=0.96 | 1 | $4.59 | Available to order | 1 |
| 17-08 | Q820-330003-00800 ADJUSTING WASHER 61x50.5 T=0.98 | ADJUSTING WASHER 61x50.5 T=0.98 T=0.98 | 1 | $4.59 | Available to order | 1 |
| 17-09 | Q820-330003-00900 ADJUSTING WASHER 61x50.5 T=1.00 | ADJUSTING WASHER 61x50.5 T=1.00 T=1.00 | 1 | $3.44 | Available to order | 1 |
| 18 | 0NYV-070001-3000 SPLINE BUSHING | SPLINE BUSHING | 1 | $22.99 | Available to order | 1 |
| 19 | Q890-310010 BLOCK ASSY. | BLOCK ASSY. | 1 | $57.49 | Out of Stock | Notify Me |
| 20 | Q870-330002 FORK | FORK | 1 | $11.49 | Available to order | 1 |
| 21 | Q870-330004 PIN SHAFT | PIN SHAFT | 1 | $3.44 | Available to order | 1 |
| 22 | 30130-080010810 SCREW | SCREW | 6 | $1.25 | Available to order | 6 |
| 23 | 30913-0300550 PIN SHAFT | PIN SHAFT | 1 | $6.89 | Available to order | 1 |
| 24 | Q830-310012-10000 O-RING 67.5x2 | O-RING 67.5x2 | 1 | $5.74 | Available to order | 1 |
| 25 | 9AWV-152910-8000 ELECTRICAL REAR GEAR CASE MOTOR | ELECTRICAL REAR GEAR CASE MOTOR | 1 | $274.99 | Available to order | 1 |
| 26 | 0010-023008-0010 BOLT M6x18 | BOLT M6x18 M6x18 | 6 | — | Obsolete | View Details |
| 27 | 0180-014010 WIRE CLAMP | WIRE CLAMP | 6 | — | Obsolete | View Details |
